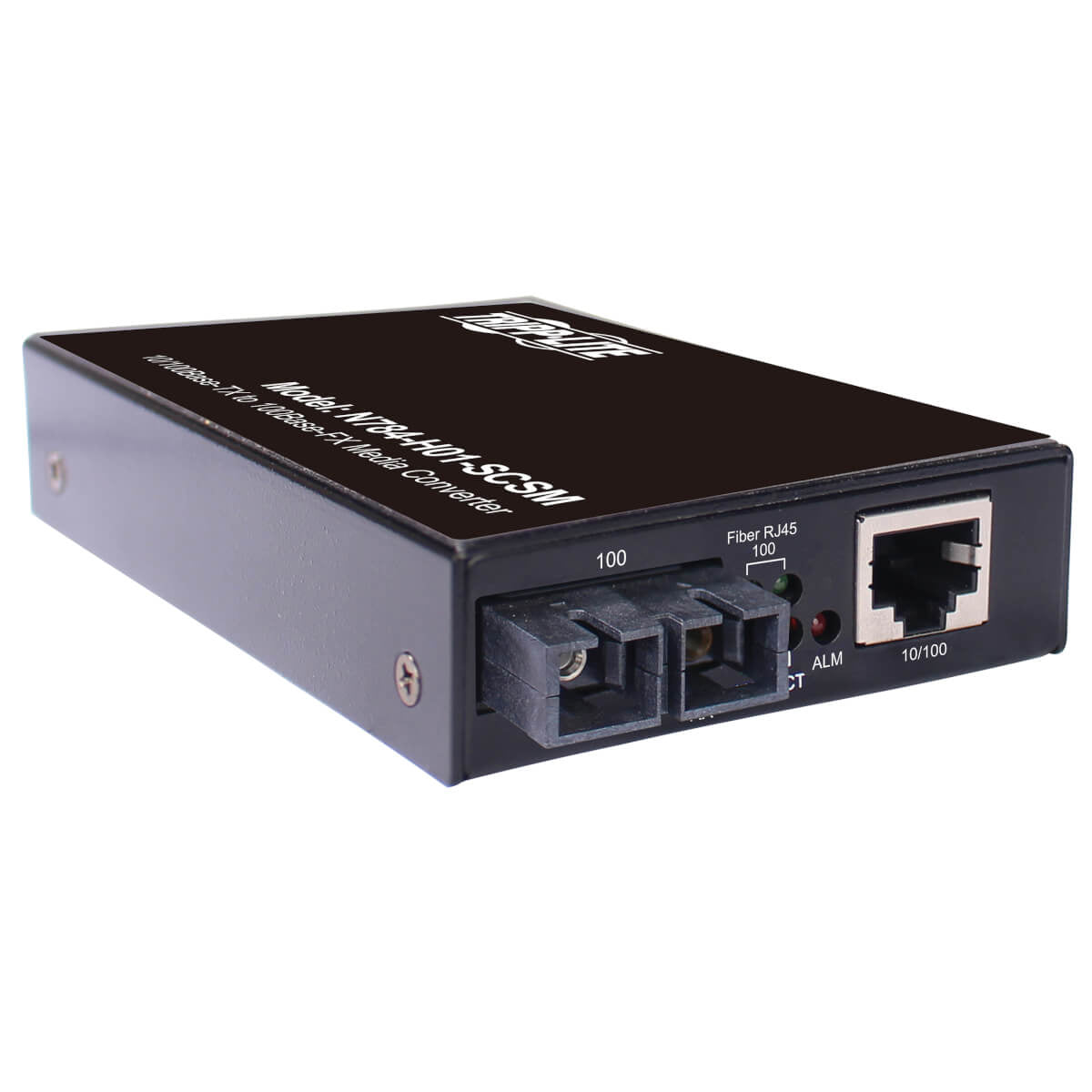

N784-H01-SCSM - Tripp Lite HARDENED COPPER TO FIBER MEDIA CONVERTER RJ45/SC SMF 10/100MBPS

Extends a Network Connection up to 30 km over SC Singlemode Fiber Optic Cable This network media converter converts a copper Ethernet signal to a singlemode fiber optic signal and extends it to a second network device up to 30 kilometers (18.6 miles) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N784-H01-SCSM with singlemode fiber cable to reach hubs, switches and other 10/100Base-TX/FX network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling. Monitor Your Installation with Link Fault Signaling and Loop Back Functions Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off. LEDs Indicate Installation Performance and Diagnostic Functions Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power. Protective Metal Housing Built to Withstand a Variety of Hazards The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting. Works in Tandem with Tripp Lite’s N785-CH12 Chassis House and power up to 12 Tripp Lite media converters, including the N784-H01-SCSM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation. TAA-Compliant for GSA Schedule Purchases The N784-H01-SCSM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Network
Fiber optic connector	ST
Auto-negotiation	Yes
Cable types supported	Cat5, Cat5e, Cat6, Fiber
Converter input interface	10Base-T, 100Base-TX
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter output interface	100Base-FX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	100 Mbit/s
Technical details
Housing material	Metal
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Internal	No
Master (outer) case GTIN (EAN/UPC)	10037332267020
Performance
Auto-negotiation	Yes
Wavelength-division multiplexing (WDM)	Yes
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	ST
DC-in jack	Yes
Indication
LED indicators	Yes
Design
DIN rail mounting	Yes
Country of origin	Taiwan
Housing material	Metal
LED indicators	Yes
Product colour	Black
Certification	CE, FCC, RoHS
Internal	No
Power
Input voltage	100 - 240 V
Input current	0.5 A
Output voltage	12 V
Output current	1.5 A
External power adapter	Yes
AC input frequency	50 - 60 Hz
Packaging content
Package type	Box
Quick installation guide	Yes
AC adapter included	Yes
Colour
Product colour	Black
Weight & dimensions
Width	2.91" (73.8 mm)
Depth	4.3" (109.2 mm)
Weight	8.47 oz (240 g)
Height	0.921" (23.4 mm)
Package depth	7.2" (182.9 mm)
Package width	9.17" (232.9 mm)
Package height	2.44" (62 mm)
Package weight	21.2 oz (600 g)
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Packaging data
Package type	Box
Package depth	7.2" (182.9 mm)
Package width	9.17" (232.9 mm)
Package height	2.44" (62 mm)
Package weight	21.2 oz (600 g)
Certificates
Certification	CE, FCC, RoHS
Logistics data
Master (outer) case width	15.4" (389.9 mm)
Master (outer) case length	19.7" (500.1 mm)
Master (outer) case height	14.4" (365 mm)
Master (outer) case gross weight	26.5 lbs (12 kg)
Products per master (outer) case	20 pc(s)
