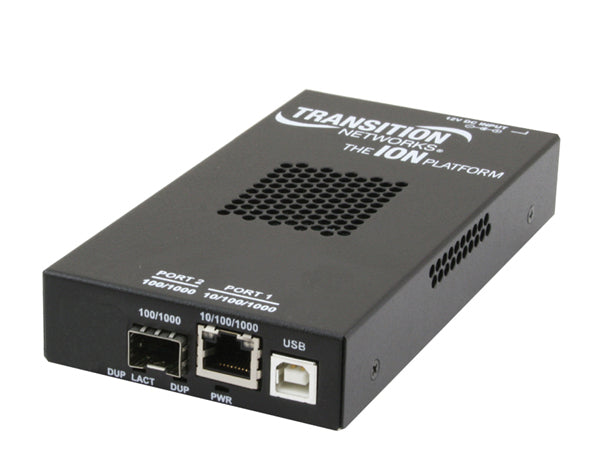

S3220-1014-NA - Transition Networks OAM RMT MNGED ION SA CNVTR

The ION 3220 Series of Network Interface Devices (NIDs) are a remotely managed product that offers IP or IP-Less management methods for secure delivery of Ethernet services for business and mobile backhaul applications. With MEF 9, 14 & 21 certification the ION 3220 Series ensures you are compliant with the latest standards. The ION 3220 Series is a 10/100/1000Mbps product with advance features including – IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support and bandwidth allocation.- 802.3ah Link OAM- 10 K Jumbo Frame Support- Two selectable Remote Management modes:-- IP-Based Remote Management-- In-Band Link OAM 802.3ah (remote device managed by local peer)- AutoCross™- Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.- Auto-Negotiation (802.3u)- Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.- Pause (IEEE 802.3xy)- Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.- Transparent Link Pass Through- Transparent Link Pass Through sends a link-loss signal over the fiber, instructing the remote converter to shut down the copper port—thus notifying the end device—while maintaining the fiber link between the two converters.- Far End Fault (FEF)- A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.- Remote Loopback- This feature puts a converter in a special mode that enables the device to loop back the signal from the RX port to the TX port on either media for testing and troubleshooting purposes.- Remote Firmware Upgrade- IEEE 802.1p QoS packet classification- Ipv4 IP TOS, DiffDerv and IPv6 traffic class QoS classification- IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs- VLAN Tunneling- DHCP client- SNTP- TFTP- Syslog- IEEE 802.1x Port based security- RADIUS client- RMON counters for each port- Bandwidth profiling- DMI Optical Management- Cable diagnostic function for TP ports- SSH- Telnet- Command Line Interface (CLI)- Web management- Focal Point Management- SNMP v1 & v2c- USB port for basic setup- Management VLAN
