TP-MS616 - Tycon Systems 16 PORT MIDSPAN INJ 802.3AF/AT GIGABIT

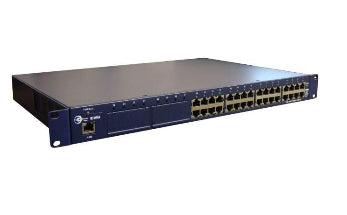

TP-MS616 Midspan POE InsertersThe TP-MS616 rack mount mid span High Power POE power sources are used for supplying POE and data to up to 16 devices from a central location such as an operations room. They can be powered from 100-240VAC 50/60Hz input or 48VDC Input. The POE devices feature a separate data-in port coupled with a data out/POE port. The POE function is fully IEEE802.3at/af compliant and Gigabit Ethernet compatible. The included PC software allows for configuration of the individual ports and for displaying port status through an RJ45 network connection. Ports can be enable/disabled and configured for forced POE output (Passive POE) or IEE802.3at/af detection. POE DC Voltage (55V) is supplied on pins 4,5 (V+) and 7,8 (V-). Maximum power output per port is 40W. The 1U rack mounting accommodates 19" racks with included brackets.
