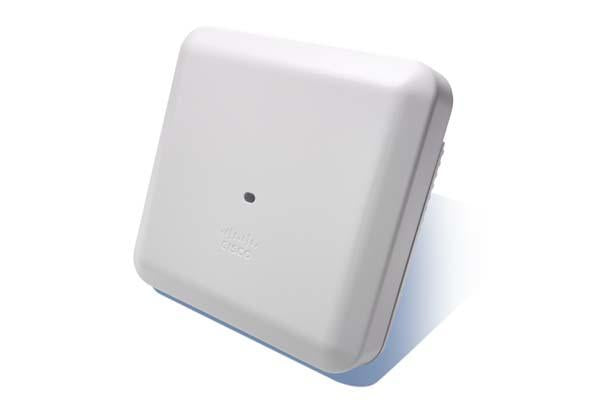

AIR-AP2802I-N-K9 - Cisco 802.11AC W2 AP W/ CA 4X4:3

The Cisco Aironet 2800 Series Wi-Fi access points are highly versatile and deliver the most functionality in the industry

For organizations paving the way for the new 802.11ac Wave 2 standard, the Cisco Aironet 2800 Series is the perfect solution. The access points go beyond getting ready for the new standard, providing the ultimate in flexibility and versatility.

For large enterprise organizations that rely on Wi-Fi to engage with customers, the 2800 Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage. This automation allows you to devote time to other pressing matters, secure in the knowledge that your Wi-Fi network is performing to its utmost potential.

The Aironet 2800 Series is packed with the features and capabilities that have made Cisco the industry leader, at a price point that is ideal for managing wireless growth, capacity, and coverage gaps in dense indoor environments.

802.11ac Wave 2 and Beyond

The Aironet 2800 Series extends 802.11ac speed and features to a new generation of smartphones, tablets, and high-performance laptops, providing a greater end-user experience. Whether your project involves wholesale changes to your current wireless network or upgrading your legacy Wi-Fi deployments (802.11a/b/g/n/ac wave 1 deployments), the 2800 Series can handle the job.

The 2800 Series supports 802.11ac Wave 2, providing a theoretical connection rate of up to 5.2 Gbps—that’s roughly 4x the rates offered by today’s high-end 802.11ac access points. The boost helps you stay ahead of the performance and bandwidth expectations of today’s mobile worker, who usually uses multiple Wi-Fi devices instead of just one. As such, users are adding proportionally larger traffic loads to the wireless LAN, which has outpaced Ethernet as the default enterprise access network.

High Density Experience

Building on the Cisco Aironet heritage of RF excellence, the 2800 Series access points run on a purpose-built, innovative chipset with a best-in-class RF architecture. This chipset provides a high-density experience for enterprise networks designed for mission-critical, high-performance applications.

The 2800 Series is a component of Cisco’s portfolio of flagship, 802.11ac-enabled access points, and delivers a robust mobility experience based on the following product features:

- 802.11ac Wave 2 with 4x4 multiuser multiple-input multiple-output (MU-MIMO) technology supporting three spatial streams. MU-MIMO enables access points to split spatial streams between client devices to maximize throughput.

With two radios built into each access point, the 2800 Series is more versatile than any access point currently on the market. These radios are outfitted with Flexible Radio Assignment, which means that the access points automatically self-optimize to better serve the environment. For example, one of the radios broadcasts its signal on the 5-GHz channel and the other sends out a 2.4-GHz signal. The access point understands the wireless environment and will automatically switch the 2.4-GHz signal to a 5-GHz signal, increasing the reliability of your Wi-Fi use. This setting automatically works in reverse too, the access point recognizes that the RF environment has changed as reverts changes back to its original configuration.

The access point also dynamically changes the radio settings based on the wireless environment. The 2800 Series Wave 2 access point will allow one of the radios to operate in Wireless Security Monitoring mode. Allowing you to detect wireless security threats, interference, and combat rogue access. This valuable information can be culled in an easy-to-understand matrix to inform you about your customers.

- Optimized AP Roaming to ensure that client devices associate with the access point in their coverage range that offers the fastest data rate available.

- Cisco ClientLink 4.0 technology to improve downlink performance to all mobile devices, including one-, two-, and three-spatial-stream devices on 802.11a/b/g/n/ac. At the same time, the technology improves battery life on mobile devices.

- Cisco CleanAir technology enhanced with 160-MHz channel support. CleanAir delivers proactive, high-speed spectrum intelligence across 20-, 40-, and 80-, and 160-MHz wide channels to combat performance problems due to wireless interference.

- MIMO equalization capabilities, which optimize uplink performance and reliability by reducing the impact of signal fade.



Specification:



Data transmission
Ethernet LAN data rates	100,1000 Mbit/s
Maximum data transfer rate	5200 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Firmware upgradeable	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.32, 5.745 - 5.825 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at
Ethernet LAN data rates	100,1000 Mbit/s
Channels quantity	24 channels
Channel bandwidth	160 MHz
Certification	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, EN 50155
Maximum data transfer rate	5200 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	1024 MB
Flash memory	256 MB
Wireless LAN features
Frequency band	2.412 - 2.462, 5.18 - 5.32, 5.745 - 5.825 GHz
Channels quantity	24 channels
Network
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at
Bandwidth
Channel bandwidth	160 MHz
Security
Cable lock slot	Yes
Security algorithms	802.1x RADIUS,AES,EAP-FAST,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA,WPA2
Certificates
Certification	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, EN 50155
Memory
Internal memory	1024 MB
Flash memory	256 MB
Features
2.4 GHz	Yes
5 GHz	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Frequency band	2.412 - 2.462, 5.18 - 5.32, 5.745 - 5.825 GHz
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3at
Ethernet LAN data rates	100,1000 Mbit/s
Channels quantity	24 channels
Channel bandwidth	160 MHz
Maximum data transfer rate	5200 Mbit/s
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Data unit aggregation	A-MSDU, A-MPDU
Cyclic Shift Diversity (CSD)	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Internal memory	1024 MB
Flash memory	256 MB
Management features
Firmware upgradeable	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
LED indicators	Yes
Certification	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1, EN 50155
Cable lock slot	Yes
Cable lock slot type	Kensington
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Firmware upgradeable	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-30 - 70 °C
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 180000" (0 - 4572 m)
Indication
LED indicators	Yes
Software
Maximal-Ratio Combining (MRC)	Yes
Dynamic Frequency Selection (DFS)	Yes
Data unit aggregation	A-MSDU, A-MPDU
Cyclic Shift Diversity (CSD)	Yes
Weight & dimensions
Width	8.66" (220 mm)
Depth	8.68" (220.4 mm)
Weight	3.53 lbs (1.6 kg)
Height	2.17" (55.1 mm)
Packaging data
Number of products included	1 pc(s)
Packaging content
Number of products included	1 pc(s)
