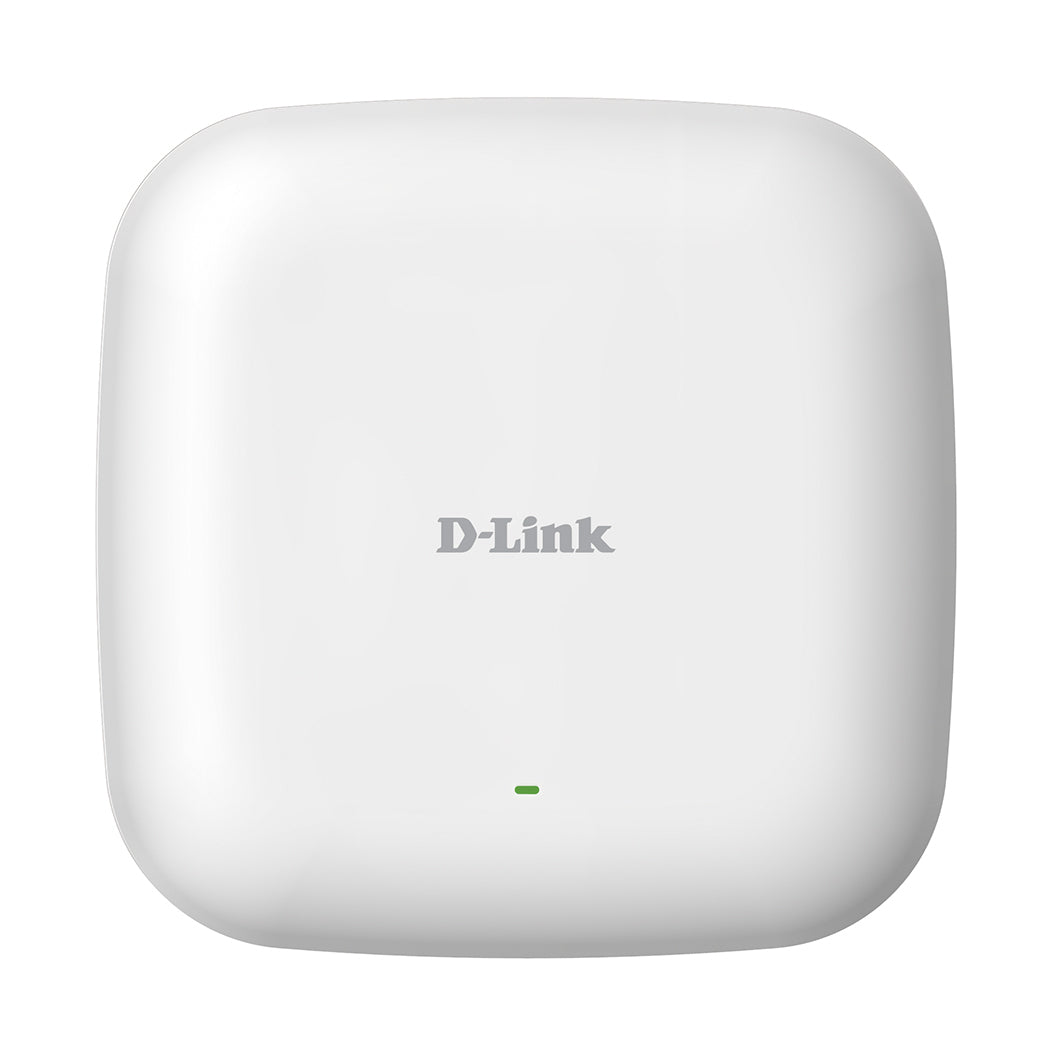

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC.
Blazing Wireless Wave 2 AC Performance The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with maximum wireless signal rates of up to 400 Mbps (256-QAM) over the 2.4 GHz band, and 900 Mbps over the 5 GHz band1. This, coupled with support for the Wi-Fi Multimediaâ„¢ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2610 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2610 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2610 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.
Versatile Access Point Functionality The DAP-2610 allows network administrators to deploy a highly manageable and extremely robust simultaneous dual-band wireless network. The DAP-2610 can provide optimal wireless coverage over either the 2.4 GHz (802.11b, 802.11g, and 802.11n) or the 5 GHz (802.11a, 802.11n, and 802.11ac) bands. The DAP-2610 can be ceiling mounted, wall mounted, or placed on a desktop to meet any wireless demands. For advanced installations, the DAP-2610 has integrated 802.3af Power over Ethernet (PoE) support, allowing the device to be installed in areas where power outlets are not readily available.
Security To help maintain a secure wireless network, the DAP-2610 supports both Personal and Enterprise versions of WPA and WPA2 (802.11i), with support for RADIUS server backend and a built-in internal RADIUS server allowing users to create their accounts within the device itself. This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling for further protection of your wireless network. The DAP-2610 includes support for up to eight VLANs per band, allowing multiple SSIDs to be implemented and further segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, the DAP-2610 supports Network Access Protection (NAP), a feature of Windows Server® 2008, allowing network administrators to define multiple levels of network access based on individual client’s needs.
Multiple Operation Modes To maximize total return on investment, the DAP-2610 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client. With WDS support, network administrators can set up multiple DAP-2610s throughout a facility and configure them to bridge with one another, while also providing network access to individual clients. The DAP-2610 also features advanced features such as load balancing and redundancy, for fail-safe wireless connectivity.
Network Management Network administrators have multiple options for managing the DAP-2610, including Web (HTTP), Secure Socket Layer (SSL), Secure Shell (SSH), and Telnet. For advanced network management, administrators can use the D-Link Central Wi-Fi Manager to configure and manage multiple access points from a single location. In addition, the D-Link Central Wi-Fi Manager provides network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. The DAP-2610 also has a wireless scheduling feature, turning off wireless functionality when it is not needed to save power. With simultaneous dual-band functionality, PoE support, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2610 provides small to medium business and enterprise environments with a business-class solution for deploying a wireless network.
Specification:
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1700 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| Frequency band |
2.4 - 5 GHz |
| Web-based management |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Certification |
FCC, CE, UL |
| Maximum data transfer rate |
1700 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Mean time between failures (MTBF) |
341897 h |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Wireless LAN features |
|---|
| Frequency band |
2.4 - 5 GHz |
| Network |
|---|
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Management features |
|---|
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Certificates |
|---|
| Certification |
FCC, CE, UL |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Frequency band |
2.4 - 5 GHz |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Maximum data transfer rate |
1700 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Mean time between failures (MTBF) |
341897 h |
| Maximum data transfer rate (2.4 GHz) |
600 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1700 Mbit/s |
| Virtual LAN features |
Multiple VXLAN (MUX VLAN) |
| Security |
|---|
| Number of SSID supported |
16 |
| Auto Wireless Distribution System (WDS) |
Yes |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA2 |
| MAC address filtering |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Service Set Identifier (SSID) features |
SSID broadcast |
| Protocols |
|---|
| Management protocols |
Telnet, SSH |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Cabling technology |
10/100/1000Base-T(X) |
| Power |
|---|
| Power consumption (max) |
15.5 W |
| Power over Ethernet (PoE) |
Yes |
| Input current |
2.5 A |
| AC input voltage |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| LED indicators |
Power, Status |
| Certification |
FCC, CE, UL |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna gain level (max) |
4.8 dBi |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Indication |
|---|
| LED indicators |
Power, Status |
| Weight & dimensions |
|---|
| Width |
7.48" (190 mm) |
| Depth |
7.48" (190 mm) |
| Weight |
19.5 oz (551.6 g) |
| Height |
1.72" (43.7 mm) |
