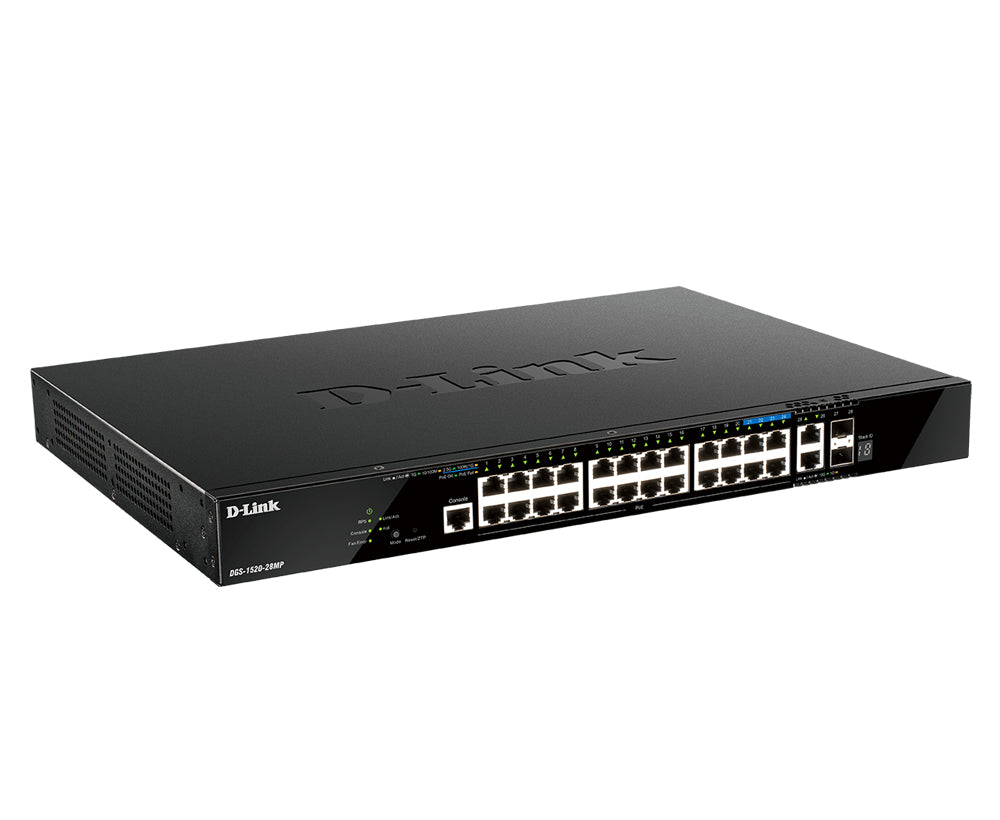

The DGS-1520 Series, a new generation of Lite Layer 3 Stackable Smart Managed Switches, includes four 10 GB ports for uplink or stacking up to a total of eight switches with a total of 80 Gigabit stacking bandwidth. Designed for effortless multi-site network deployments with Zero Touch Provisioning, the DGS-1520 Series is also powerful enough for server and storage applications. For unrestricted Wi-Fi 6 edge device capabilities, PoE models offer four 2.5 GB Base-T ports for Multi-Gigabit connectivity. For SMBs with expanding networks and significant bandwidth growth, the DGS-1520 effortlessly adds highly cost-effective 10 GB connectivity to ensure seamless aggregation between access and core layers. -
Stackable Smart Gigabit Stack up to eight switches for high-density Gigabit aggregation -
Zero Touch Provisioning Effortless multi-site deployment -
Multi-Gigabit Ports Four 2.5 GB Base-T ports for Wi-Fi 6 APs (PoE models) -
Flexible Stacking or Uplink 10 GB Base-T and/or SFP+ (fiber) ports for stacking or uplink -
High Capacity Up to 188 Gbps switching capacity per switch -
PoE Capable Up to 370 W PoE output per switch -
Power Redundancy Connect with DPS-520 for power redundancy (non-PoE models) -
Advanced Manageability Supports dynamic routing and selective Q-in-Q tagging
High Availability The DGS-1520 Series brings reliable, yet affordable, Gigabit connectivity with four 10-Gigabit ports (two 10G Base-T and two 10G SFP+) for high-speed uplink or stacking. Boost your network performance, simplify your network infrastructure, improve bandwidth and reduce cabling complexity.
Zero Touch Provisioning Zero Touch provisioning is perfect for multi-site network expansions. Simply preconfigure your network settings in a centralized location, then install the DGS-1520 switches for effortless deployments.
Multi-Gigabit Support Multi-Gigabit ports on the DGS-1520 Series switch (PoE models only) support 100 MB / 1 GB / 2.5 GB speeds to maximize various device capabilities, such as Wi-Fi 6 (802.11ax) access points, which can often exceed single Gigabit speeds.
Powerful Stacking Capability Stack up to eight DGS-1520 switches with a total of 80 GB stacking bandwidth using hybrid mode (copper and/or fiber), increasing flexibility, scalability, and cost effectiveness for SMBs.
Minimize Outages with Power Redundancy For a more resilient network infrastructure, connect up to four DGS-1520 switches (non-PoE models only) with the DPS-520 PoE redundant power supply system through the management port and actively back-up four devices to significantly reduce power redundancy costs.
Auto Discovery: Automatically detect power requirements of connected PD devices.
RPS Port Priority: Enables administrators to define RPS failover policy.
Status Reporting: Administrators can connect via web browser to remotely monitor DPS-520 status.
Low Network Latency, High PoE Budget High Gigabit-port density with up to 188 GB total switching capacity, and up to 30 W per port with 370 W total PoE budget to power your PoE-enabled devices.
Enhanced Manageability for Peace of Mind D-View 7 For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
D-Link Network Assistant Built upon a highly-intuitive user interface, the D-Link Network Assistant (DNA) simplifies device configuration using the D-Link Discovery Protocol, auto-detecting supported devices and displaying them for port-level configurations.
Specification:
| Network |
|---|
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Data transmission |
|---|
| Multicast Listener Discovery (MLD) snooping |
v1/v2 |
| Jumbo frames |
12288 |
| MAC address table |
16384 entries |
| Switching capacity |
176 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
130.95 Mpps |
| Optical fiber |
|---|
| Fiber optic connector |
SFP+ |
| Performance |
|---|
| Stackable |
Yes |
| Physical stacking (units) |
8 |
| Virtual stacking (units) |
32 |
| Noise level |
56.8 dB |
| Mean time between failures (MTBF) |
364888 h |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Physical stacking (units) |
8 |
| Virtual stacking (units) |
32 |
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| Noise level |
56.8 dB |
| Mean time between failures (MTBF) |
364888 h |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| Switch layer |
L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
50 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Fiber ports quantity |
2 |
| Fiber optic connector |
SFP+ |
| 10G Ethernet (copper) ports quantity |
2 |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| IGMP snooping |
Yes |
| Multicast features |
|---|
| Multicast Listener Discovery (MLD) snooping |
v1/v2 |
| Protocols |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Routing protocols |
OSPF, RIP, RIPng, VRRP |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Power |
|---|
| Power consumption (max) |
51.2 W |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Heat dissipation |
174.6 BTU/h |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
