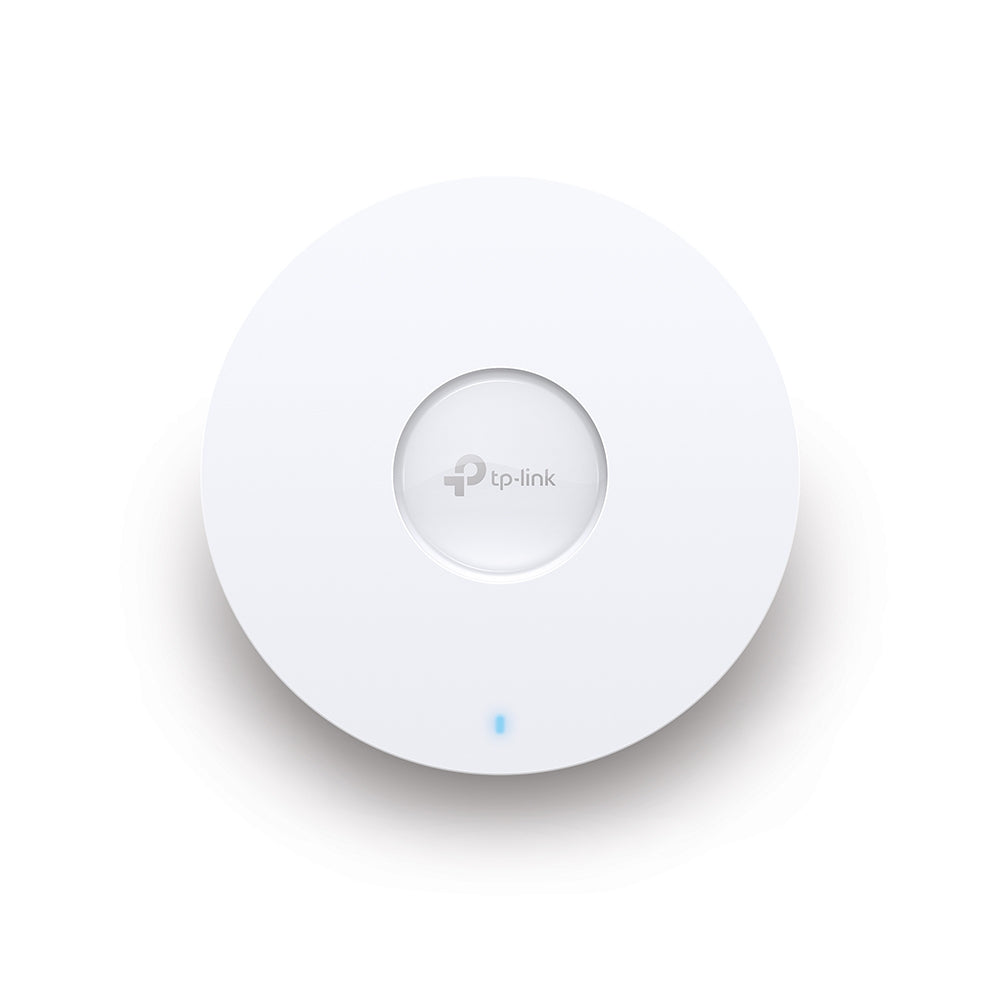

TP-Link TP-LINK EAP610 ULTRA-SLIM OMADA TRUE WIFI 6 AX1800 WIRELESS GIGABIT BUSINESS ACC

What This Product Does EAP610 is an AX1800 Ceiling Mount WiFi 6 Access Point, and is ideal for networking upgrade to WiFi 6, such as offices, campuses, retails, and hotels. With WiFi 6 technology, it provides faster speeds, less lag, and higher capacity. The advanced functions including Omada Mesh, Seamless Roaming, MU-MIMO, Captive Portal further boost network security, efficiency, and coverage. Additionally, this product is integrated into Omada Software Defined Networking (SDN) system, and can be centrally managed with cloud access via Omada Hardware Controller or Software Controller. The ability to control, adjust, and visualize the entire network from any connected PC makes centralized business Wi-Fi management efficient than ever before. Upgrade to WiFi 6, Power up Your Business WiFi 6 brings faster speeds, less lag, and higher capacity. - Superior WiFi 6 Speeds Upgrade to WiFi 6 with speeds up to 1775 Mbps (simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz) brings 50% faster speeds than WiFi 5†. In addition, every application feels more fluid with drastically improved WiFi speeds, powered by 4 spatial streams, 1024 QAM, and longer OFDM symbol times. - Higher Efficiency for More Devices WiFi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments such as typical office spaces, lodging, and small clinics. Enjoy faster speeds on more devices with less lag. Software Defined Networking (SDN) with Cloud Access The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. - Hardware or Software Controllers - Centralized Cloud Management - Multi-Site Cloud Management - Intelligent Monitoring Easy Deployment & Higher Performance by Omada Mesh - Easy Pairing, Less Wiring With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-towire areas. - Optimized Network Performance Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when an AP is disrupted. Always Stay Smooth with Fast Roaming Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. Easy to Install with Refined Industrial Design and PoE Support EAP610 supports both DC and 802.3at PoE+ for flexible installations. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and easy. Boosted Network Security and Efficiency - Secure Guest Network with Up to 16 SSIDs Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management. - Captive Portal with Facebook WiFi and SMS Login Captive portal (including SMS, Facebook WiFi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. - WPA3 for Worry-Free Open Public Networks With advanced enterprise security and Enhanced Open™, WPA3 provides more data security for previously unsecured and open WiFi hotspots. - Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections. - Load Balance Automatically moves dual band devices onto the wider 5GHz band for faster connections. - Airtime Fairness Increases average network throughput in heavily congested environments.



Specification:



Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Syslog	Yes
Web-based management	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management platform	Omada
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Band steering	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Syslog	Yes
Web-based management	Yes
Management platform	Omada
Features
2.4 GHz	Yes
5 GHz	Yes
Wireless isolation	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1201 Mbit/s
Automatic channel scanning	Yes
Band steering	Yes
Security
Number of SSID supported	16
Security algorithms	WEP, WPA, WPA2, WPA3
MAC address filtering	Yes
Protocols
Management protocols	SNMP v1/v2c
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Input current	0.5 A
AC input voltage	8 V
Design
Placement	Pole, Wall
Product colour	White
Antenna
Antenna type	Internal
Antenna gain level (max)	5 dBi
Antenna features	Integrated antenna
Technical details
Harmonized System (HS) code	85176990
Software
Automatic channel scanning	Yes
Weight & dimensions
Width	11" (280.4 mm)
Depth	4.19" (106.5 mm)
Height	2.24" (56.8 mm)
Packaging data
Mounting kit	Yes
PoE adapter included	Yes
Number of products included	1 pc(s)
Packaging content
Mounting kit	Yes
PoE adapter included	Yes
Number of products included	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
