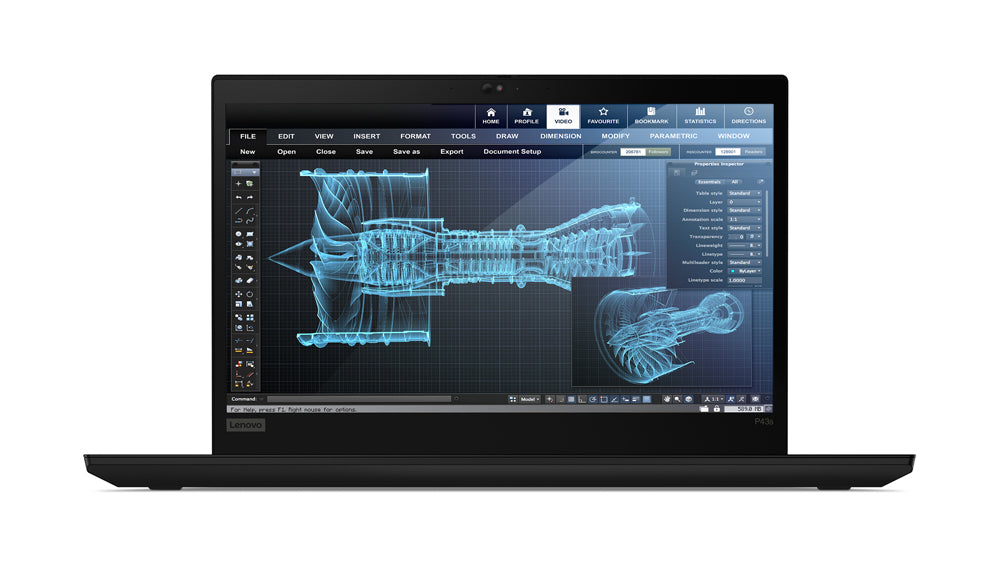

20RH003SUS - Lenovo P43S,W10P,I7,16GB,512GB,3YR

Powerful learning tool for computer-aided design The ThinkPad P43s mobile workstation is ideal for light-duty computer-aided design (CAD) in fields such as architecture or engineering, as well as technical education such as STEM. Its 8th Gen Intel® Core™ processor is fast and powerful, while its NVIDIA® Quadro® P520 GPU with 2GB DDR5 gives it extra kick when rendering drawings. Superfast PCIe solid-state storage and up to 48GB of DDR4 memory ensure no more lag time. This workstation also includes ISV certification from major vendors such as Autodesk®, Siemens NX, SketchUp, SolidWorks®, and more. See your renderings in vivid detail Opt for a WQHD (2560 x 1440), 500-nit display for vibrant color, with 100% Adobe color gamut and Dolby Vision™ high dynamic range (HDR) technology, for true-to-life images and video. Enjoy increased brightness, expanded contrast, and refined detail, all in brilliant colors. Don’t miss a sound User-facing speakers and dual far field mic help provide a premium audio experience. Dolby Audio™ delivers a rich, powerful sound that adjusts, to deliver home theatre quality in a virtual surround sound experience. This is listening, made easy. Connected and powered for mobility Take the ThinkPad P43s mobile workstation with you anywhere, for as long as you need to. You can also add the option of WWAN connectivity and take it anywhere cellular service can reach. With a battery that lasts up to 15.4 hours, you can stay for a while. Built to withstand almost anything The ThinkPad P43s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks, to ensure it will run in extreme conditions. You can rely on it from the Arctic wilderness to desert dust storms, from zero gravity to spills and drops. Its durability will keep it working for you. Keeps your data and your privacy safe This mobile workstation’s security features protect your business-critical info. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	250 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Native aspect ratio	16:9
Processor
Processor generation	8th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	6 MB
Processor frequency	1.6 GHz
Processor model	i5-8365U
Processor boost frequency	4.1 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Configurable TDP-up frequency	1.9 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	256 GB
Total SSDs capacity	256 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	2 GB
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3EA0
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 620
Discrete graphics card model	NVIDIA Quadro P520
Discrete graphics memory type	GDDR5
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	2 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193555
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	14.7 h
Battery capacity (Watt-hours)	50 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	13" (329 mm)
Depth	8.94" (227 mm)
Height	0.705" (17.9 mm)
Weight	3.42 lbs (1.55 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
Audio system	Dolby Audio Premium
3D	No
AC adapter included	Yes
