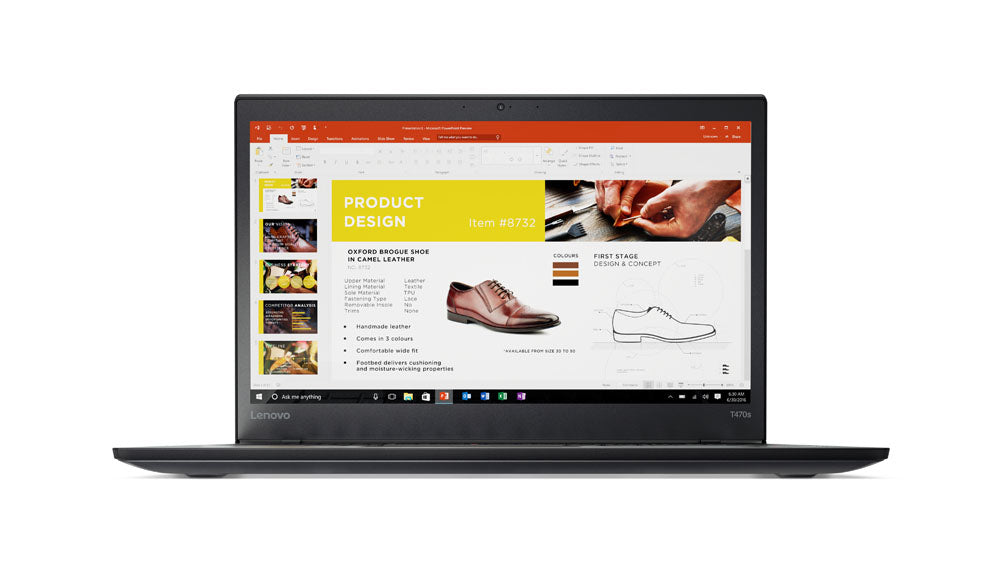

20HF004YUS - Lenovo T470S 20G 512 W10P

Business-Ready. And Then Some. Light and thin, the ThinkPad T470s is designed to boost productivity, wherever your business takes you. Powered by a high-performance processor and operating system, this rugged laptop boasts an all-day battery life, plenty of storage, and oodles of RAM. It can entertain on the go too—with a 14" FHD display, stereo speakers, and hi-res webcam. All of this, plus the legendary ThinkPad reliability and support.



Specification:



Design
Product type	Notebook
Market positioning	Business
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Display
Display surface	Matt
Panel type	IPS
LED backlight	Yes
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Screen shape	Flat
Native aspect ratio	16:9
Processor
Stepping	H0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	OPI
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x2+2x1,1x4,2x2,4x1
Maximum number of PCI Express lanes	12
Configurable TDP-down	7.5 W
ECC supported by processor	No
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	3 MB
Processor frequency	2.5 GHz
Processor model	i5-7200U
Processor boost frequency	3.1 GHz
Processor cores	2
Processor threads	4
System bus rate	4 GT/s
Processor socket	BGA 1356
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	7th gen Intel® Core™ i5
Configurable TDP-up frequency	2.7 GHz
Configurable TDP-up	25 W
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2133 MHz
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	128 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1000 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x5916
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® HD Graphics 620
Audio
Audio chip	Realtek ALC3268
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution (numeric)	1 MP
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
DVI port	No
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
Keyboard
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Technical details
Power cord included	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Market positioning	Business
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Carbon fiber, Magnesium
Form factor	Clamshell
Product colour	Black
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	42 x 24 mm
Processor code	SR2ZU
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Conflict-Free processor	Yes
Processor ARK ID	95443
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Power
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Sustainability
Sustainability certificates	RoHS, EPEAT Gold
Weight & dimensions
Width	13" (331 mm)
Depth	8.93" (226.8 mm)
Height (front)	0.665" (1.69 cm)
Height (rear)	0.74" (1.88 cm)
Weight	2.91 lbs (1.32 kg)
Packaging data
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
Packaging content
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1000 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter	Yes
