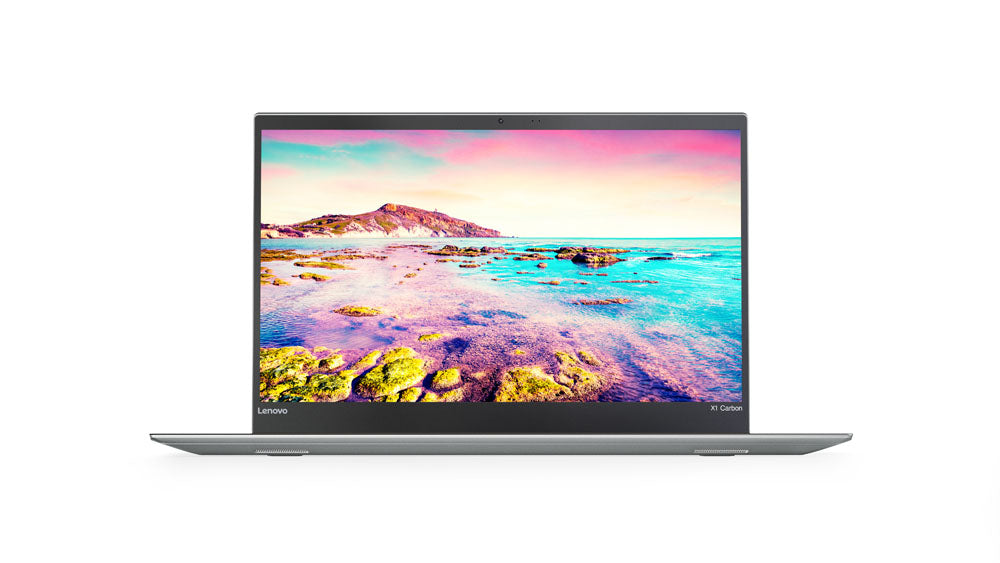

20HR000LUS - Lenovo THINKPAD X1 CARBON 5TH GENERATION, INTEL CORE I5-7300U (2.60GHZ, 3MB), 14.0 1920

Carbon-Tough Yet Ultralight. Featuring a carbon-fiber reinforced chassis, the new X1 Carbon is just as durable as its predecessor, and it features a smaller footprint making it our lightest, thinnest X1 Carbon ever. Yet it's packed with more power than ever: Windows 10 Pro, 7th generation Intel® Core™ processors, lightning-fast Thunderbolt 3, and a 14" Quad- HD display. All that, with our legendary ThinkPad heritage—and support. Get Used to Checking Your Bag At just 1.14 kg / 2.51 lbs and 16 mm / 0.62 inches thin, the new X1 Carbon is our smallest and thinnest business Ultrabook™ yet. You might find yourself checking a lot to make sure it's really there. Sacrifice Nothing For Portability With an 8% smaller footprint than previous generations, the new X1 Carbon is easier to hold, to carry, and to take your work on the go. But the best part? We’ve packed in even more processing power, more memory, and more storage to drive your business. Plus we managed to keep the 14″ display—now Quad-HD—in a 13″ chassis. Now that’s innovation. We’ve Got Your Back With four layers of carbon-fiber reinforced chassis and a magnesium alloy roll-cage for added strength, we’ve engineered the new X1 Carbon to handle whatever comes your way. From spilled drinks, to drops and knocks, this laptop is tested against 12 military-grade requirements and passes more than 200 durability tests. Whether it’s a day at the office, or a day on the move, X1 Carbon has you covered. Up & Running Even If You’re Not Even when WiFi is out of range, the new X1 Carbon has Qualcomm® Snapdragon™ X7 LTE-A available—so you’ll always have connectivity and access to all your data and apps in the cloud. From 0 to 80 in 60 The X1 Carbon delivers up to 15.5 hours of battery life. And if you’re running low, the rapid charging feature provides 80% capacity in just an hour. So a lunch break or a layover can easily boost your battery up to more than 12 hours. Prepare to Be Thunderstruck The X1 Carbon includes Intel® Thunderbolt™ 3—the technology that brings lightning-fast Thunderbolt to USB-C at speeds up to 40 Gbps. Connect a cable from your USB-C port to a Thunderbolt 3-enabled device, and get four times the data and twice the video bandwidth of any other port type, while also supplying power. So you get Thunderbolt, USB-C, and DisplayPort. Plus, you can even output to two 4K displays with the Thunderbolt Dock. Like Magic, Really Imagine walking up to your desk with your X1 Carbon and automatically connecting to your monitor and external keyboard and mouse. Or walking into a conference room and, almost instantly, your presentation is up on the display, with the speakers fully connected. With the ThinkPad WiGig Dock, there's no fumbling for cables or wired connectivity. No Re-Inventing the Wheel Lenovo has shipped more than a 100-million ThinkPads, all with our award-winning, ergonomic, highly accurate keyboard. And the X1 Carbon delivers that same legendary interaction that IT pros and end-users alike have come to love and expect from ThinkPad—all day, every day. Go Ahead—Forget Your Password! With Windows Hello, you'll never have to remember another password. Simply touch the fingerprint scanner, or use the new infrared camera with advanced facial recognition technology to log in to your laptop. Less Really Is More X1 Carbon is available with Microsoft Windows 10 Pro Signature Edition. No more trialware or unwanted apps. No more distractions—and easy provisioning for IT pros. Classic or Modern—You Decide Be it the traditional Black refined look of ThinkPad, or the modern appeal of Silver, the new X1 Carbon is available in two colors to suit your style. We Mean ALWAYS Covered X1 Carbon comes with a standard worldwide warranty. That means that you can get help in 160 countries. We work around the world so your business can too.



Specification:



Design
Product type	Notebook
Market positioning	Business
Form factor	Clamshell
Product colour	Black
Display
HD type	Full HD
Display surface	Matt
Panel type	IPS
LED backlight	Yes
3D	No
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Screen shape	Flat
Native aspect ratio	16:9
Processor
Processor generation	7th gen Intel® Core™ i7
Stepping	H0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	OPI
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
Processor series	Intel Core i7-7600 Mobile Series
PCI Express slots version	3.0
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
Maximum number of PCI Express lanes	12
Configurable TDP-down	7.5 W
ECC supported by processor	No
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	4 MB
Processor frequency	2.8 GHz
Processor model	i7-7600U
Processor boost frequency	3.9 GHz
Processor cores	2
Processor threads	4
System bus rate	4 GT/s
Processor socket	BGA 1356
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2.9 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	8 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	1866 MHz
Maximum internal memory	8 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.4
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5916
On-board graphics card family	Intel® HD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 620
Discrete graphics card model	Not available
Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Optical drive
Optical drive type	No
LightScribe	No
Network
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.1
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
DVI port	No
Microphone in	No
S/PDIF out port	No
Combo headphone/mic port	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Market positioning	Business
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Smart Cache	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	42 x 24 mm
Processor code	SR33Z
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Embedded options available	Yes
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Conflict-Free processor	Yes
Processor ARK ID	97466
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	3
Battery life (max)	15.5 h
Battery capacity (Watt-hours)	57 Wh
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	12.7" (323.5 mm)
Depth	8.55" (217.1 mm)
Height	0.628" (15.9 mm)
Weight	2.49 lbs (1.13 kg)
Packaging data
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card	Yes
LightScribe	No
3D	No
AC adapter included	Yes
