Description

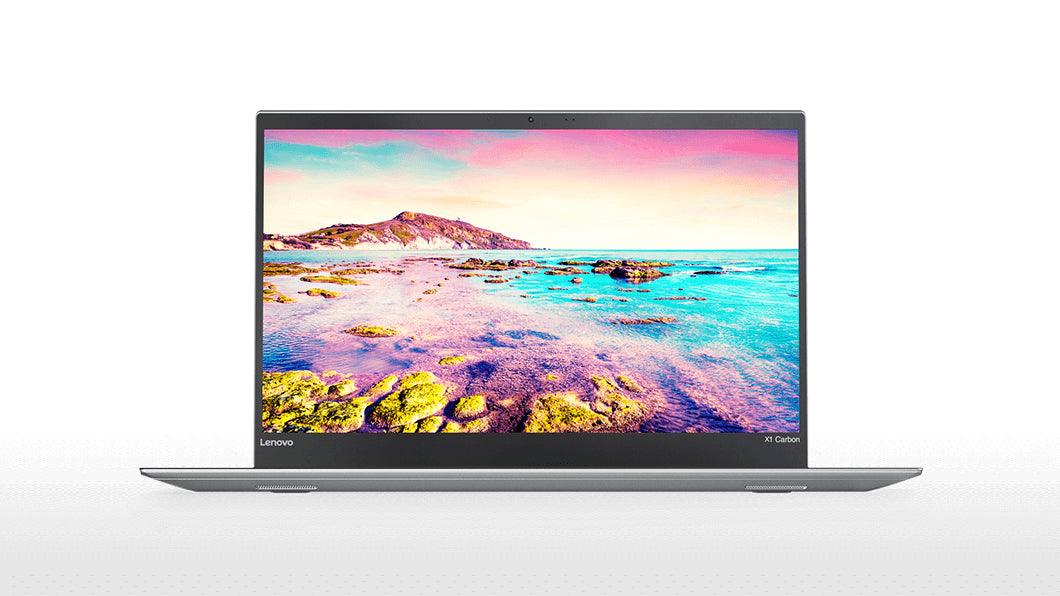

Carbon-Tough Yet Ultralight. Featuring a carbon-fiber reinforced chassis, the new X1 Carbon is just as durable as its predecessor, and it features a smaller footprint making it our lightest, thinnest X1 Carbon ever. Yet it's packed with more power than ever: Windows 10 Pro, 7th generation Intel® Core™ processors, lightning-fast Thunderbolt 3, and a 14" Quad- HD display. All that, with our legendary ThinkPad heritage—and support. Get Used to Checking Your Bag At just 1.14 kg / 2.51 lbs and 16 mm / 0.62 inches thin, the new X1 Carbon is our smallest and thinnest business Ultrabook™ yet. You might find yourself checking a lot to make sure it's really there. Sacrifice Nothing For Portability With an 8% smaller footprint than previous generations, the new X1 Carbon is easier to hold, to carry, and to take your work on the go. But the best part? We’ve packed in even more processing power, more memory, and more storage to drive your business. Plus we managed to keep the 14″ display—now Quad-HD—in a 13″ chassis. Now that’s innovation. We’ve Got Your Back With four layers of carbon-fiber reinforced chassis and a magnesium alloy roll-cage for added strength, we’ve engineered the new X1 Carbon to handle whatever comes your way. From spilled drinks, to drops and knocks, this laptop is tested against 12 military-grade requirements and passes more than 200 durability tests. Whether it’s a day at the office, or a day on the move, X1 Carbon has you covered. Up & Running Even If You’re Not Even when WiFi is out of range, the new X1 Carbon has Qualcomm® Snapdragon™ X7 LTE-A available—so you’ll always have connectivity and access to all your data and apps in the cloud. From 0 to 80 in 60 The X1 Carbon delivers up to 15.5 hours of battery life. And if you’re running low, the rapid charging feature provides 80% capacity in just an hour. So a lunch break or a layover can easily boost your battery up to more than 12 hours. Prepare to Be Thunderstruck The X1 Carbon includes Intel® Thunderbolt™ 3—the technology that brings lightning-fast Thunderbolt to USB-C at speeds up to 40 Gbps. Connect a cable from your USB-C port to a Thunderbolt 3-enabled device, and get four times the data and twice the video bandwidth of any other port type, while also supplying power. So you get Thunderbolt, USB-C, and DisplayPort. Plus, you can even output to two 4K displays with the Thunderbolt Dock. Like Magic, Really Imagine walking up to your desk with your X1 Carbon and automatically connecting to your monitor and external keyboard and mouse. Or walking into a conference room and, almost instantly, your presentation is up on the display, with the speakers fully connected. With the ThinkPad WiGig Dock, there's no fumbling for cables or wired connectivity. No Re-Inventing the Wheel Lenovo has shipped more than a 100-million ThinkPads, all with our award-winning, ergonomic, highly accurate keyboard. And the X1 Carbon delivers that same legendary interaction that IT pros and end-users alike have come to love and expect from ThinkPad—all day, every day. Go Ahead—Forget Your Password! With Windows Hello, you'll never have to remember another password. Simply touch the fingerprint scanner, or use the new infrared camera with advanced facial recognition technology to log in to your laptop. Less Really Is More X1 Carbon is available with Microsoft Windows 10 Pro Signature Edition. No more trialware or unwanted apps. No more distractions—and easy provisioning for IT pros. Classic or Modern—You Decide Be it the traditional Black refined look of ThinkPad, or the modern appeal of Silver, the new X1 Carbon is available in two colors to suit your style. We Mean ALWAYS Covered X1 Carbon comes with a standard worldwide warranty. That means that you can get help in 160 countries. We work around the world so your business can too.
Specification:
Design | |
---|---|
Intel segment tagging | Enterprise, Small Business |
Product type | Hybrid (2-in-1) |
Market positioning | Business |
Housing material | Carbon fiber |
Form factor | Convertible (Folder) |
Product colour | Silver |
Display | |
HD type | Full HD |
Display surface | Gloss |
Panel type | IPS |
LED backlight | Yes |
Touchscreen | Yes |
Touch technology | Multi-touch |
Touchscreen type | Capacitive |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 14" |
Screen shape | Flat |
Native aspect ratio | 16:9 |
Processor | |
Stepping | H0 |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor codename | Kaby Lake |
Bus type | OPI |
Tjunction | 100 °C |
Thermal Design Power (TDP) | 15 W |
Processor series | Intel Core i5-7300 Mobile Series |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
Maximum number of PCI Express lanes | 12 |
Configurable TDP-down | 7.5 W |
ECC supported by processor | No |
Configurable TDP-down frequency | 0.8 GHz |
Processor cache type | Smart Cache |
Conflict-Free processor | Yes |
Processor cache | 3 MB |
Processor frequency | 2.6 GHz |
Processor model | i5-7300U |
Processor boost frequency | 3.5 GHz |
Processor cores | 2 |
Processor threads | 4 |
System bus rate | 4 GT/s |
Processor socket | BGA 1356 |
Motherboard chipset | Intel SoC |
Processor manufacturer | Intel |
Processor family | 7th gen Intel® Core™ i5 |
Configurable TDP-up frequency | 2.7 GHz |
Configurable TDP-up | 25 W |
Memory | |
Memory form factor | On-board |
Internal memory | 8 GB |
Internal memory type | LPDDR3-SDRAM |
Memory clock speed | 1866 MHz |
Maximum internal memory | 16 GB |
Maximum internal memory (64-bit) | 16 GB |
Storage | |
SSD form factor | M.2 |
Storage media | SSD |
Optical drive type | No |
Number of SSDs installed | 1 |
SSD capacity | 256 GB |
SSD interface | PCI Express |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash) |
Total storage capacity | 256 GB |
Graphics | |
Discrete graphics adapter | No |
On-board graphics adapter dynamic frequency (max) | 1100 MHz |
On-board graphics adapter base frequency | 300 MHz |
Maximum on-board graphics adapter memory | 32 GB |
On-board graphics adapter OpenGL version | 4.4 |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter ID | 0x5916 |
On-board graphics adapter family | Intel® HD Graphics |
On-board graphics adapter | Yes |
On-board graphics adapter model | Intel® HD Graphics 620 |
Discrete graphics adapter model | Not available |
Audio | |
Audio chip | Conexant CX11771 |
Audio decoders | Dolby Audio Premium |
Number of built-in speakers | 2 |
Speakers manufacturer | Conexant |
Speaker power | 2 W |
Built-in microphone | Yes |
Camera | |
Front camera signal format | 720p |
Front camera | Yes |
Front camera resolution (numeric) | 1 MP |
Optical drive | |
Optical drive type | No |
LightScribe | No |
Network | |
Mobile network connection | Yes |
Mobile network generation | 4G |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
Ethernet LAN | No |
Bluetooth | Yes |
Bluetooth version | 4.1 |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
HDMI ports quantity | 1 |
DVI port | No |
Microphone in | No |
S/PDIF out port | No |
Combo headphone/mic port | Yes |
Docking connector | No |
Mini DisplayPorts quantity | 1 |
Performance | |
Gyroscope | Yes |
Electronic compass | Yes |
Ambient light sensor | Yes |
Accelerometer | Yes |
Keyboard | |
Pointing device | ThinkPad UltraNav |
Numeric keypad | No |
Windows keys | Yes |
Spill-resistant keyboard | Yes |
Keyboard backlit | Yes |
Island-style keyboard | Yes |
Software | |
Operating system architecture | 64-bit |
Trial software | McAfee LiveSafe |
Operating system installed | Windows 10 Pro |
Technical details | |
Power cord included | Yes |
Market positioning | Business |
Intel® Turbo Boost Technology | 2.0 |
Intel® Smart Response Technology | Yes |
Intel® My WiFi Technology (Intel® MWT) | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Housing material | Carbon fiber |
Form factor | Convertible (Folder) |
Product colour | Silver |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
Processor special features | |
Enhanced Intel SpeedStep Technology | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel Clear Video Technology | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® OS Guard | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Intel TSX-NI | Yes |
Intel Trusted Execution Technology | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel Software Guard Extensions (Intel SGX) | Yes |
Intel® Secure Key | Yes |
Intel Flex Memory Access | Yes |
Intel Enhanced Halt State | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Thermal Monitoring Technologies | Yes |
Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
Processor package size | 42 X 24 mm |
Processor code | SR340 |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel 64 | Yes |
Idle States | Yes |
Execute Disable Bit | Yes |
Embedded options available | Yes |
CPU configuration (max) | 1 |
Intel Stable Image Platform Program (SIPP) version | 1.00 |
Intel Smart Response Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Identity Protection Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | Yes |
Intel TSX-NI version | 1.00 |
Conflict-Free processor | Yes |
Processor ARK ID | 97472 |
Intel® Turbo Boost Technology | 2.0 |
Intel® Smart Response Technology | Yes |
Intel® My WiFi Technology (Intel® MWT) | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Battery | |
Battery technology | Lithium Polymer (LiPo) |
Number of battery cells | 4 |
Battery life (max) | 15.5 h |
Battery capacity (Watt-hours) | 56 Wh |
Power | |
AC adapter power | 65 W |
AC adapter frequency | 50 - 60 Hz |
AC adapter input voltage | 100 - 240 V |
Security | |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Password protection type | HDD, Power on, Supervisor |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Sustainability | |
Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
Weight & dimensions | |
Width | 13.1" (333 mm) |
Depth | 9.02" (229 mm) |
Height | 0.685" (17.4 mm) |
Weight | 3.13 lbs (1.42 kg) |
Packaging data | |
Power cord included | Yes |
Stylus pen | Yes |
Quick start guide | Yes |
Manual | Yes |
AC adapter included | Yes |
Other features | |
Ambient light sensor | Yes |
On-board graphics adapter dynamic frequency (max) | 1100 MHz |
Maximum on-board graphics adapter memory | 32 GB |
Intel segment tagging | Enterprise, Small Business |
On-board graphics adapter | Yes |
LightScribe | No |
Maximum internal memory (64-bit) | 16 GB |
Electronic compass | Yes |
AC adapter included | Yes |
Sensors | |
Ambient light sensor | Yes |
Accelerometer | Yes |
Packaging content | |
Power cord included | Yes |
Stylus pen | Yes |
Quick start guide | Yes |
Manual | Yes |
AC adapter included | Yes |
