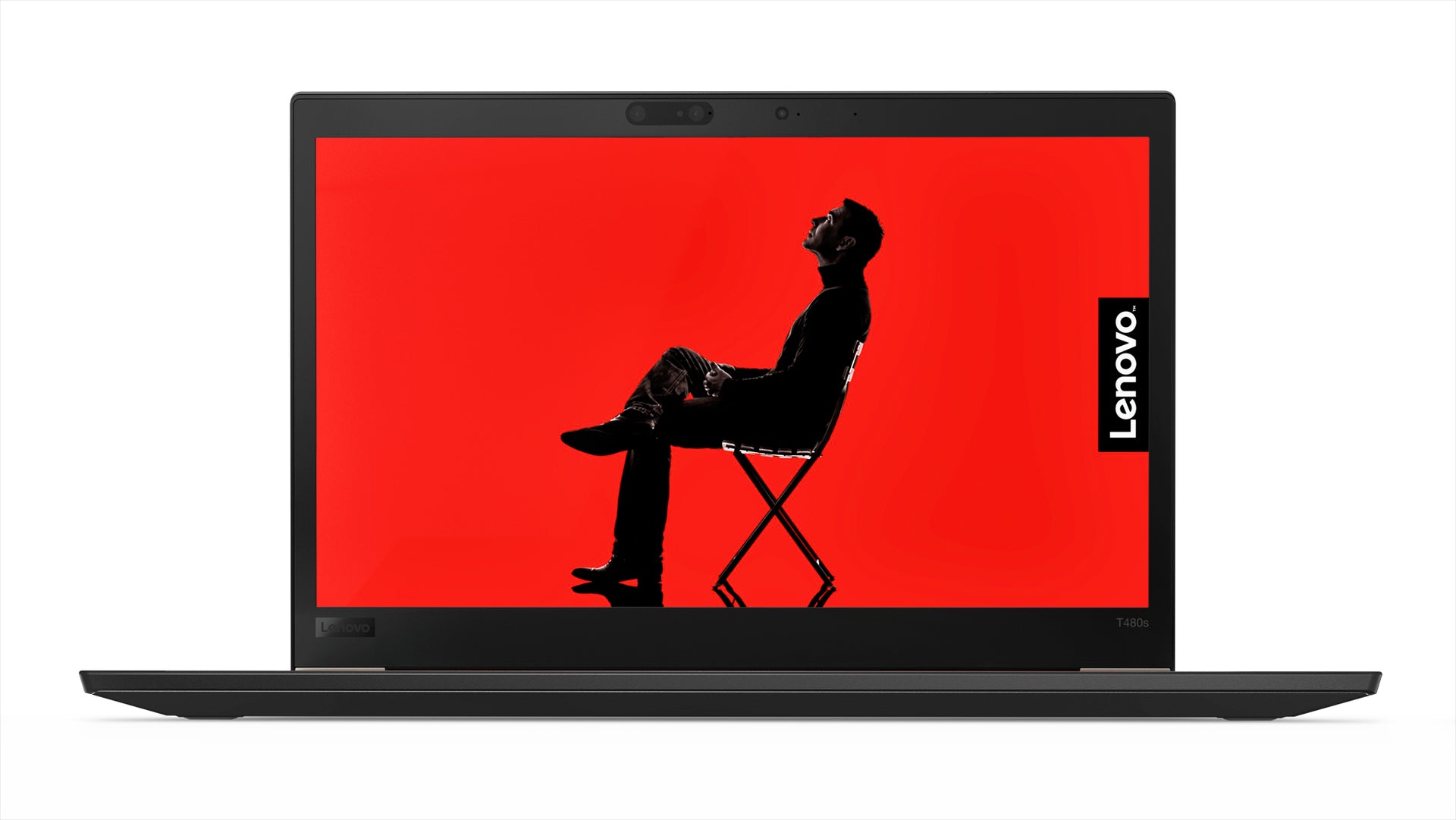

20L7002CUS - Lenovo TOPSELLER THNKPD T480S I5-8350U

Designed for mobile power Light, thin, and built to perform anywhere, the ThinkPad T480s delivers what you need, when you need it. Powerful processing, superb graphics, and Dolby® Audio Premium™ take functional efficiency to new heights. In addition, the enhanced security features maintain maximum protection and peace of mind wherever you roam. An IT manager’s dream As standard, the ThinkPad T480s has a match-on-chip fingerprint reader, anti-spoofing technology that authenticates log-in credentials and helps safeguards your data, and ThinkShutter, a webcam cover that you can open and close. This slim yet full-fledged 14" laptop also has an integrated global LTE-A feature that keeps you connected around the world, WiFi or not. Furthermore, to help save time setting up and deploying each T480s, there's Microsoft AutoPilot. This cloud-based solution lets you preconfigure every laptop so that they are ready to use right out of the box. Raises performance levels—and eyebrows Delivering higher performance and far faster than its predecessor, the new 8th generation Intel® Core™ i7 processor is designed to take your productivity to new heights. Backed by the increased efficiency and speed of DDR4 memory (up to 24 GB), the T480s gives you the power of a desktop PC and the freedom of a portable laptop. No power? No sweat Fully charged, the T480s gives you up to 15.6 hours of battery life. When running low, the laptop's rapid charging feature delivers 80% capacity in just one hour. So over a lunch break or meeting, the battery can be easily boosted to provide over 12 hours of power—more than enough to see you through the rest of the day. Where form meets function Inspired by ThinkPad customers, this latest T-Series ThinkPad has a USB-C docking connector on the side rather than underneath, enabling the T480s to be just 18.45 mm / 0.73 inch thin and weigh only 1.31 kg / 2.9 lb. It also has a range of convenient ports, including the lightning-quick Intel® Thunderbolt™ 3. In addition, should you need to work on the go or in low-light conditions, the renowned ThinkPad ergonomic keyboard has a convenient backlight. Get closer to the action By configuring your T480s with an optional touchscreen, you can interact more intuitively and easily with your work—and have more fun during your downtime. Practical yet secure Thanks to Windows Hello, a touch fingerprint reader, and optional IR (infrared) camera, you can save time by logging in with just your finger or a smile. Alternatively, the standard webcam comes with ThinkShutter, a physical cover that you can slide open when you want to use the camera and then close it when you're finished Tested for battle, built for success—anywhere Every ThinkPad laptop undergoes stringent testing for reliability and durability, including the ability to survive in hazardous physical and environmental conditions. Brilliant, eye-catching graphics With its vast array of vivid colors and wide-angle views, the 14-inch display brings all your visuals, entertainment, and other multimedia to life. To enhance your viewing experience even further, choose the WQHD screen and discrete graphics option. Together, they add a superior sharpness and performance boost so your work can truly shine. You won’t believe your ears Dolby Audio™ Premium and the T480s combine to elevate your audio and entertainment experience. Turn the volume right up and everything will still be crystal clear. You can also enjoy virtual surround sound and an enhanced bass response for high-quality, crisp sound every time. Stronger online security, made easy Signing into websites or making online payments usually involves trying to remember all kinds of passwords. Not so with the FIDO—Fast Identity Online—authentication capabilities that are built into the latest generation of ThinkPad laptops. By wrapping your user info and credentials into three secure layers, FIDO makes it safer and easier when you are online. This global solution also creates better security of web-based services and reduces cost for organizations. A win-win for everyone. One less thing to worry about For extra peace of mind, the T480s comes with a worldwide warranty as standard. This enables you to seek expert assistance and help in 160 countries across the globe.



Specification:



Design
Product type	Notebook
Housing material	Carbon fiber Reinforced Polymer (CFRP), Magnesium
Form factor	Clamshell
Product colour	Black
Display
HD type	Full HD
Display surface	Matt
Panel type	IPS
LED backlight	Yes
3D	No
Contrast ratio (typical)	700:1
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Native aspect ratio	16:9
Processor
Stepping	Y0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake R
Bus type	OPI
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x2+2x1,1x4,2x2,4x1
Maximum number of PCI Express lanes	12
Configurable TDP-down	10 W
ECC supported by processor	No
Configurable TDP-down frequency	0.8 GHz
Conflict-Free processor	Yes
Processor cache	8 MB
Processor frequency	1.8 GHz
Processor model	i7-8550U
Processor boost frequency	4 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1356
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	24 GB
Maximum internal memory (64-bit)	24 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	256 GB
Card reader integrated	Yes
Compatible memory cards	MMC,SD,SDHC,SDXC
Total storage capacity	256 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x5917
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 620
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	1 W
Built-in subwoofer	No
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Carbon fiber Reinforced Polymer (CFRP), Magnesium
Form factor	Clamshell
Product colour	Black
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	42 x 24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Conflict-Free processor	Yes
Processor ARK ID	122589
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	15.6 h
Fast charging	Yes
Power
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	13" (331 mm)
Depth	8.93" (226.8 mm)
Height	0.726" (18.4 mm)
Weight	2.91 lbs (1.32 kg)
Other features
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
3D	No
Maximum internal memory (64-bit)	24 GB
