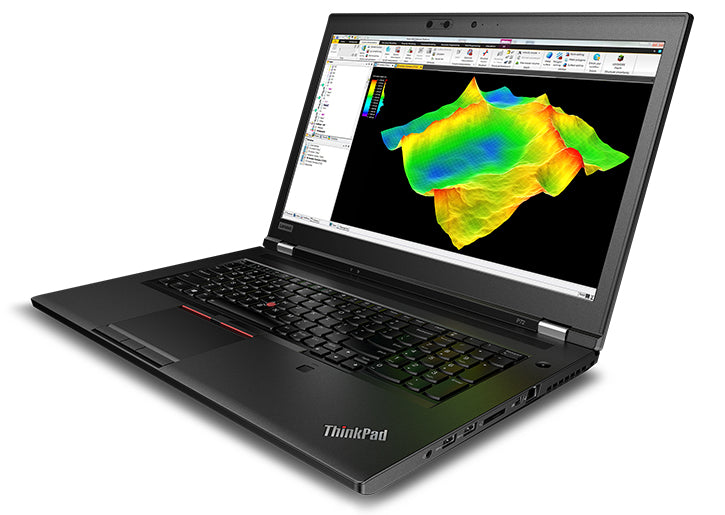

20MB0024US - Lenovo P72,W10P,E-2186M,16GB,1TB,512GB,3YR

See the difference With 4x the resolution of full high definition (FHD) and 400 nits brightness, the ThinkPad P72's 4K UHD display option delivers pin-sharp visuals and wide-angle viewing. With a 100% Adobe color gamut and a 10-bit color depth, it supports over 1 billion colors - perfect for everyone from researchers and scientists to digital artists and entertainment buffs. Get more done, more quickly Intel® Thunderbolt™ 3 technology gives you more speed, pixels, and power than any other USB-C port. This single-cable docking solution is also very versatile and supports up to a 5K display resolution. With dual Thunderbolt™ 3 ports, you can simultaneously use a 4K display and high-performance storage device—and tap blazingly-fast speeds at up to 40 Gbps. See visual computing in a new light For the ultimate in on-the-go productivity, there’s NVIDIA Quadro graphics. So why not opt for the highest card that a workstation can handle, with the P5200?* It’s designed to take your visual computing to new heights—from complex simulations and deep learning to visual effects and exploring the new worlds of virtual reality. Amazing audio For times you need to plug in your earbuds on the ThinkPad P72, enter a whole new world of sound. Dolby Atmos® creates an amazing headphone experience with breathtaking, moving audio that flows above and around you. Enjoy your listening experience, whether playing music, participating in a remote meeting, or even just catching a video. Windows 10 Pro, built for business With Windows 10 Pro*, you can empower yourself and your business to do great things securely across many devices anywhere—with anyone, any time. Easy to use, it helps you can get more done right from the start. Engineered to perform and last in any environment The ThinkPad P72 has been rigorously tested to MIL-SPEC standards, so it works in almost any environment—from the Arctic to the desert and everywhere in between. Additionally, Flex Performance Cooling dual-fan technology lets you push the boundaries of productivity and creativity. There’s also the legendary ThinkPad keyboard, award-winning and spill resistant, it’s optimized for a more comfortable typing experience. Ready for today, tomorrow, & beyond With proven performance and software stability, the ThinkPad P72 has been thoroughly tested by industry-leading independent software vendors (ISVs). It includes ISV certification from the most popular vendors like Autodesk®, AVID®, Bentley®, Dassault®, PTC®, and Siemens®. It is also VR-ready, so you can tap the world of professional AR/VR without sacrificing mobility. Advanced security from the get-go With Windows Hello and the advanced infrared camera, you can log in to your ThinkPad P72 with just a smile. In addition to facial recognition, there’s also a match-on-chip fingerprint reader, providing you with the most secure fingerprint technology on a PC. The dTPM 2.0 chip encrypts all your personal data automatically. What’s more, there is an optional smartcard reader available.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	17.3"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
ECC supported by processor	No
Configurable TDP-down frequency	2.1 GHz
Processor cache type	Smart Cache
Processor cache	9 MB
Processor frequency	2.6 GHz
Processor model	i7-8850H
Processor boost frequency	4.3 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	M.2
Card reader integrated	Yes
Compatible memory cards	MMC,SD,SDHC,SDXC
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	4 GB
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E9B
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 630
Discrete graphics adapter model	NVIDIA® Quadro® P2000
Audio
Audio chip	Realtek ALC3286
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	No
Combo headphone/mic port	Yes
Mini DisplayPorts quantity	1
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Windows keys	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics adapter memory	4 GB
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Processor ARK ID	134899
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	99 Wh
Fast charging	Yes
Power
AC adapter power	230 W
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	16.4" (416 mm)
Depth	11.1" (281 mm)
Height (front)	0.965" (2.45 cm)
Height (rear)	1.16" (2.94 cm)
Weight	7.5 lbs (3.4 kg)
Packaging data
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	64 GB
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
AC adapter included	Yes
