| Design | |
|---|---|

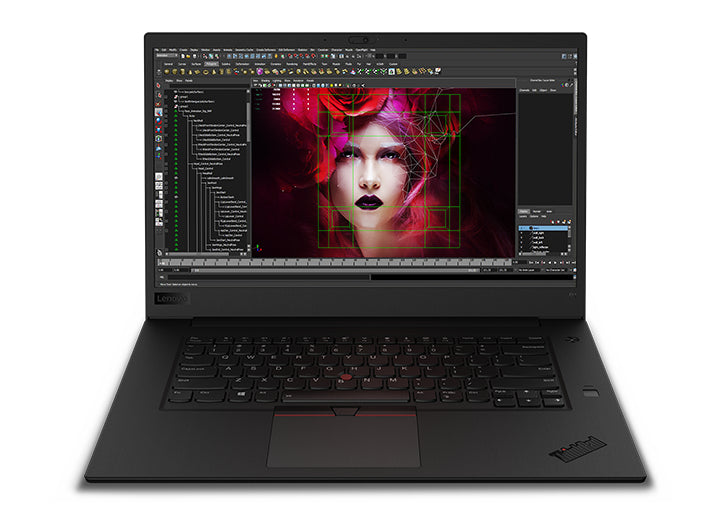

| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black |
| Display | |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 300 cd/m² |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 15.6" |
| Processor | |
| Stepping | U0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| Configurable TDP-down frequency | 2.2 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 2.7 GHz |
| Processor model | E-2176M |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA 1440 |
| Motherboard chipset | Intel® CM246 |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Maximum internal memory (64-bit) | 64 GB |
| Storage | |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
| Graphics | |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 0x3E9B |
| On-board graphics adapter model | Intel UHD Graphics P630 |
| Audio | |
| Audio chip | Realtek ALC3286 |
| Audio system | Dolby Audio Premium |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera signal format | 720p |
| Front camera | Yes |
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Numeric keypad | No |
| Windows keys | Yes |
| Keyboard backlit | Yes |
| Technical details | |
| Power cord included | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Sustainability certificates | RoHS, ENERGY STAR |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Processor package size | 42 x 28 mm |
| Processor code | SR3YX |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 134867 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Quick charge | Yes |
| Security | |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot | Yes |
| Weight & dimensions | |
| Width | 14.2" (361.8 mm) |
| Depth | 9.67" (245.7 mm) |
| Packaging data | |
| Power cord included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Power cord included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| On-board graphics adapter dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Audio system | Dolby Audio Premium |
| Maximum internal memory (64-bit) | 64 GB |
| AC adapter included | Yes |
