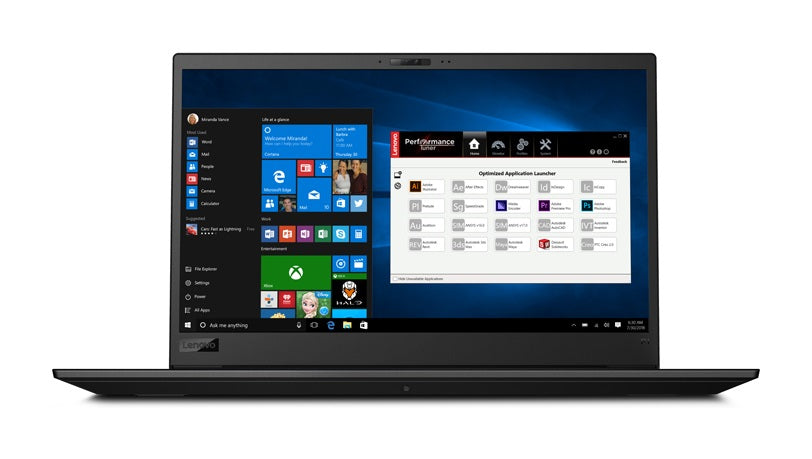

20MD003XUS - Lenovo THINKPAD P1, INTEL CORE I5-8400H (2.50GHZ, 8MB), 15.6 3840X2160 TOUCH, WINDOWS 1

The power you need, the machine you want Is it better to be powerful or mobile? With the new ThinkPad P1, the answer is … both. No need to choose. It’s our thinnest and lightest mobile workstation ever at 18.4mm and 1.7 kg. But it still delivers on power with 8th Gen Intel® Xeon® and Core™ processors, NVIDIA® Quadro® graphics, and massive memory and storage options. Raw power Count on the ThinkPad P1 mobile workstation when it comes to mission-critical systems and performance. The latest Intel® Xeon® and Core™ processing and cutting-edge NVIDIA® Quadro® graphics make this slim powerhouse pack a punch. ISV Certified The ThinkPad P1 has been tested and proven to render key heavy-lifting applications seamlessly. And don’t just take our word for it: the P1 boasts dozens of the major independent software vendor (ISV) certifications. Workstation power has never looked so good Boasting Think’s signature black finish and encased in carbon fiber and magnesium alloy, the P1 has the style to match the power inside. And at a mere 18.4 mm thin, no one will mistake this machine for anything less than an ultra-premium must-have. Girded for the toughest ordeals We inflict some of the most stringent product testing in the industry on ThinkPads, so you get the perfect blend of power and durability when you purchase one. The P1 has endured 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust this mobile workstation to handle whatever life throws your way. Thin in size, thick with features It’s not just power the ThinkPad P1 packs into its slim chassis. Its robust connectivity – including multiple Thunderbolt™ ports, as well as more traditional connectors like USB 3.0 and HDMI – put other ultrathin mobile workstations to shame. We even shrunk the power supply by more than a third.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	400 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Processor generation	8th gen Intel® Core™ i7
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
ECC supported by processor	No
Configurable TDP-down frequency	1.7 GHz
Processor cache type	Smart Cache
Processor cache	9 MB
Processor frequency	2.2 GHz
Processor model	i7-8750H
Processor boost frequency	4.1 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
ECC	No
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Maximum internal memory (64-bit)	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Total storage capacity	512 GB
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E9B
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Discrete graphics card model	NVIDIA® Quadro® P1000
Audio
Audio chip	Realtek ALC3286
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Auto focus	No
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
LightScribe	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	5.0
WWAN	Not installed
SIM card support	No
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	1
Combo headphone/mic port	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	4 GB
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	42 x 28 mm
Processor code	SR3YY
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Processor ARK ID	134906
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	80 Wh
Fast charging	Yes
Power
AC adapter power	135 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	14.2" (361.8 mm)
Depth	9.67" (245.7 mm)
Height	0.736" (18.7 mm)
Weight	3.97 lbs (1.8 kg)
Packaging data
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	64 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
LightScribe	No
Audio system	Dolby Audio Premium
3D	No
Maximum internal memory (64-bit)	64 GB
SIM card support	No
AC adapter included	Yes
