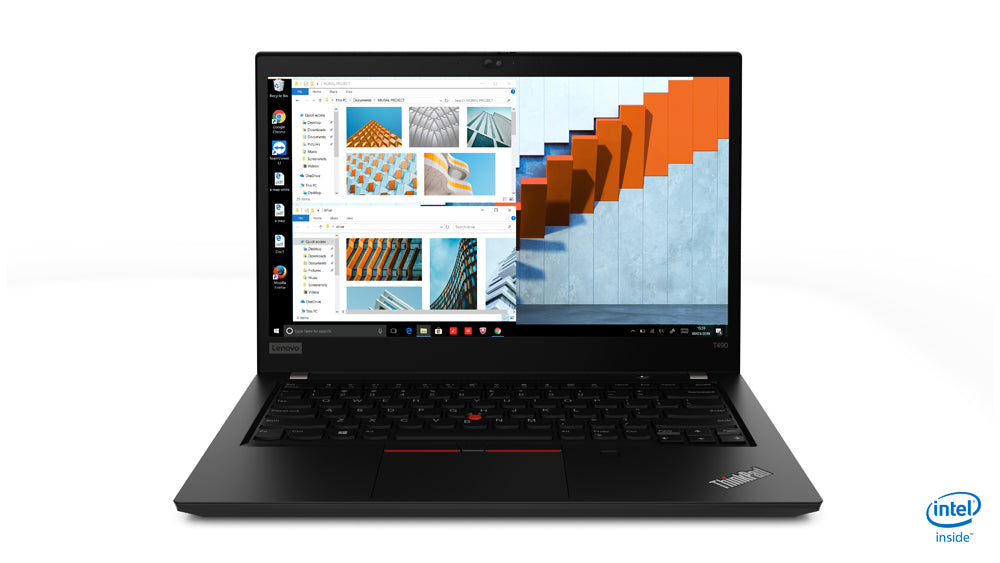

20N2006YUS - Lenovo THINKPAD T490, INTEL CORE I7-8665U (1.90GHZ, 8MB), 14.0 1920X1080 TOUCH, WINDOWS

Dazzle yourself & others Choose dramatic Dolby Vision® high-dynamic-range (HDR) technology, available on the WQHD panel that boasts increased brightness, expanded contrast, amazingly accurate colors, and refined detail. Combine with discrete graphics and the T490 is perfect for working with multimedia. Or go with the FHD low-power option for enhanced battery life. No matter which display you choose, the T490 features a new bezel design with a larger display area. Tested for battle, built for life Like all ThinkPads, the T490 is tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Go from 0 to 80 in 60 The T490 delivers up to 16.1 hours of battery life*. And if you’re running low, Rapid Charge technology provides 80% capacity in just an hour. So a 60-minute lunch break or a layover can easily boost your battery up to more than 12 hours. What more could you need for life on the go? Stay connected Whether you’re out in the world or working at your desk, the T490 keeps you connected. The optional LTE-A card keeps you up and running worldwide*. Or use the ThinkPad Pro Dock (sold separately), a USB-C side mechanical docking station that easily connects with two male Type-C ports that slide into and automatically level your device. Once docked, your ThinkPad stays securely in place and connects to all of your peripherals—and it’s shared across all newer ThinkPads. What happens on your PC stays on your PC Unless you decide to share it. The T490 offers an FHD panel with PrivacyGuard—an exclusive technology that narrows the field of view of the screen info from all angles other than head-on. ThinkShutter, a physical cover that ensures your camera is on only when you want it to be, is now available on all camera options. You can also add an optional IR (infrared) camera and optional touch fingerprint reader for biometric login.



Specification:



Design
Product type	Notebook
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	400 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4,2x2,1x2+2x1,4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	1.9 GHz
Processor model	i7-8665U
Processor boost frequency	4.8 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Intel® Optane™ Memory module installed	Yes
Intel® Optane™ Memory module capacity	32 GB
Total SSDs capacity	512 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA0
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 620
Discrete graphics adapter model	Not available
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Auto focus	No
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
LightScribe	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Combo headphone/mic port	Yes
Docking connector	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Sustainability certificates	ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193563
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	16.11 h
Battery capacity (Watt-hours)	50 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	13" (329 mm)
Depth	8.94" (227 mm)
Height	0.705" (17.9 mm)
Weight	3.22 lbs (1.46 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics adapter	Yes
LightScribe	No
Audio system	Dolby Audio Premium
3D	No
AC adapter included	Yes
