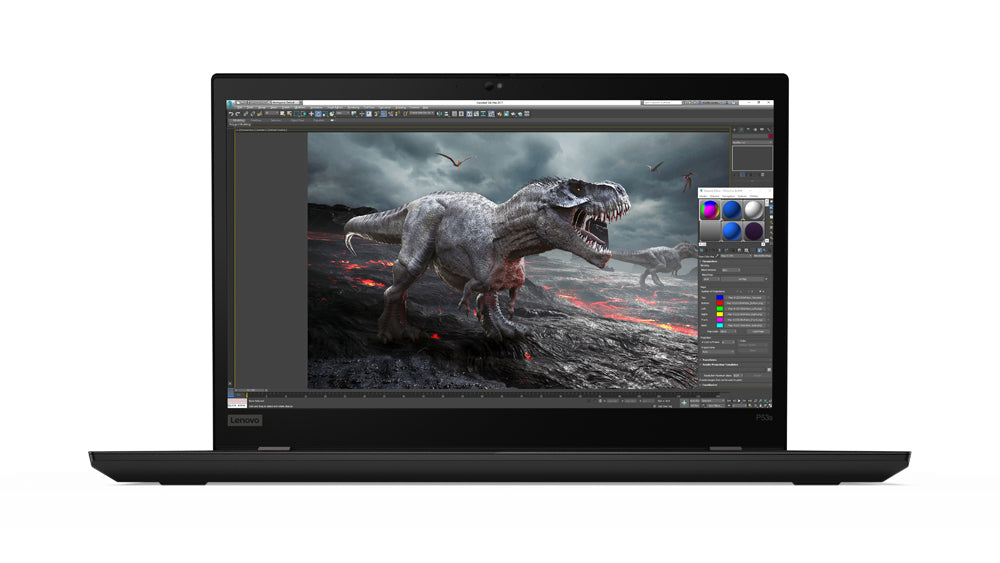

20N60027US - Lenovo P53S,W10P,I7,16GB,512GB,3YR

Heavyweight performance, lightweight chassis With the latest 8th Gen Intel® quad-core processor and NVIDIA® Quadro® professional graphics, the ThinkPad P53s delivers the power and performance you need in a lightweight, portable package. Dual solid-state drives (SSD) with up to 2TB storage and up to 48GB of memory ensure no more lag time. Additionally, the ThinkPad P53s includes ISV certification from all the major vendors, like Autodesk®, AVID®, Bentley®, Dassault® Systèmes®, PTC®, and Siemens®. Your true colors are beautiful The ThinkPad P53s offers the option of a stunning 15.6" 4k UHD (3840 x 2160) display, available with Dolby Vision™ high dynamic range (HDR) technology. Enjoy increased brightness, expanded contrast, more refined detail, and colors that are super-vibrant—especially with 100% Adobe color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals! Audio so amazing you’ll think it’s live Speakers on the ThinkPad P53s deliver premium sound with Dolby Audio™, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. Boosted bass and enhanced volume turn it all up for sound that’s loud and clear enough to share. Extremely well-connected With a battery that runs up to 14 hours, the lightweight ThinkPad P53s mobile workstation practically begs to accompany you everywhere.* And for true mobility and connection even when there is no WiFi, add the option of WWAN, which lets you jump online securely wherever there’s cellular service.** * Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. **WWAN must be configured at time of purchase, as it cannot be added later. Tested for battle, built for life Because you need reliability, the ThinkPad P53s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Because getting hacked would be horrible Built-in security features protect your business-critical info. Default discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional embedded fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	500 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4,2x2,1x2+2x1,4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	1.9 GHz
Processor model	i7-8665U
Processor boost frequency	4.8 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Total SSDs capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	2 GB
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA0
On-board graphics adapter family	Intel® UHD Graphics
Number of discrete graphics adapters installed	1
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 620
Discrete graphics adapter model	NVIDIA Quadro P520
Audio
Audio chip	Realtek ALC3287
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9260
Wi-Fi	Yes
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics adapter memory	2 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193563
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	10 h
Battery capacity (Watt-hours)	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.4" (365.8 mm)
Depth	9.76" (248 mm)
Height	0.752" (19.1 mm)
Weight	3.86 lbs (1.75 kg)
Packaging data
Power cord included	Yes
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9260
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
3D	No
AC adapter included	Yes
