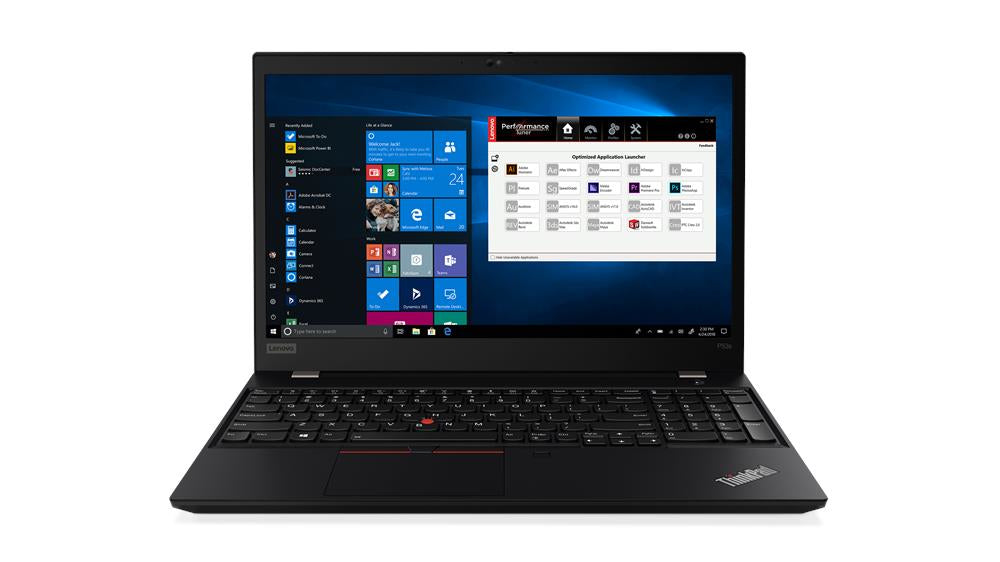

20N60052US - Lenovo P53S,MULTITOUCH,W10P,I7,24GB,1TB,3YR

Heavyweight performance, lightweight chassis With the latest 8th Gen Intel® quad-core processor and NVIDIA® Quadro® professional graphics, the ThinkPad P53s delivers the power and performance you need in a lightweight, portable package. Ensure no more lag time with memory up to 48GB and solid-state drives (SSD) up to 2TB. Additionally, the ThinkPad P53s includes ISV certification from all the major vendors, like Autodesk®, AVID®, Bentley®, Dassault® Systèmes®, PTC®, and Siemens®. Your true colors are beautiful The ThinkPad P53s offers the option of a stunning 15.6" 4k UHD (3840 x 2160) display, available with Dolby Vision™ high dynamic range (HDR) technology. Enjoy increased brightness, expanded contrast, more refined detail, and colors that are super-vibrant—especially with 100% Adobe color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals! Audio so amazing you’ll think it’s live Speakers on the ThinkPad P53s deliver premium sound with Dolby Audio™, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. Boosted bass and enhanced volume turn it all up for sound that’s loud and clear enough to share. Extremely well-connected With a battery that runs up to 15 hours, the lightweight ThinkPad P53s mobile workstation practically begs to accompany you everywhere.* And for true mobility and connection even when there is no WiFi, add the option of WWAN, which lets you jump online securely wherever there’s cellular service.** * Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. **WWAN must be configured at time of purchase, as it cannot be added later. Tested for battle, built for life Because you need reliability, the ThinkPad P53s mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Because getting hacked would be horrible Built-in security features protect your business-critical info. Default discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. An optional embedded fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile.



Specification:



Design
Product type	Mobile workstation
Housing material	Polyamide, Polyphenylene sulfide (PPS)
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	250 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1920 x 1080 pixels
Display diagonal	15.6"
DCI-P3 coverage	45%
Native aspect ratio	16:9
Processor
Processor generation	8th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Bus type	OPI
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	1.8 GHz
Processor model	i7-8565U
Processor boost frequency	4.6 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board + SO-DIMM
Internal memory	24 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	48 GB
Storage
Flash drive interface	PCI Express
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	2 GB
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3EA0
On-board graphics card family	Intel® UHD Graphics
Number of discrete graphics cards installed	1
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	NVIDIA Quadro P520
Discrete graphics memory type	GDDR5
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Infrared (IR) camera	No
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	Yes
Full-size keyboard	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	US English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Polyamide, Polyphenylene sulfide (PPS)
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	2 GB
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Processor ARK ID	149091
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	15 h
Battery capacity (Watt-hours)	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.4" (365.8 mm)
Depth	9.76" (248 mm)
Height	0.752" (19.1 mm)
Weight	3.86 lbs (1.75 kg)
Packaging data
Manual	Yes
AC adapter included	Yes
Packaging content
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
Audio system	Dolby Audio Premium
3D	No
AC adapter included	Yes
