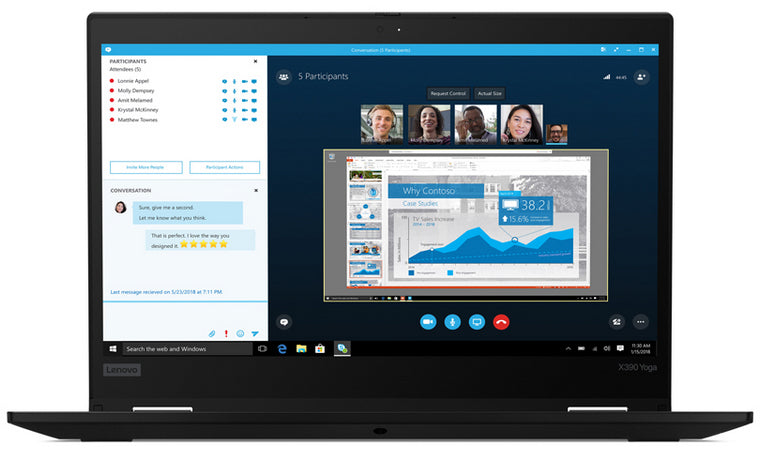

20NN0018US - Lenovo X390 YOGA,W10P,I7,8GB,512GB,3YR

Uncompromising design The X390 Yoga was designed for both flexibility and reliability. Convert it easily between Laptop, Tablet, Stand and Tent modes, depending on your needs at the time. Use its integrated ThinkPad Pen Pro to unleash your creativity as you sketch, sign documents, or take notes. And for the first time with an X Series Yoga, connect it to a ThinkPad Pro Dock (sold separately) via USB-C side mechanical docking, so you can easily use it with peripherals at the office. Steadfast security Add an optional Hybrid IR (infrared) camera and touch fingerprint reader to securely log in with Windows Hello—just a view of your face or a touch of your finger will have you up and running almost instantly. And no need to worry about outsiders hijacking your webcam to spy on you; this 2-in-1 includes ThinkShutter, a physical cover that ensures your camera is looking at you only when you want it to be. Packs a punch The X390 Yoga carries some serious power behind its streamlined design, from its 8th Gen Intel® Core™ processors, to fast PCIe SSD storage, to the enhanced audio experience of its dual far-field mics and Dolby Audio™ Premium. Take productivity on the go. Take it anywhere and everywhere Slim and light, the X390 Yoga was engineered for mobility, with a starting weight of only 2.93 lbs. Its battery will keep you productive as you go, with up to 14.5 hours between charges. Once it’s time to recharge, you can bring it up to 80 percent capacity with just 60 minutes’ charge. Plus, with optional global LTE-A WWAN, you’ll stay connected no matter where you go.



Specification:



Design
Product type	Hybrid (2-in-1)
Market positioning	Business
Housing material	Carbon fiber
Form factor	Convertible (Folder)
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	300 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	1920 x 1080 pixels
Display diagonal	13.3"
Native aspect ratio	16:9
Processor
Processor generation	8th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	6 MB
Processor frequency	1.6 GHz
Processor model	i5-8365U
Processor boost frequency	4.1 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Configurable TDP-up frequency	1.9 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3EA0
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 620
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
LightScribe	No
Network
Mobile network connection	Yes
Mobile network generation	4G
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
4G standard	LTE-A
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.0
WWAN	Installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
Performance
Gyroscope	Yes
Ambient light sensor	No
Accelerometer	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Market positioning	Business
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Carbon fiber
Form factor	Convertible (Folder)
Product colour	Black
Sustainability certificates	RoHS, EPEAT Bronze, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193555
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	14.5 h
Battery capacity	50 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Bronze, ENERGY STAR
Weight & dimensions
Width	12.2" (310.4 mm)
Depth	8.62" (219 mm)
Height	0.628" (15.9 mm)
Weight	2.84 lbs (1.29 kg)
Packaging data
AC adapter included	Yes
Other features
Ambient light sensor	No
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
LightScribe	No
Audio system	Dolby Audio Premium
3D	No
Maximum internal memory (64-bit)	16 GB
AC adapter included	Yes
Sensors
Ambient light sensor	No
Accelerometer	Yes
Packaging content
AC adapter included	Yes
