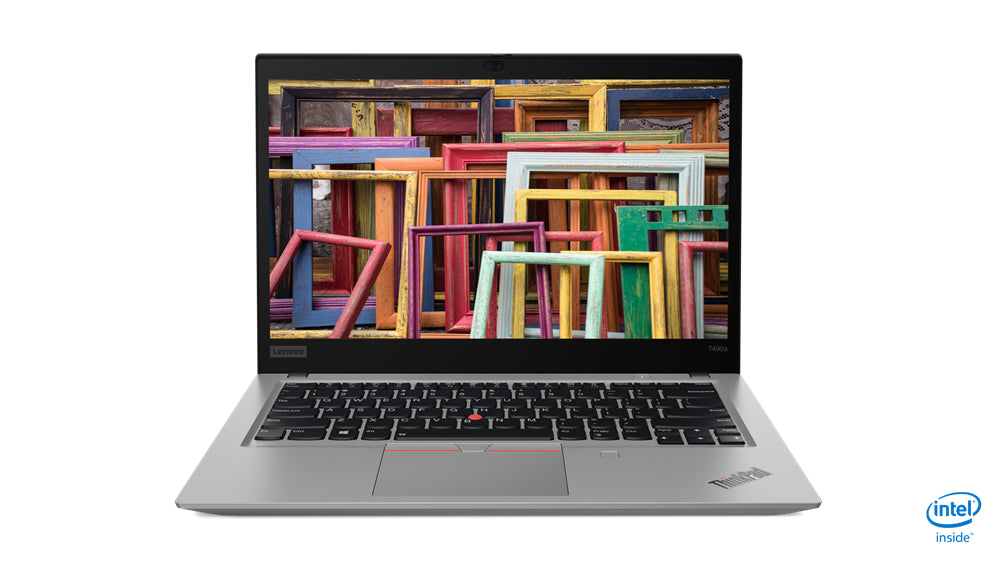

20NX0021US - Lenovo THINKPAD T490S, INTEL CORE I7-8565U (1.80GHZ, 8MB) 14.0 WQHD (2560 X 1440) , WIN

Dazzle yourself & others Choose the low-power FHD option for ultimate battery life on your T490s, or go with the FHD touchscreen. For refined details, increased brightness, and amazingly accurate colors, dramatic Dolby Vision® high-dynamic-range (HDR) technology is available on the WQHD panel. No matter which display you choose, they’re all framed by a new narrow bezel design that results in a larger display area. Acts on your command With Cortana Premium, you can speak commands to your T490s from across the room. The integrated far-field microphones ensure your voice carries its weight. Wake your device with a simple phrase. Quickly and easily find files and calendar events. Even put your system into standby mode to improve battery performance. Speak your mind and boost your productivity at the same time. Tested for battle, built for life Like all ThinkPads, the T490s is tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Go from 0 to 80 in 60 The T490s delivers up to 20 hours of battery life*. And if you’re running low, Rapid Charge technology provides 80% capacity in just an hour. So a 60-minute lunch break or a layover can easily boost your battery up to almost 16 hours. What more could you need for life on the go? What happens on your PC stays on your PC Unless you decide to share it. For confidential data that needs to remain secure from roaming eyes, the T490s offers an FHD panel with PrivacyGuard—an exclusive technology that narrows the field of view of the screen info from all angles other than head-on. ThinkShutter, a physical cover that you can slide open when you want to use the camera and closed when you're finished, is now available on all camera options. You can also add an optional IR (infrared) camera and optional touch fingerprint reader for biometric login. Go from 0 to 80 in 60 Whether you’re out in the world or working at your desk, the T490s keeps you connected. The optional LTE-A card keeps you up and running worldwide*. While the ThinkPad Pro Dock (sold separately), a USB-C side mechanical docking station easily connects with two male Type-C ports that snap into and automatically level your device. Once docked, your ThinkPad stays securely in place and connects to all of your peripherals.



Specification:



Design
Product type	Notebook
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	400 cd/m²
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	14"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Whiskey Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4,2x2,1x2+2x1,4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	1.9 GHz
Processor model	i7-8665U
Processor boost frequency	4.8 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	8th gen Intel® Core™ i7
Configurable TDP-up frequency	2.1 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Maximum internal memory	32 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	M.2
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	512 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3EA0
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 620
Audio
Audio chip	Realtek ALC3287
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	5.0
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
Docking connector	Yes
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Sustainability certificates	RoHS, EPEAT Bronze, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	46x24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	193563
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity (Watt-hours)	57 Wh
Fast charging	Yes
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Bronze, ENERGY STAR
Weight & dimensions
Width	13" (329 mm)
Depth	8.9" (226 mm)
Height	0.657" (16.7 mm)
Weight	3.28 lbs (1.49 kg)
Other features
On-board graphics adapter dynamic frequency (max)	1150 MHz
Maximum on-board graphics adapter memory	32 GB
On-board graphics adapter	Yes
Audio system	Dolby Audio Premium
