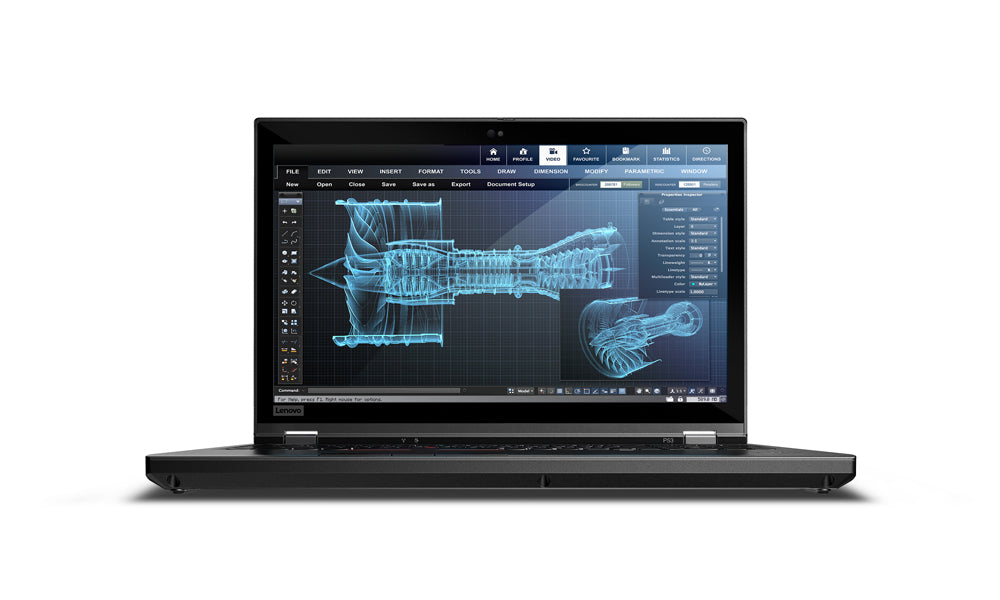

20QN004BUS - Lenovo THINKPAD P53, INTEL CORE I7-9850H (2.60GHZ, 12MB), 15.6IN 3840X2160 NON-TOUCH, W

Ready. Set. Render. With a processor choice of up to 9th Gen Intel® Xeon® or 9th Gen Intel® Core™ i9 with 8 cores, the ThinkPad P53 delivers pure power. With the option of the NVIDIA® Quadro RTX™ 5000 GPU, it's more than capable of rendering VR and handling data-intensive AI projects. Up to 6TB of storage means you'll never need to worry about system lag time or running out of space. Additionally, the ThinkPad P53 includes ISV certification from all the major vendors, like 3dsMax®, AutoCAD®, CATIA®, Decision Space®, Petrel®, and Vectorworks®. Dazzle or be dazzled The ThinkPad P53 offers the option of a stunning 15.6” 4k UHD OLED touch display (3840 x 2160), with Dolby Vision™ high dynamic range (HDR) technology. Enjoy expanded contrast, more refined detail, and colors that are super-vibrant—especially so with DCI-P3 100% color gamut. Whether you’re creating or viewing multimedia, you’ll love the visuals! When you need it yesterday The ThinkPad P53 features WiFi-6 certification, the fastest WiFi ever. It’s built to handle larger capacity, especially when running in crowded environments—so no waiting or buffering. Go ahead and stream video, or create it. With a battery that runs up to 16.5 hours, this mobile workstation is ready for anything, anywhere. For true mobility, add optional WWAN connectivity, which lets you jump online securely wherever there’s cellular service. Tested for battle, built for life Because you need reliability, the ThinkPad P53 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. We take care of security; you take care of business Keep your business data—and your privacy—safe with the ThinkPad P53 mobile workstations’ comprehensive suite of ThinkShield security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The optional match-on-chip fingerprint reader uses biometrics to log you in with a simple touch. Or, use the optional IR camera with Windows Hello to log in with your smile. Audio so amazing you’ll think it’s live Speakers on the ThinkPad P53 deliver premium sound with Dolby® Atmos™ Sound system, which energizes your entertainment with rich, powerful sound. It dynamically adjusts audio to deliver home theater quality in a virtual surround sound experience for all your entertainment needs. And dual far-field mics ensure that you’ll be heard clearly on every call.



Specification:



Design
Product type	Mobile workstation
Housing material	Aluminum, Glass Fiber Reinforced Plastic (GFRP), Magnesium
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	4K Ultra HD
Panel type	OLED
LED backlight	Yes
3D	No
Display brightness	400 cd/m²
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	2.8 GHz
Processor model	E-2276M
Processor boost frequency	4.7 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA1440
Processor manufacturer	Intel
Processor family	Intel Xeon E
Memory
Memory form factor	SO-DIMM
Internal memory	32 GB
Memory layout (slots x size)	1 x 32 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Maximum internal memory (64-bit)	128 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	NVMe, PCI Express
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E94
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel UHD Graphics P630
Discrete graphics card model	NVIDIA Quadro RTX 5000
Discrete graphics memory type	GDDR6
Audio
Audio chip	Synaptic CX11880
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Charging port type	DC-in jack
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro for Workstations
Technical details
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Aluminum, Glass Fiber Reinforced Plastic (GFRP), Magnesium
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	16 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	192989
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	8 h
Battery capacity (Watt-hours)	90 Wh
Fast charging	Yes
Power
AC adapter power	230 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.9" (377.4 mm)
Depth	9.93" (252.3 mm)
Height (front)	1.02" (2.58 cm)
Height (rear)	1.21" (3.07 cm)
Weight	6.39 lbs (2.9 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1200 MHz
Maximum on-board graphics card memory	64 GB
WLAN controller model	Intel Wi-Fi 6 AX200
On-board graphics card	Yes
3D	No
Maximum internal memory (64-bit)	128 GB
AC adapter included	Yes
