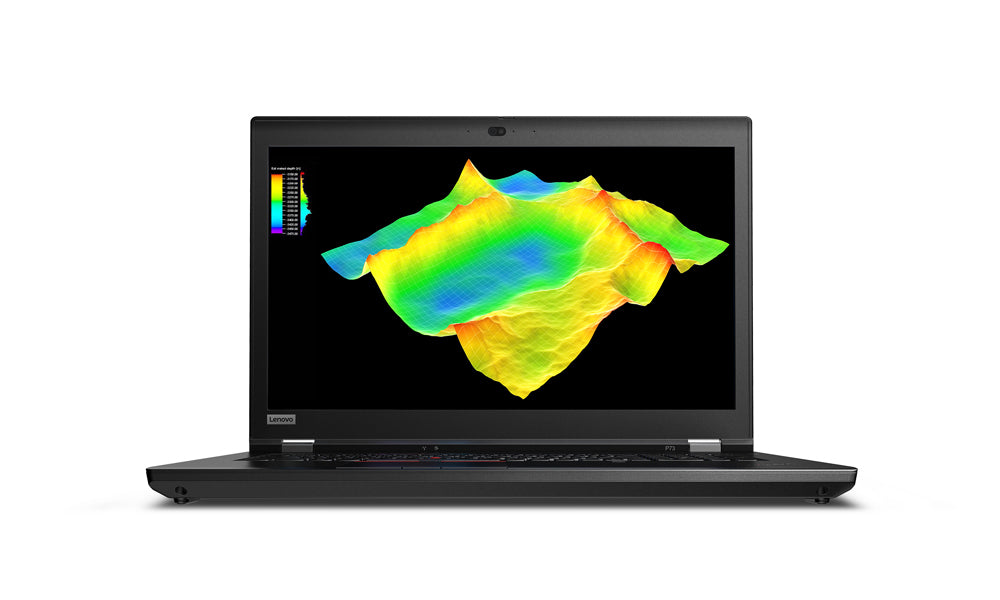

20QR003JUS - Lenovo THINKPAD P73, INTEL CORE I7-9750H (2.60GHZ, 12MB), 17.3 3840X2160 NON-TOUCH, WIN

Big power, big performance The ThinkPad P73 mobile workstation is Lenovo’s most powerful portable workstation. This 17.3" rig packs 9th Gen Intel® Core™ or Intel® Xeon® multicore processors, plus the most powerful NVIDIA® Quadro® graphics processing units, so it can tackle even the most demanding workflows. Its large display gives you maximum space to do so, while its 35-percent smaller power supply gives you a lighter total package. Rendering power for every industry The ThinkPad P73 mobile workstation delivers maximum power, thanks to the latest high-performance processors from Intel®. With up to the eight-core i9 CPU, plus graphics up to the powerful new NVIDIA® RTX Quadro® 5000 series, you’ll have real-time VR rendering speeds, plus AI-augmented tools to handle workflows in any computing-intensive industry. Additionally, it includes ISV certification for ArcGIS®, AutoCAD®, Creo®, Decision Space®, McKesson®, Revit®, SolidWorks®, 3dsMax®, and more. See your work in colorful detail Choose an optional 4k UHD (3840 x 2160), 400-nit display for vibrant color with 100% Adobe color gamut. And you can achieve color accuracy better than the human eye can differentiate, through our X-Rite Pantone Color Calibration Service. The display is also available with Dolby Vision™ high dynamic range (HDR) technology, for true-to-life images and video. Enjoy increased brightness, expanded contrast, and refined detail, all in brilliant colors. Experience true sound Enjoy the rich, full audio of this workstation’s Dolby Atmos®-certified sound system. Its 2-watt stereo speakers will immerse you in sound, while its dual far-field microphone ensures you’ll be heard clearly on every call. Stays connected and charged The ThinkPad P73 mobile workstation offers strong connectivity and long battery life. It’s certified for WiFi-6, the fastest WiFi ever, with data transfer speeds up to 9.6Gbps. WiFi-6 can handle more capacity and is built for crowded environments. And with a battery that can stay charged up to nearly 17 hours, you won’t be tethered to a power outlet. Reliable in any environment The ThinkPad P73 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks, to ensure it will run in extreme conditions. You can rely on it from the Arctic wilderness to desert dust storms, from zero gravity to spills and drops. Its durability will keep it working for you. Protects your data and privacy Keep your business data—and your privacy—safe with the ThinkPad P73 mobile workstation’s security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. And an optional fingerprint reader uses biometrics to log you in with a simple touch.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	4K Ultra HD
Display surface	Matt
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	500 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	3840 x 2160 pixels
Display diagonal	15.6"
Native aspect ratio	16:9
Processor
Processor generation	9th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	2.6 GHz
Processor model	i7-9750H
Processor boost frequency	4.5 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Maximum internal memory (64-bit)	64 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E9B
On-board graphics card family	Intel® UHD Graphics
Number of discrete graphics cards installed	1
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Discrete graphics card model	NVIDIA Quadro T2000
Audio
Audio chip	Synaptic CX11880
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Near Field Communication (NFC)	No
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.0
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Headphone outputs	1
Combo headphone/mic port	Yes
ExpressCard slot	No
Charging port type	DC-in jack
Expansion slots
ExpressCard slot	No
Performance
ExpressCard slot	No
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Power cord included	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	4 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191045
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	13.8 h
Battery capacity	80 Wh
Fast charging	Yes
Power
AC adapter power	135 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.2" (361.8 mm)
Depth	9.67" (245.7 mm)
Height	0.724" (18.4 mm)
Weight	3.75 lbs (1.7 kg)
Packaging data
Power cord included	Yes
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card	Yes
Audio system	Dolby Audio Premium
3D	No
Maximum internal memory (64-bit)	64 GB
AC adapter included	Yes
