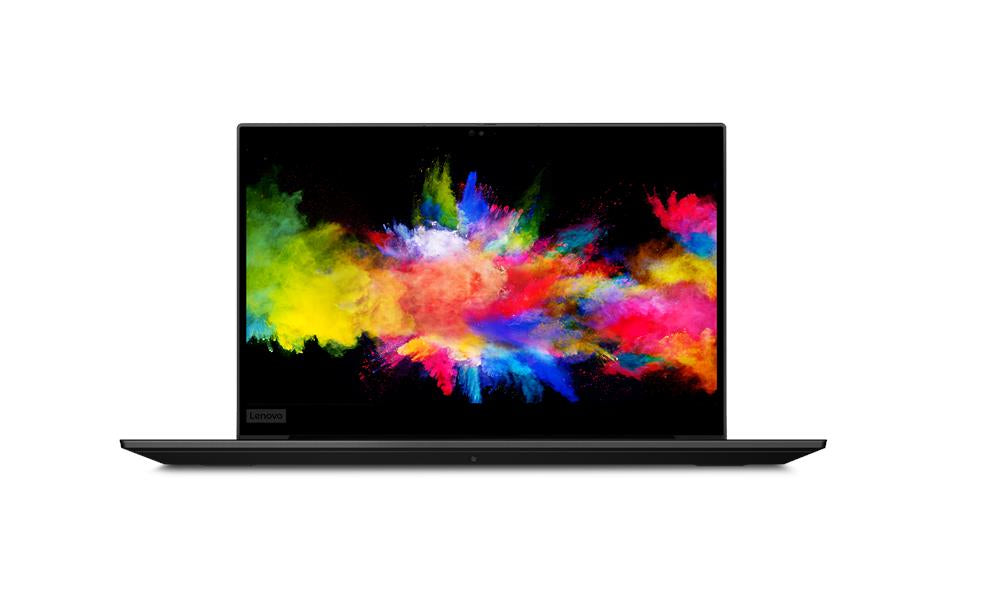

20QT008QUS - Lenovo P1 GEN2,W10P,I7,32GB,512GB,3YR

The difference you can see and hear The ThinkPad P1 Gen 2 is built to bring your senses to new heights with the option of a stunning Dolby Vision™ HDR 4K UHD OLED* touchscreen panel that displays the most true-to-life colors the human eye can perceive. With the option of X-Rite Pantone® calibration, what you see on the screen will be exactly how it looks when printed. This is a content creator’s dream come true. With the Dolby Atmos® speaker system and dual far-field microphones, the brilliance of the ThinkPad P1 Gen 2's display is matched with a robust audio experience—whether you're listening to music or on a conference call. *Coming Fall 2019 All new levels of power This mobile workstation is built to tear through the most demanding computing tasks. Whether you’re an architect using AutoCAD®, or a content creator using demanding visual effects software, with up to Intel® Xeon® processing and the all new NVIDIA® Quadro® T2000 GPU, this laptop will keep the applications you need for work running lag-free. With up to 4TB of storage space available, large files aren’t a problem. Additionally, this laptop includes ISV certification for ArcGIS®, AutoCAD®, Creo®, Decision Space®, McKesson®, Revit®, SolidWorks®, 3dsMax®, and more. Well connected Buckle up for the fastest WiFi ever with WiFi-6. Built to reach speeds of up to 9.6 Gbps, it’s 2.7 times faster than WiFi-5 and designed to maintain optimal functionality in crowded networks. Cruise through downloads on your office network, or connect to several smart devices at home. The ThinkPad P1 Gen 2 can handle the traffic. And with a battery that doesn’t quit for up to 13 hours*, you have the freedom to go wherever you want. *Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. Workstation power has never looked so good Boasting ThinkPad’s signature black finish and encased in carbon-fiber and magnesium alloy, the ThinkPad P1 Gen 2 has the style to match the power inside. Purchase any UHD 4K display like the all-new OLED display and get our new carbon-fiber weave top and experience a design that is as modern and stylish as it is durable. At a mere 17.2mm thin, no one will mistake this machine for anything less than an ultra-premium must-have. Built for any environment Because you need reliability, the ThinkPad P1 Gen 2 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Small stature, immense capabilities It’s not just power that the ThinkPad P1 Gen 2 packs into its slim chassis. It's robust connectivity that makes the real difference—including two Thunderbolt™ 3 ports, as well as USB 3.1 and HDMI ports—it puts other ultrathin mobile workstations to shame. Protects your data and privacy Keep your business data—and your privacy—safe with the ThinkPad P1 Gen 2 mobile workstation’s security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The fingerprint reader uses biometrics to not only log you in with a simple touch, but protect you from spoofing attacks. Or, use the optional IR camera with Windows Hello to log in with your smile.



Specification:



Design
Product type	Notebook
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Display brightness	500 cd/m²
Contrast ratio (typical)	1200:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	15.6"
NTSC coverage (typical)	72%
Native aspect ratio	16:9
Processor
Processor generation	9th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	8 MB
Processor frequency	2.5 GHz
Processor model	i5-9400H
Processor boost frequency	4.3 GHz
Processor cores	4
Processor threads	8
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel® CM246
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Total storage capacity	512 GB
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	4 GB
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E9B
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Discrete graphics card model	NVIDIA® GeForce® GTX 1650 Max-Q
Discrete graphics memory type	GDDR5
Audio
Audio chip	Synaptic CX11880
Number of microphones	2
Audio system	Dolby Audio Premium
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Not installed
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
Combo headphone/mic port	Yes
USB Power Delivery	Yes
Charging port type	DC-in jack
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	4 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191078
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	14 h
Battery capacity	80 Wh
Fast charging	Yes
Power
AC adapter power	135 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	MIL-STD-810G
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	14.2" (361.8 mm)
Depth	9.67" (245.7 mm)
Height	0.724" (18.4 mm)
Weight	3.75 lbs (1.7 kg)
Packaging data
AC adapter included	Yes
Packaging content
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1100 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card	Yes
Audio system	Dolby Audio Premium
AC adapter included	Yes
