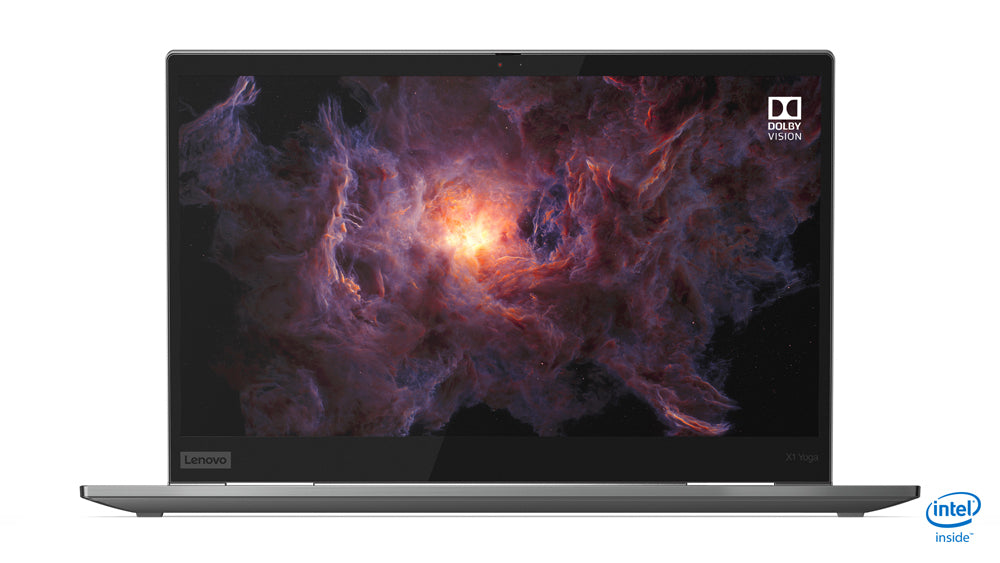

20SA000EUS - Lenovo THINKPAD X1 YOGA 4TH GENERATION, INTEL CORE I7-10510U (1.80GHZ, 8MB), 14.0 3840X

The ultimate in flexibility Thinner. Lighter. More secure. The ThinkPad X1 Yoga Gen 4 features the renowned 360-degree hinge to accommodate your style. This 14" 2-in-1 laptop features a built-in suite of ThinkShield security features to protect all your critical data. And with the choice of a 4K display with Dolby Vision™ and Dolby Atmos™ Speaker System, you can take your creativity—and your entertainment—to new levels. Leave your power cord behind At 17% smaller than its predecessor, the X1 Yoga Gen 4 features a lightweight aluminum chassis. This 2-in-1 weighs only 1.35kg. With a battery life of up to 18 hours, it begs to accompany you everywhere.* And when you do need more juice, Rapid Charge boosts your battery up to 80% in just 60 minutes—giving you 14.4 more hours unplugged. * Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. Raw power, super-speed Powered by 8th Gen Intel® Core™ processors and robust memory, the X1 Yoga Gen 4 packs a big punch. The PCIe solid-state drive (SSD) delivers speedy performance sure to delight with its responsiveness. Unlimited creativity The X1 Yoga Gen 4 includes a rechargeable ThinkPad Pen Pro. Sketch. Sign documents. Take notes. Even color! Never worry about running out of ink or needing batteries, as it charges while it's stored in your system. Plus, with a garaged slot, you won't need to worry about misplacing or leaving it behind. Go ahead and create—there are no limits to where your imagination can take you. Like a cinema in your lap With the optional 4K High Dynamic Range (HDR) display, you'll enjoy life-like accuracy. Add Dolby Vision™ into the mix, and you’ll get vibrant visuals where colors pop, contrast is expanded, brightness increases, and details are much more refined. So whether you’re watching a video, Skyping across the world, or sketching, the X1 Yoga Gen 4 delivers a stunning experience. Or choose from several displays, including an FHD panel with PrivacyGuard if you're more concerned with screen security. Surround sound The X1 Yoga Gen 4 laptop includes surround-sound with the Dolby Atmos® Speaker System. Two up-firing speakers alongside the keyboard combine with two down-firing woofers on the bottom of the machine. The result? Enhanced audio that seemingly flows all around you. What’s more, four 360-degree microphones cancel unwanted noise when you’re on calls, and pick up your voice from across the room—so you can use voice activation to wake your system, play music, and more. Built for life's extremes Like all ThinkPad laptops, the X1 Yoga Gen 4 is tested against 12 military-grade requirements and more than 200 quality checks to ensure it runs in extreme conditions. From the Arctic wilderness to desert dust storms, from zero gravity to spills and drops, you can trust this laptop to handle whatever life throws your way. Well-connected When you’re out and about, the X1 Yoga Gen 4 2-in-1 laptop can keep you online even when there’s no WiFi. Choose the optional LTE-A card and the WWAN technology lets your laptop function like a smartphone—where there’s cellular service you can always jump online. And you can trust that your connection is secure. *WWAN must be configured at time of purchase, as it’s not upgradeable. We’ve got your back—and your front Keep your business data—and your privacy—safe with the X1 Yoga Gen 4 laptop’s comprehensive suite of ThinkShield security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 Pro security. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. And the fingerprint reader uses biometrics to log you in with a simple touch. For your eyes only As part of ThinkShield security, we offer a combination of hardware and software that work together to ensure what’s on your display is for your eyes only. PrivacyGuard is an electronic privacy filter built into your system that decreases the angle of vision on your display, such that only your eyes, when facing head-on, can see content. All others see a darkened screen. PrivacyAlert* is an integrated software that works with the IR camera to ensure that if others look over your shoulder, then a popup notifies you of the potential threat. *Requires the optional IR camera.



Specification:



Design
Colour name	Iron Grey
Product type	Hybrid (2-in-1)
Housing material	Aluminum, Magnesium
Form factor	Convertible (Folder)
Product colour	Gray
Display
Dual-screen	No
HD type	Quad HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	280 cd/m²
Contrast ratio (typical)	800:1
Touchscreen	Yes
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	2560 x 1440 pixels
Display diagonal	14"
NTSC coverage (typical)	72%
Native aspect ratio	16:9
Processor
Processor generation	10th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Comet Lake
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2, 1x2+2x1, 4x1
Maximum number of PCI Express lanes	16
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Processor cache	8 MB
Processor frequency	1.8 GHz
Processor model	i7-10510U
Processor boost frequency	4.9 GHz
Processor cores	4
Processor threads	8
System bus rate	4 GT/s
Processor socket	BGA 1528
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Configurable TDP-up frequency	2.3 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	On-board
Internal memory	16 GB
Internal memory type	LPDDR3-SDRAM
Memory clock speed	2133 MHz
Maximum internal memory	16 GB
Maximum internal memory (64-bit)	16 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe, PCI Express
Card reader integrated	No
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
Number of execution units	24
On-board graphics card ID	0x9B41
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	Not available
Audio
Audio chip	Realtek ALC3286
Number of built-in speakers	4
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Auto focus	No
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	5.0
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	1.4b
Combo headphone/mic port	Yes
Docking connector	Yes
USB Power Delivery	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Aluminum, Magnesium
Form factor	Convertible (Folder)
Product colour	Gray
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	46 x 24 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	196449
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	18.1 h
Battery capacity (Watt-hours)	51 Wh
Fast charging	Yes
Power
AC adapter power	65 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	No
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	12.7" (323 mm)
Depth	8.58" (218 mm)
Height	0.61" (15.5 mm)
Weight	3 lbs (1.36 kg)
Packaging data
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Warranty card	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	32 GB
WLAN controller model	Intel Dual Band Wireless-AC 9560
On-board graphics card	Yes
3D	No
Maximum internal memory (64-bit)	16 GB
AC adapter included	Yes
