| Design | |
|---|---|

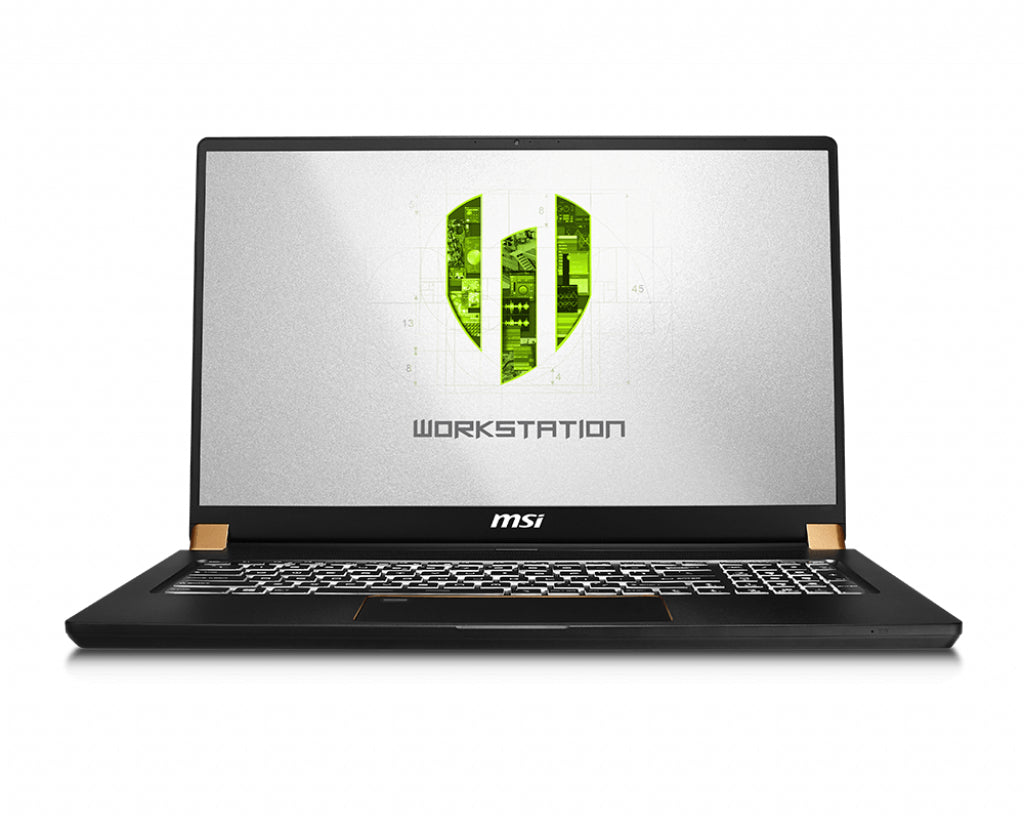

| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black, Gold |
| Display | |
| HD type | Full HD |
| Display surface | Matt |
| Panel type | IPS |
| LED backlight | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 17.3" |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 2.8 GHz |
| Processor model | E-2276M |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA1440 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Storage | |
| Storage media | SSD |
| SSD capacity | 512 GB |
| SSD interface | NVMe |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 6 GB |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E94 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Discrete graphics card model | NVIDIA Quadro RTX 3000 |
| Discrete graphics memory type | GDDR5 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Charging port type | DC-in jack |
| Keyboard | |
| Keyboard layout | QWERTY |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard backlit colour | White |
| Software | |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black, Gold |
| Discrete graphics card memory | 6 GB |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 42 x 28 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 192989 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Number of battery cells | 4 |
| Battery capacity (Watt-hours) | 82 Wh |
| Power | |
| AC adapter power | 180 W |
| Weight & dimensions | |
| Width | 15.6" (396.1 mm) |
| Depth | 10.2" (259.5 mm) |
| Height | 0.746" (18.9 mm) |
| Weight | 5.03 lbs (2.28 kg) |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card | Yes |
