7Z46A001NA - Lenovo THINKSYSTEM SE350 16GB

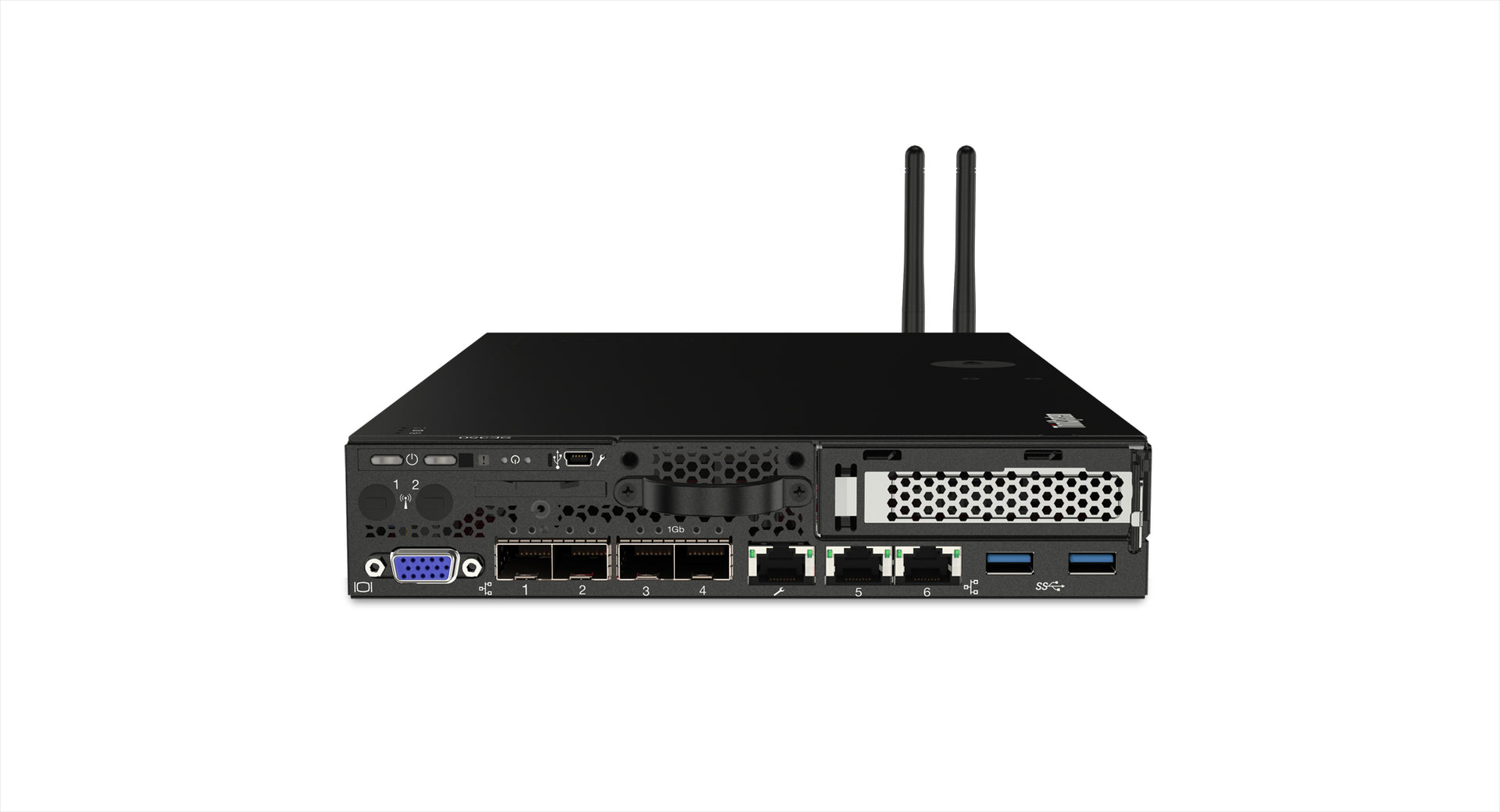

The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly. This product guide provides essential pre-sales information to understand the ThinkSystem SE350 edge server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SE350 and consider its use in IT solutions. Introduction The ThinkSystem SE350 is a purpose-built server that is half the width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, stacked on a shelf or mounted in a rack. The ThinkSystem SE350 puts increased processing power, storage and network closer to where data is generated, allowing actions resulting from the analysis of that data to take place more quickly. Suggested uses: edge computing (IoT, AI, machine learning), retail, video security, inventory management, building control, telecommunications, manufacturing, distribution Did you know? Customers looking for computing solutions at the edge of their networks often have to compromise -- to use either datacenter-class equipment which is too large and power hungry, or PC based equipment which can't run their enterprise level applications. The ThinkSystem SE350 fits the space between those two extremes. Its compact design, low power usage, and high performance are just the right combination for edge locations. The SE350 can be wall mounted, stacked on a shelf or installed in a rack. It is also designed to operate in rugged environments, up to 55°C.



Specification:



Processor
Thermal Monitoring Technologies	Yes
Thermal Design Power (TDP)	60 W
Supported instruction sets	AVX 2.0
Stepping	M1
Scalability	1S
Processor threads	8
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR3ZW
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum number of PCI Express lanes	32
Maximum internal memory supported by processor	512 GB
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	Yes
Bus type	UPI
Processor cache	8 MB
Conflict-Free processor	Yes
Processor frequency	2.2 GHz
Number of processors installed	1
Processor model	D-2123IT
Processor boost frequency	3 GHz
Processor socket	FCBGA2518
Processor cores	4
Processor manufacturer	Intel
Processor family	Intel® Xeon® D
Memory
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	4
Memory clock speed	2666 MHz
Maximum internal memory	256 GB
Internal memory type	DDR4-SDRAM
ECC	Yes
Storage
Number of SSDs supported	4
Total storage capacity	480 GB
SSD interface	M.2
RAID support	Yes
RAID levels	0, 1, 5, 10
Optical drive type	No
Number of SSDs installed	1
Maximum storage capacity	15.68 TB
Network
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Serial ports quantity	1
Expansion slots
PCI Express slots version	3.0
Optical drive
Optical drive type	No
Design
Optical drive type	No
Chassis type	Rack (1U)
Product colour	Black
Performance
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification.
Performance management	XClarity Enterprise
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. Ubuntu Server certification.
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel® Secure Key	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Enhanced Halt State	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel QuickAssist Technology	No
Processor ARK ID	136429
CPU configuration (max)	1
Power
Number of redundant power supplies installed	1
Redundant power supply (RPS) support	Yes
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Ethernet interface type	10 Gigabit Ethernet, Gigabit Ethernet
CPU configuration (max)	1
Chassis type	Rack (1U)
Management features
Performance management	XClarity Enterprise
Weight & dimensions
Width	8.23" (209 mm)
Weight	8.27 lbs (3.75 kg)
Height	1.69" (43 mm)
Depth	14.8" (376 mm)
Other features
CPU configuration (max)	1
