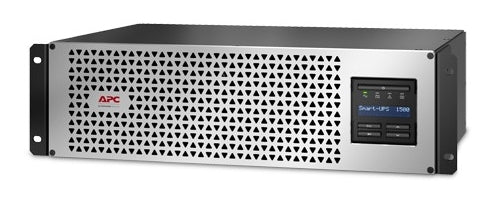

SMTL1500RM3UC - APC SMART-UPS LI-ION, SHORT DEPTH 1500VA, 120V WITH SMARTCONNECT

APC is the industry leader in network and server UPSs Smart-UPS with lithium-ion batteries saves up to 47% in Total Cost of Ownership (TCO) over the lifetime of the UPS. Battery life is increased 2X. Reduced maintenance cost and improved battery performance in temperatures up to 104°F. UPS management options include Powerchute Business Edition, APC SmartConnect, Network Management Cards and EcoStruxure IT. The additional benefit of a 12-inch short-depth chassis allows this UPS to be installed in any 4-post rack and most wall-mount racks. The APC Smart-UPS Lithium-ion (Li-ion) UPS provides pure sine wave output power protection for servers, voice/data networks, medical labs and light industrial applications. As one of the world’s largest and most respected power protection designers and manufacturers, APC is relied upon daily for power protection and availability. APC products offer the maximum level of protection, safety, convenience, and reliability. Everything you love about Smart-UPS now with lithium-ion batteries! APC is the industry leader in network and server UPS - Lithium-Ion battery provides twice the services life of the lead-acid batteries typically used in (Uninterruptible Power Supplies) UPS - Intelligent battery management system Li-ion batteries are monitored at an individual cell level to manage voltage and temperatures of the set of cells. This helps the Li-ion batteries to provide a higher level of safety. - High-efficiency green mode Achieves up to 97% percent efficiency, which minimizes utility and cooling costs without compromising performance or reliability. Smart-UPS SMTL1500RM3UC - Alphanumeric LCD Display Intuitive interface provides detailed and accurate information with ability to configure locally-function LCD display - Built-in energy meter Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking. - Flash upgradeable firmware Allows for field updates of firmware via communication ports or Network Management Card (NMC) Smart-UPS SMTL1500RM3UC Switchable outlet group Ability to control a group of output load receptacles independent from the main UPS. Enables: - Cycling the entire UPS - Sequenced turn ON/OFF - Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload) - Scheduled time OFF to conserve energy - Rebooting hung device without



Specification:



Power
Output frequency	50/60 Hz
Output voltage regulation	5%
Output power	1920 W
Input operation voltage (min)	82 V
Input operation voltage (max)	144 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	530 J
Efficiency	96%
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Performance
UPS topology	Line-Interactive
Waveform	Sine
LED indicators	Yes
Noise level	55 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Waveform	Sine
Output voltage regulation	5%
Output power	1920 W
Input operation voltage (min)	82 V
Input operation voltage (max)	144 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	530 J
Efficiency	96%
Noise level	55 dB
Output power capacity	2.2 kVA
Input frequency	50/60 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
AC outlets quantity	8 AC outlet(s)
AC outlet types	NEMA 5–15R,NEMA 5–20R
Ethernet LAN (RJ-45) ports	1
Battery
Battery technology	Lithium-Ion (Li-Ion)
Typical backup time at half load	12 min
Typical backup time at full load	6 min
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black, Silver
Certification	CSA C22.2 No 107.1, CULus, FCC part 15 class A, UL 1778, UL 1973
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 300000" (0 - 7620 m)
Technical details
Output frequency	50/60 Hz
Weight & dimensions
Weight	70.3 lbs (31.9 kg)
Width	17" (432.1 mm)
Height	3.39" (86.1 mm)
Depth	26.9" (683 mm)
Package width	23.6" (600 mm)
Package depth	38.6" (980.4 mm)
Package height	10" (254 mm)
Package weight	86.4 lbs (39.2 kg)
Packaging data
Package width	23.6" (600 mm)
Package depth	38.6" (980.4 mm)
Package height	10" (254 mm)
Package weight	86.4 lbs (39.2 kg)
Certificates
Certification	CSA C22.2 No 107.1, CULus, FCC part 15 class A, UL 1778, UL 1973
