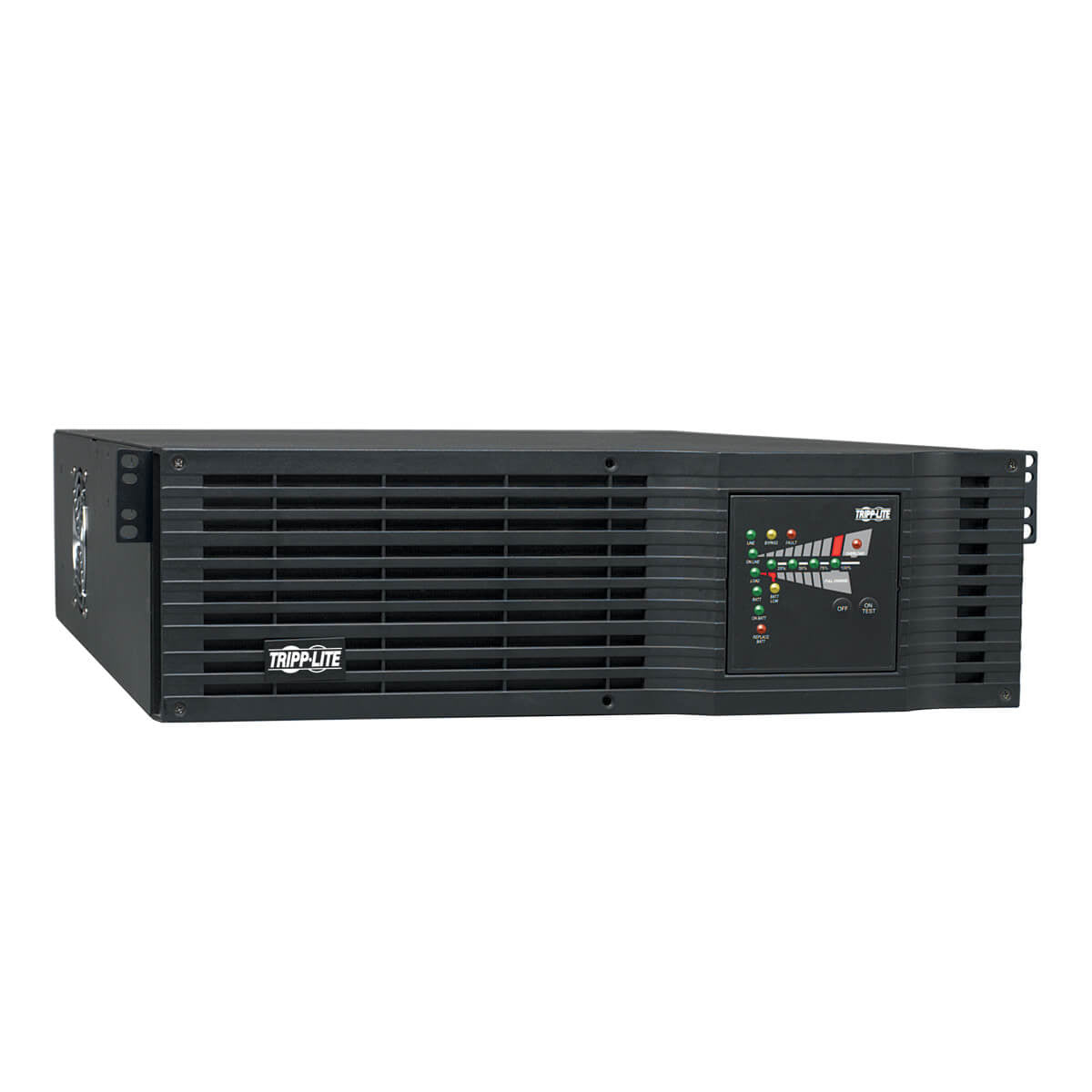

SU3000RTXR3U - Tripp Lite 3000VA 2400W UPS SMART ONLINE RACKMOUNT 110V / 120V USB DB9 3URM

3000VA / 3kVA online, double-conversion UPS system for critical server, network and telecommunications equipment. "XR" configuration offers twice the battery capacity as comparable "XL" version. 3U rackmount form factor with an installed depth of 26 inches (66cm). Expandable battery runtime with optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs. Full time sine wave 110 or 120V output with +/-2% voltage regulation. Online, double-conversion Uninterruptible Power Supply (UPS) actively converts raw incoming AC power to DC, then re-converts output back to completely regulated, filtered AC output. Operates continuously without using battery power during brownouts to 65V and overvoltages to 150V. Highly efficient operation in optional economy mode setting, saves BTU heat output and energy costs. NEMA L5-30P input plug. NEMA 5-15R, NEMA 5-15/20R and NEMA L5-30R output receptacles. Network-grade AC surge and noise suppression. Zero transfer time between AC and battery operation. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. Includes USB and DB9 serial ports. Built-in DB9 port offers both enhanced RS-232 enabled monitoring data, plus contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and mains power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated two bank PDU switching supports load shedding and remote-reboot of connected equipment. Multi-stage metered current monitoring and battery charge status LEDs. LED display panel easily rotates for better viewing in rackmount or tower configurations. Dataline surge suppression for dialup, DSL or network ethernet connection. Mains power and voltage regulation LEDs. Audible Alarm. Self-test. Fault-tolerant auto-bypass mode. 4 post rackmount accessories included; 2-9USTAND tower kit and 2POSTRMKITHD 2-post rackmount accessories available. Field replaceable, hot swappable internal batteries and external battery packs. Attractive all-black UPS design. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only). - SmartOnline high power density UPS system is ideal for critical voice, data, medical and industrial network applications - Special "XR" version offers larger internal batteries for longer runtimes than standard "XL" model - True online, double-conversion UPS provides perfectly regulated sine wave output within 2% of 110/120V (user selectable) under all usage conditions - Maintains continuous operation through blackouts, voltage fluctuations and surges with zero transfer time - Removes harmonic distortion, fast electrical impulses, frequency variations and other hard to solve power problems not addressed by other UPS types - Corrects line voltage conditions as low as 65V and as high as 150V back to selectable 110/120V (+/-2%) values - Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs - Standard internal battery set offers 30 minutes runtime at half load (1200W) and 12 minutes at full load (2400W) - Optional BP72V15-2U (limit 1), BP72V28RT-3U (multi-pack compatible) and BP72V18-2US (multi-pack compatible) external battery packs - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) - Compact rackmount form factor installs using only 3 rack spaces (3U) with a maximum installed depth of 26 inches - Ships with all mounting accessories for 4 post rackmount installation - Optional 2POSTRMKITHD enables 2 post rackmount installation - Optional 2-9USTAND accessory enables small-footprint upright tower placement - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions - Network interfaces support simultaneous communications via built-in USB, DB9 serial/contact-closure and SNMPWEBCARD slot - HID compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - Included PowerAlert UPS monitoring software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP - UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, AC line frequency, timed inverter shutoff, activate self-test, load bank output power control and remote reboot, UPS nominal voltage adjustment and UPS line to battery power voltage setpoints - Built-in Emergency Power Off (EPO) interface with cable - NEMA L5-30P input plug/NEMA 5-15/20R & NEMA L5-30R output receptacles - Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual load banks (each bank has four outlets) - Front panel LEDs offer current monitoring and battery charge level information - UPS ships fully assembled in full compliance with DOT regulations, no time consuming connection of internal batteries by user required - Single line TEL/DSL or network ethernet line surge suppression - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)



Specification:



Power
Output voltage regulation	4%
Output power factor	0.9
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	127 V
Surge energy rating	570 J
Maximum current	24 A
Efficiency	94%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	50/60 Hz
Ports & interfaces
Cable length	118.1" (3 m)
AC outlets quantity	9 AC outlet(s)
AC outlet types	NEMA 5–15R, NEMA 5–20R, NEMA L5-30R
Power plug	NEMA L5-30P
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection features	Network
Power protection features	Over voltage, Under voltage
Noise level	51.5 dB
Audible alarm(s)	Yes
Features
Country of origin	China
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	4%
Output power factor	0.9
Output power	2700 W
Input operation voltage (min)	100 V
Input operation voltage (max)	127 V
Output operation voltage (min)	100 V
Output operation voltage (max)	127 V
Surge energy rating	570 J
Maximum current	24 A
Efficiency	94%
EMI/RFI noise filtering	Yes
Surge protection features	Network
Emergency Power Off (EPO)	Yes
Power protection features	Over voltage, Under voltage
Noise level	51.5 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	3 kVA
Input frequency	50/60 Hz
Battery
Battery voltage	72 V
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at half load	13.2 min
Typical backup time at full load	4.1 min
Hot-swap battery	Yes
Cold start	Yes
Design
Country of origin	China
Form factor	Tower
LED indicators	Yes
Product colour	Black
Cooling type	Active
Certification	UL1778 (USA) CSA (Canada) NOM (Mexico) FCC Part 15 A (EMI)
Cable length	118.1" (3 m)
Built-in fan	Yes
Housing material	Steel
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Sustainability certificates	RoHS
Cooling
Cooling type	Active
Built-in fan	Yes
Weight & dimensions
Package width	23.3" (591.8 mm)
Package depth	12.6" (320 mm)
Package height	14.7" (373.4 mm)
Weight	70.5 lbs (32 kg)
Width	9" (228.6 mm)
Package weight	76.1 lbs (34.5 kg)
Height	10.2" (259.1 mm)
Depth	19.5" (495.3 mm)
Packaging data
Package width	23.3" (591.8 mm)
Package depth	12.6" (320 mm)
Package height	14.7" (373.4 mm)
Package weight	76.1 lbs (34.5 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	23.3" (591.8 mm)
Master (outer) case length	12.6" (320 mm)
Master (outer) case height	14.7" (373.4 mm)
Master (outer) case gross weight	76.1 lbs (34.5 kg)
Certificates
Certification	UL1778 (USA) CSA (Canada) NOM (Mexico) FCC Part 15 A (EMI)
Other features
Output connection type	8 x 5-15/20R & 1 x L5-30R
