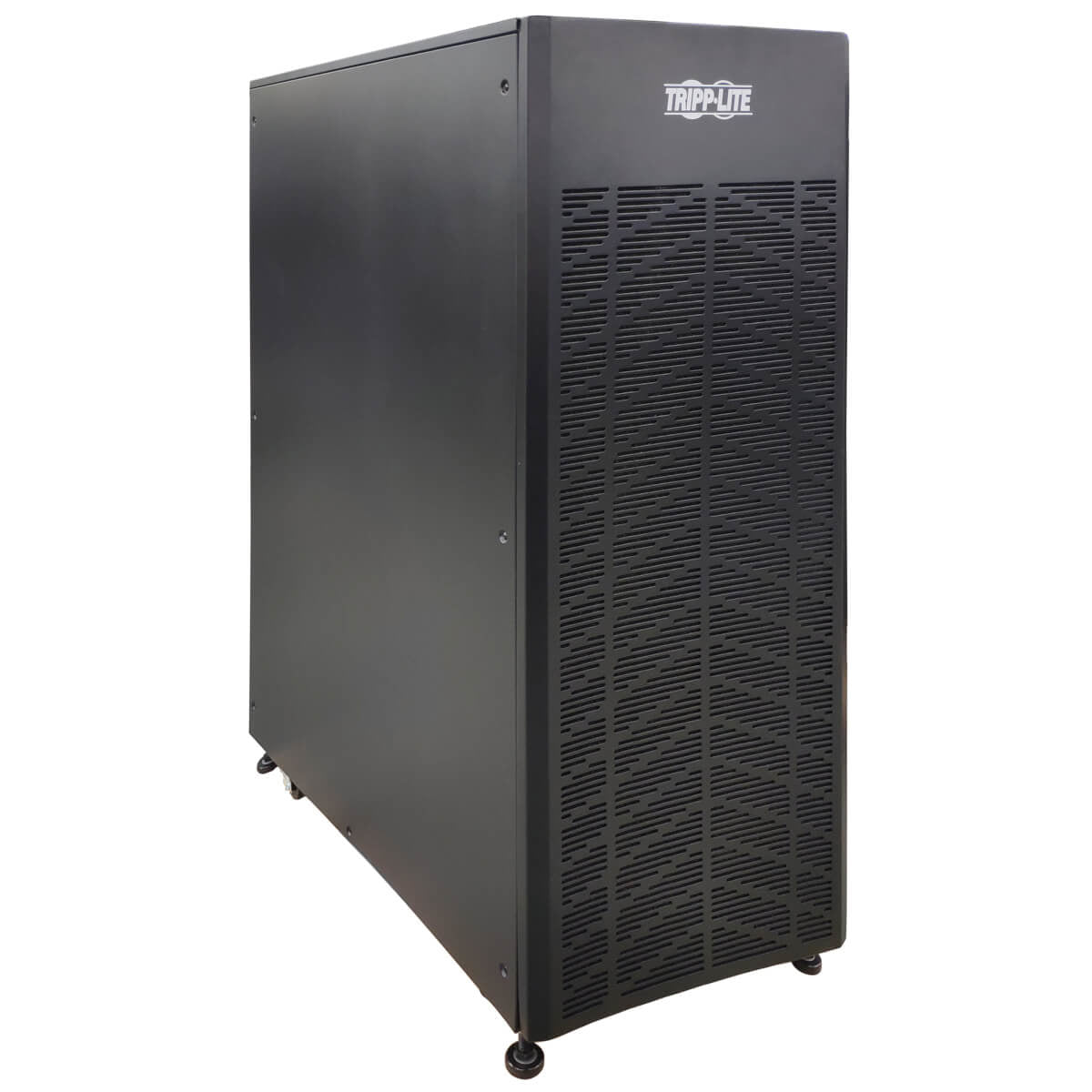

External battery pack provides extended backup runtime for Tripp Lite 10-20K S3M-Series 3-phase UPS systems.
±120VDC Battery Cabinet Gives Your Compatible 3-Phase UPS Extended Runtime This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V40-NIB can also be daisy-chained to other external battery cabinets for even longer extended-run operation.
Rugged Steel Construction Designed to Last in Demanding IT Applications The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the user-installed internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent.
Ships Ready for Immediate Battery Installation Pre-installed rolling casters allow easy adjustment at the installation location. Adjustable levelers support secure long-term deployment on a stable surface. All required internal battery cabling is included. External battery cables feed into the cabinet through conduit knockouts built into the bottom panel.
Typical Applications - Extend the runtime of your compatible Tripp Lite UPS system to maintain operation during all power conditions - Daisy-chain to additional battery cabinets to provide even longer extended-run operation for backing up essential equipment - Customize your application with the internal batteries of your choice
System Requirements Tripp Lite 3-phase 208V UPS models S3M10K-NIB, S3M15K-NIB, S3M20K-NIB, S3M25K, S3M30K or other UPS specifying compatibility.
Specification:
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Housing material |
Steel |
| Compatible products |
S3M10K-NIB, S3M15K-NIB, S3M20K-NIB, S3M25K, S3M30K, S3M50K |
| Battery |
|---|
| Number of batteries supported |
20 |
| Weight & dimensions |
|---|
| Width |
31.5" (800.1 mm) |
| Depth |
35.4" (899.2 mm) |
| Height |
47.2" (1198.9 mm) |
| Weight |
459 lbs (208.2 kg) |
| Package width |
36.2" (919.5 mm) |
| Package depth |
41.2" (1046.5 mm) |
| Package height |
54.9" (1394.5 mm) |
| Package weight |
591.3 lbs (268.2 kg) |
| Packaging content |
|---|
| Quantity |
1 |
| Manual |
Yes |
| Technical details |
|---|
| Sustainability certificates |
RoHS |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case width |
36.2" (919.5 mm) |
| Master (outer) case length |
41.2" (1046.5 mm) |
| Master (outer) case height |
54.9" (1394.5 mm) |
| Master (outer) case gross weight |
591.3 lbs (268.2 kg) |
| Products per master (outer) case |
1 pc(s) |
