Description

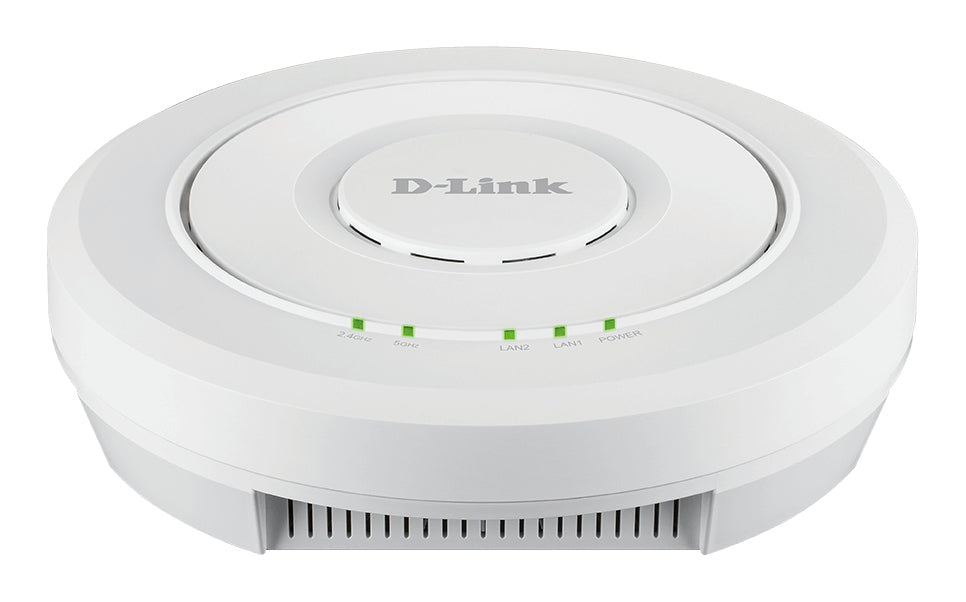

Wave 2 has landed. Connect to more. Unparalleled performance makes the DWL‑6620APS Wireless AC1300 Wave 2 Unified Access Point a must‑have upgrade that allows your wireless customers in high‑density areas to reliably connect to more, with faster throughput and flexibility. Perfect for medium to large‑scale Wi‑Fi networks. Smart Antenna Technology D‑Link’s Smart Antenna technology processes algorithms used to identify spatial signal signatures such as Direction Of Arrival, and uses them to calculate beamforming vectors which are then used to target the wireless client and achieve the best possible throughput. The fast channel selection feature scans all channels and rapidly selects the one with the least interference. And the Null Steering capability curtails the power in the direction of interference to mitigate its influence. With these capabilities the D-Link Smart Antenna strengthens the connection reliability in real-time and delivers an optimised wireless user experience. Greater Speed & Connectivity It provides unparalleled connectivity by using the 802.11ac Wave 2 standard. High combined data rates of 1267 Mbps (867 Mbps for 802.11ac and 400 Mbps for 802.11n) can be delivered over the air and Wi-Fi Multimedia (WMM) together with 802.1p Quality of Service (QoS) can give time-sensitive traffic like Voice over IP (VoIP) or video streaming a higher priority ahead of other traffic. Efficiency multiplied Support for 802.11ac Wave 2 MU-MIMO technology enables the access point to communicate with multiple clients simultaneously, resulting in significantly improved network capacity and throughput. Dual‑Band Wireless for efficient performance The 2.4 GHz and high-speed 5 GHz AC channels and band steering technology makes your business network flexible by automatically placing clients on the optimal band for their needs like casual web browsing, and data-hungry operations like video streams and large file transfers. Airtime fairness ensures that equal airtime is given to each client, providing improved performance even when slower devices are connected. Centrally Manage your Wireless Network When deployed in combination with D-Link Wireless Controllers (DWC-1000/DWC-2000), up to 1,024 DWL-6620APS access points can be centrally managed. Once the APs are discovered by the controller, any configuration can be pushed to them as a group, instead of doing so individually. Additionally, Radio Frequency (RF) resource management1 allows wireless coverage to be managed centrally, providing the best coverage possible for wireless clients. Guaranteed round‑the‑cloud tech response, even on weekends & bank holidays Protect your network uptime with optional rapid-response tech support, designed to ensure businesses get the best fit solution for their unique environment. Our warranties and extended service packages reduce downtime, extend the lives of the products, and maximise your up-time by solving technical problems quickly and effectively.
Specification:
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2533 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, |
| Maximum data transfer rate | 2533 Mbit/s |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Command-line interface (CLI) | Yes |
| Certificates | |
| Certification | CE, |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2533 Mbit/s |
| Fast roaming | Yes |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Maximum data transfer rate (2.4 GHz) | 800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1733 Mbit/s |
| Security | |
| Number of SSID supported | 32 |
| Auto Wireless Distribution System (WDS) | Yes |
| Security algorithms | AES, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 24.24 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 2.5 A |
| AC input voltage | 12 V |
| Design | |
| Housing material | Plastic |
| Product colour | White |
| Certification | CE, |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 40% |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | 10 - 90 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Shipping (inner) case width | 12.3" (31.2 cm) |
| Shipping (inner) case net weight | 16.2 lbs (7.33 kg) |
| Shipping (inner) case length | 17.7" (44.9 cm) |
| Shipping (inner) case height | 12.9" (32.8 cm) |
| Products per shipping (inner) case | 5 pc(s) |
| Products per pallet (sea) | 150 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross width | 47.2" (120 cm) |
| Pallet gross length | 43.3" (110 cm) |
| Pallet height (sea) | 69.9" (177.5 cm) |
| Pallet height (air) | 57" (144.7 cm) |
| Pallet gross weight (sea) | 599.7 lbs (272 kg) |
| Pallet gross weight (air) | 490.1 lbs (222.3 kg) |
| Master (outer) cases per pallet (sea) | 30 pc(s) |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Shipping (inner) case gross weight | 18.1 lbs (8.2 kg) |
| Harmonized System (HS) code | 85176990 |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 8.66" (220 mm) |
| Weight | 27.9 oz (790 g) |
| Height | 1.85" (47 mm) |
| Package width | 11.6" (295 mm) |
| Package depth | 11.7" (296 mm) |
| Package height | 3.7" (94 mm) |
| Package weight | 3.24 lbs (1.47 kg) |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 11.6" (295 mm) |
| Package depth | 11.7" (296 mm) |
| Package height | 3.7" (94 mm) |
| Package weight | 3.24 lbs (1.47 kg) |
| Number of products included | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Number of products included | 1 pc(s) |
