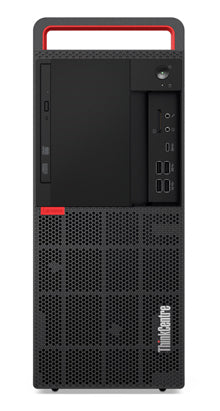

10SF0008US - Lenovo M920T,W10P,I5,4GB,16GB,1TB,3YR

Perfect for users, even better for IT managers Power packed and business ready, the ThinkCentre M Series, which includes the Tower, SFF, Tiny, and Thin Client, is the perfect choice for progressive IT managers looking for high-performance, reliable, and secure desktops. Easy to set up, deploy, and manage in any office environment, they boast the latest processing, memory, and storage technology, and have a number of high-capacity storage options. In addition, they come with robust security features to safeguard your critical data and the built-in reliability your organization can count on. Get everything done, quickly and efficiently Powered by Intel® 8th Generation Core™ i with vPro™ processors and backed by lightning-fast DDR4 memory, the ThinkCentre M920 Tower can handle everything, from multitasking and everyday computing to data-intensive files. Ready for the future, now With next-gen NVIDIA® GeForce® GTX VR Ready graphics, the ThinkCentre M920 Tower delivers the smoothest visual experience possible. Whatever you’re doing, from virtual reality to high-end graphic design, lagging and screen stuttering will be a thing of the past. Side angled view of Lenovo ThinkCentre M920 Tower alongside monitor, wireless keyboard and mouse What are you waiting for? For an even faster, smoother, and more responsive PC experience, opt for a hard drive with Intel® Optane™ memory. By recognizing the way you work, this smart next-gen technology accelerates everything—from booting up and opening large apps, to finding files fast and multitasking seamlessly. One well-connected, high-speed PC When it comes to connecting your computing accessories and smart devices, the ThinkCentre M920 Tower has more than enough ports, including USB-C and USB 3.1 Gen 2 technology. What’s more, these high-speed ports are conveniently located for quick, easy access. Send would-be hackers packing To help safeguard your data, each ThinkCentre M920 Tower comes with Smart USB Protection. This enables you to restrict what USB devices can access your system. In addition, there's TPM, or the Trusted Platform Module, providing hardware-based security, including the generating and storing of cryptographic keys. Extra peace of mind Because you can never be too careful, the ThinkCentre M920 Tower is fitted with a chassis lock. Powered by the motherboard, it protects key internal components by locking the chassis from the inside should someone try to tamper with it. You can also secure the side panel with a padlock Side view of Lenovo ThinkCentre M920 Tower alongside monitor, wireless keyboard and mouse Reliable & durable, guaranteed Like every ThinkCentre before it, the ThinkCentre M920 Tower has been rigorously tested to MIL-SPEC standards. It’s proven to work in almost any environment, from the cold of the arctic to the sand and heat of the desert—and everywhere in between. Go green, save green With Energy Star® 7.0 and EPEAT™ Gold ratings, the ThinkCentre M920 Tower is proven to be extremely energy efficient, resulting in cost savings for you in the long run. It also runs very quietly and proudly bears the world's first Ultra Low Noise Certificate, awarded by TÜV Rheinland.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i5
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No
Conflict-Free processor	Yes
Processor cache	9 MB
Processor frequency	3 GHz
Processor model	i5-8500
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.1 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	6
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel Core i5
Memory
Non-ECC	Yes
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	DVD±RW
SSD interface	M.2
SSD capacity	512 GB
Number of SSDs installed	1
Total storage capacity	512 GB
Graphics
On-board graphics adapter dynamic frequency (max)	1100 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E92
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics 630
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	2
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Motherboard chipset	Intel Q370
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	18 L
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Performance
Embedded options available	Yes
Audio chip	Realtek ALC233VB2
Password protection	Yes
Password protection type	HDD, Power on, Supervisor
Product type	PC
Audio system	High Definition Audio
Motherboard chipset	Intel Q370
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	129939
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply	250 W
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	18 L
Width	6.5" (165 mm)
Depth	12.7" (321.4 mm)
Height	16.2" (410.2 mm)
Weight	15.4 lbs (7 kg)
Packaging content
Manual	Yes
Display included	No
Power cord included	Yes
Other features
On-board graphics adapter	Yes
Optical drives quantity	1
Processor manufacturer	Intel
