Description

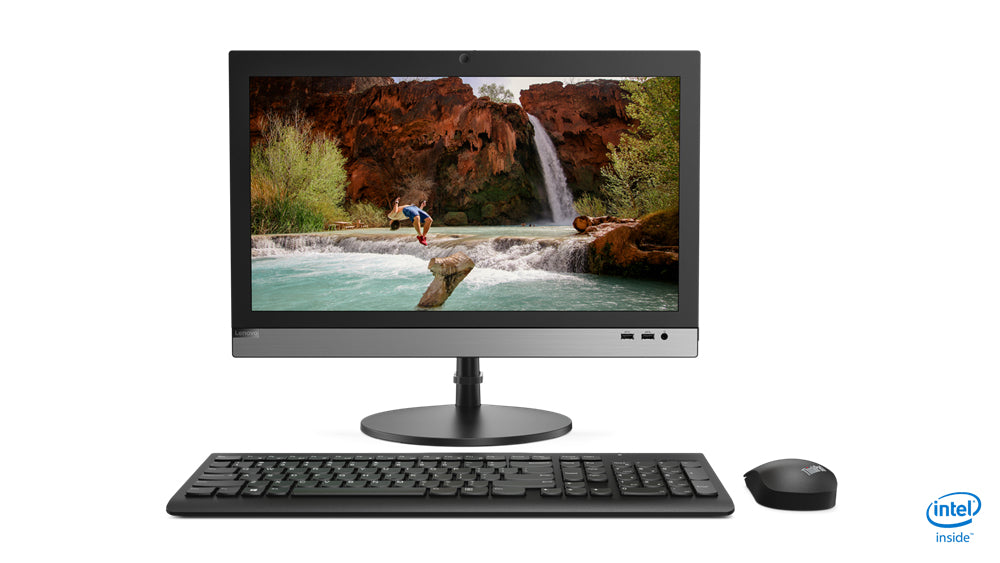

Give hackers the boot The V330 AIO's integrated firmware, Trusted Platform Module (TPM) 2.0, encrypts your data and your passwords. And its BIOS-based Smart USB Protection lets you further protect your data—simply configure the USB ports to respond only to specific devices, preventing unauthorized copying of files. Pin-stripe suit optional The V330 AIO exudes professionalism, thanks to its contemporary style and space-saving design—complete with a cable management system to reduce cord clutter. Give your business a memorable face. Performance you can count on With its 8th Gen Intel® Core™ processors and performance-enhancing memory, the V330 AIO will get the job done—it’s fast, responsive, and reliable. And optional high-speed PCIe solid state storage drives will enable you to switch between apps and handle large files easily. This AIO will help you maximize productivity—and your bottom line. Easy on the eyes Not only is the V330 AIO impressive to see, it helps avoid eye strain in the process. The 19.5-inch antiglare panel scatters light and the PC’s Low Blue Light Certification ensures your eyes will stay comfortable when working those long hours.
Specification:
| Processor | |
|---|---|
| Processor generation | 7th gen Intel® Core™ i5 |
| Stepping | B0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Kaby Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 65 W |
| Processor series | Intel Core i5-7400 Desktop Series |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 6 MB |
| Processor frequency | 3 GHz |
| Processor model | i5-7400 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.5 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i5 |
| Memory | |
| Non-ECC | Yes |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 2 x 4 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 256 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 1000 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 5912 |
| On-board graphics adapter family | Intel® HD Graphics |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® HD Graphics 630 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel® B150 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Housing material | Metal |
| Product colour | Black |
| Chassis type | SFF |
| Performance | |
| Embedded options available | No |
| Audio chip | Realtek ALC233 |
| Password protection | Yes |
| Password protection type | HDD, Power on |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel® B150 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR32W |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 97147 |
| Intel 64 | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 180 W |
| Certificates | |
| Certification | ErP Lot 3, WEEE |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 3.94" (100 mm) |
| Depth | 11.9" (303.5 mm) |
| Height | 10.8" (273.5 mm) |
| Weight | 9.37 lbs (4.25 kg) |
| Packaging content | |
| Manual | Yes |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Power cord included | Yes |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics adapter | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
