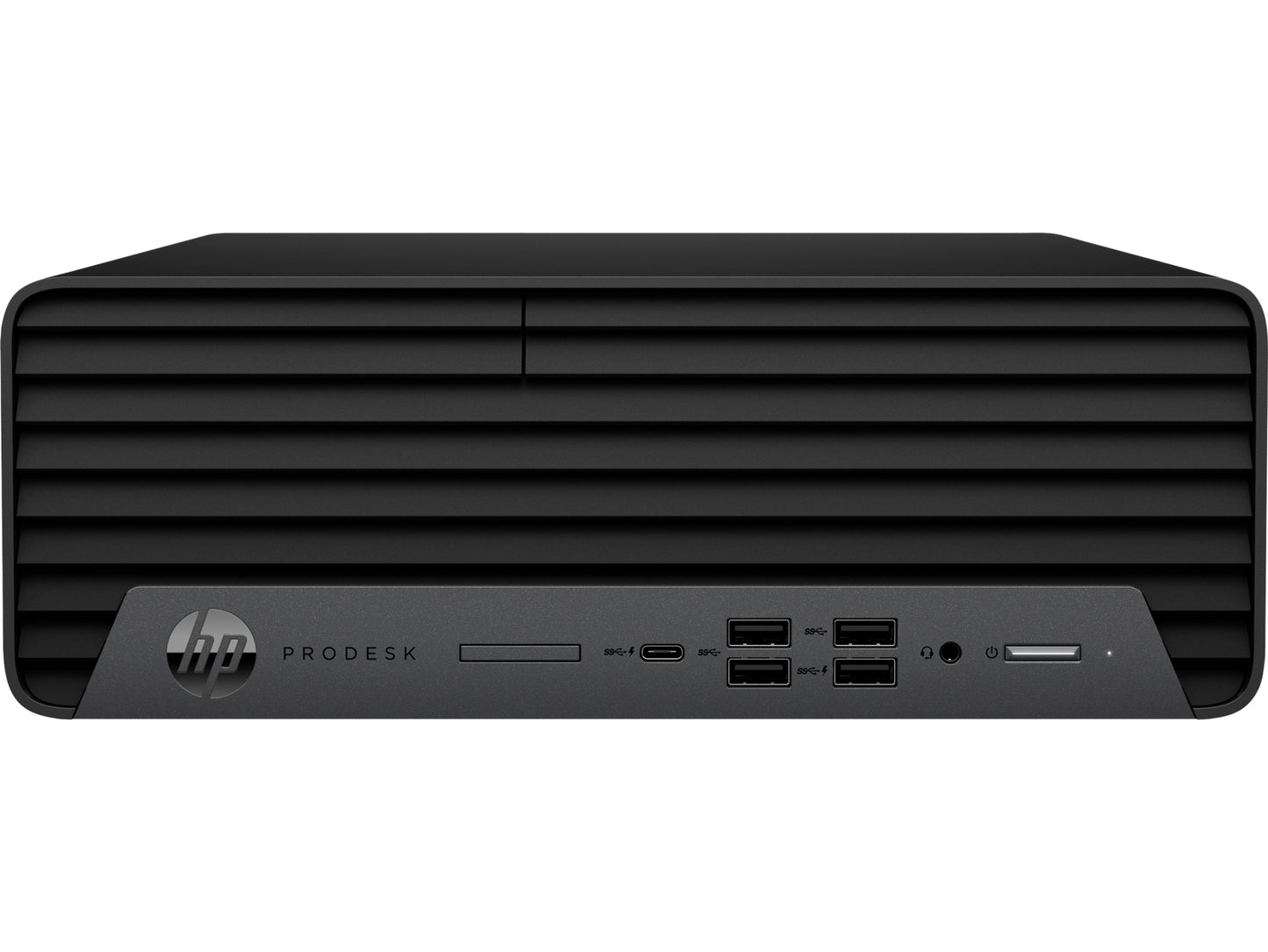

Performance and expandability easily managed The work you do is evolving and your PC needs to be flexible enough to handle expansion affordably and fit in a small space. The HP ProDesk 600 Small Form Factor packs the power and security you need into an efficient and easy to manage business ready PC.
Specification:
| Processor | |
|---|---|
| Stepping | C0 |
| Processor operating modes | 32-bit, 64-bit |
| Processor lithography | 22 nm |
| Processor codename | Haswell |
| Bus type | DMI2 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Thermal Design Power (TDP) | 84 W |
| Processor series | Intel Xeon E3-1200 v3 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| FSB Parity | No |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
| Processor cache type | Smart Cache |
| Conflict-Free processor | No |
| Processor cache | 8 MB |
| Processor frequency | 3.3 GHz |
| Processor model | E3-1226V3 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.7 GHz |
| System bus rate | 5 GT/s |
| Processor socket | LGA 1150 (Socket H3) |
| Processor threads | 4 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel® Xeon® E3 V3 Family |
| Memory | |
| Internal memory | 4 GB |
| Memory layout (slots x size) | 1 x 4 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| RAID support | Yes |
| Number of HDDs installed | 1 |
| Optical drive type | DVD±RW |
| HDD capacity | 1000 GB |
| HDD speed | 7200 RPM |
| HDD interface | SATA |
| RAID levels | 0, 1 |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| Total storage capacity | 1000 GB |
| Graphics | |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 11.2 |
| Number of execution units | 20 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics P4600 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| DisplayPorts quantity | 2 |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Product type | Workstation |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 1 |
| Motherboard chipset | Intel® C226 |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Design | |
| Product colour | Black |
| Chassis type | SFF |
| Placement supported | Horizontal/Vertical |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 1 |
| Performance | |
| Embedded options available | No |
| Product type | Workstation |
| Motherboard chipset | Intel® C226 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 7 Professional |
| Processor special features | |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel Clear Video Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Thermal solution specification | PCG 2013D |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 22 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel I/O Acceleration Technology | Yes |
| Intel Dual Display Capable Technology | No |
| Conflict-Free processor | No |
| Processor ARK ID | 80917 |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Power | |
| Power supply | 240 W |
| Sustainability | |
| Sustainability certificates | RoHS, EPEAT Gold, ENERGY STAR |
| Weight & dimensions | |
| Width | 13.3" (338 mm) |
| Depth | 15.5" (394.5 mm) |
| Height | 4.02" (102 mm) |
| Weight | 17.2 lbs (7.8 kg) |
| Packaging content | |
| Mouse included | No |
| Display included | No |
| Keyboard included | No |
| Other features | |
| On-board graphics card | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
