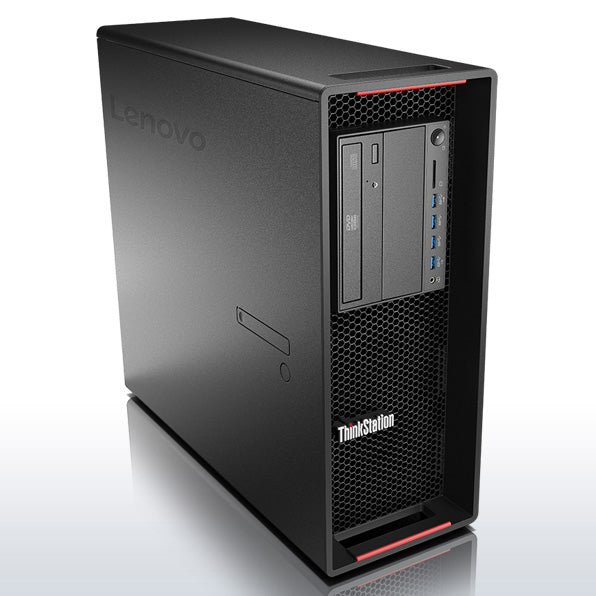

30B50062US - Lenovo P510,W7P,E5,16GB,512GB,3YR

Usability. Reliability. Performance. The Intel® Xeon® E5-1600 v4 Series Processor with Turbo Max 3.0 and NVIDIA® Quadro® graphics deliver powerful performance with ISV certifications, fully customisable storage, memory, power and I/O configurations. Unmatched Reliability ThinkStation P Series workstations run cooler than ever thanks to our advanced Tri-Channel cooling and innovative air baffle design. Priority Technical Support 24x7 make the P510 perfect for mission-critical tasks. Innovative Features Modular design makes tool-less upgrades a snap for fully configurable storage, multiple graphics cards and swappable power supplies No-hassle Deployment Advanced Deployment Services include custom image load and creation, and asset tagging to protect your investment. Includes Lenovo Services for Enterprise Business Class Support. Suitable for Tech-hungry Industries Perfectly suited for any industry that requires reliability and performance. From manufacturing to media, design to database management, the ThinkStation P510 boasts Lenovo know-how and cutting edge technology inside at a winning price.



Specification:



Processor
Stepping	R0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Bus type	QPI
Maximum internal memory supported by processor	1536 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400 MHz
Thermal Design Power (TDP)	140 W
Tcase	69 °C
Processor series	Intel Xeon E5-1600 v4
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	76.8 GB/s
ECC supported by processor	Yes
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	15 MB
Processor frequency	3.6 GHz
Processor model	E5-1650V4
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4 GHz
Processor socket	LGA 2011-v3
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel® Xeon® E5 v4
Memory
Internal memory	8 GB
Memory layout (slots x size)	1 x 8 GB
Maximum internal memory	64 GB
Memory slots	8x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Quad-channel
Storage
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD size	3.5"
Card reader integrated	Yes
Total storage capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	5 GB
On-board graphics adapter	No
Discrete graphics adapter model	NVIDIA® Quadro® P2000
On-board graphics adapter model	Not available
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	4
Serial ports quantity	1
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	2
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express x1 (Gen 3.x) slots	2
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Number of 5.25" bays	2
Motherboard chipset	Intel® C612
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	36 L
Product colour	Black
Chassis type	Tower
Number of 5.25" bays	2
Performance
Embedded options available	No
Audio chip	Realtek ALC662
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Motherboard chipset	Intel® C612
Software
Operating system architecture	64-bit
Operating system installed	Windows 7 Professional
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX 2.0
Scalability	1S
Processor package size	45 x 52.5 mm
Processor code	SR2P7
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	92994
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Physical Address Extension (PAE)	46 bit
Power
80 PLUS certification	80 PLUS Gold
Power supply	490 W
Weight & dimensions
Volume	36 L
Width	6.89" (175 mm)
Depth	18.5" (470 mm)
Height	17.3" (440 mm)
Weight	48.9 lbs (22.2 kg)
Packaging content
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics adapter	No
Optical drives quantity	1
Processor manufacturer	Intel
