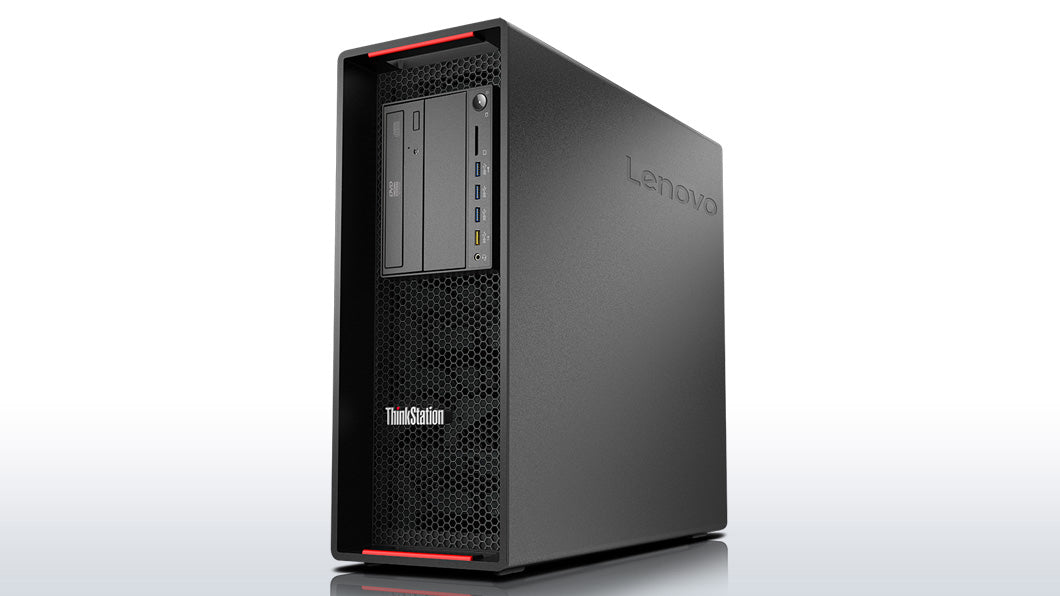

30B7001MUS - Lenovo P710,WIN10P,E5,16GB,1TB+256SSD,3YR

Powerful Performance Thanks to the increased performance of the latest Intel® Xeon® E5-2600 v4 series processors and NVIDIA® Quadro® M6000 graphics, the ThinkStation P710 has the power and speed to handle your workload with ease, including the toughest ISV-certified applications. Higher Storage and Memory The 2400Mhz DDR4 memory – up to 192GB – has a higher bandwidth than the previous generation, for a faster response. And bigger, faster storage options – including up-to-1TB M.2 PCIe SSD with RAID capability and up-to-8TB 3.5” SATA HDDs – can be configured for up to 36TB total storage. Unparalleled Versatility The ThinkStation P710 features a superior modular design, including Flex Trays holding up to two drives per bay for versatility. Configure only the components you need, for the ultimate in usability and savings. Steadfast Reliability Patented Tri-Channel Cooling ensures each component receives cool air, using a unique air baffle. The ThinkStation P710 uses fewer fans and stays cooler than the competition, so it continues to run for less downtime and a higher bottom line. Ease of Use Intuitive red touch points guide you to quick and easy component changes – even to the motherboard and swappable power supply – without having to use a single tool. And best-of-breed cable management means no wires or plugs, and superior serviceability.



Specification:



Processor
Stepping	R0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Broadwell
Number of QPI links	2
Bus type	QPI
Maximum internal memory supported by processor	1536 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Thermal Design Power (TDP)	85 W
Tcase	74 °C
Processor series	Intel Xeon E5-2600 v4
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	68.3 GB/s
ECC supported by processor	Yes
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	20 MB
Processor frequency	2.1 GHz
Processor model	E5-2620V4
Number of processors installed	2
Processor manufacturer	Intel
Processor boost frequency	3 GHz
System bus rate	8 GT/s
Processor socket	LGA 2011-v3
Processor threads	16
Processor cores	8
PCI Express slots version	3.0
Processor family	Intel® Xeon® E5 v4
Memory
ECC	Yes
Internal memory	16 GB
Maximum internal memory	384 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Quad-channel
Storage
Storage media	HDD+SSD
Number of storage drives installed	2
RAID support	Yes
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
SSD capacity	256 GB
Number of SSDs installed	1
HDD size	3.5"
Card reader integrated	Yes
Total storage capacity	1256 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter	No
Discrete graphics adapter model	Not available
On-board graphics adapter model	Not available
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	4
Serial ports quantity	1
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	2
DVI port	No
Expansion slots
PCI Express x4 (Gen 2.x) slots	1
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	3
PCI slots	1
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	2
Number of 3.5" bays	4
Motherboard chipset	Intel® C612
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	2
Number of 3.5" bays	4
Performance
Embedded options available	Yes
Audio chip	Realtek ALC662
Product type	Workstation
Motherboard chipset	Intel® C612
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel HD Graphics	No
Intel Flex Memory Access	No
Intel® Smart Cache	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX 2.0
Scalability	2S
Processor package size	45 x 52.5 mm
Processor code	SR2R6
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	2
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Conflict-Free processor	Yes
Processor ARK ID	92986
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Physical Address Extension (PAE)	46 bit
Power
Power supply	850 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Weight & dimensions
Width	6.89" (175 mm)
Depth	19.1" (485 mm)
Height	17.6" (446 mm)
Weight	52.2 lbs (23.7 kg)
Packaging content
Manual	Yes
Mouse included	Yes
Display included	No
Keyboard included	Yes
Other features
On-board graphics adapter	No
Optical drives quantity	1
Processor manufacturer	Intel
