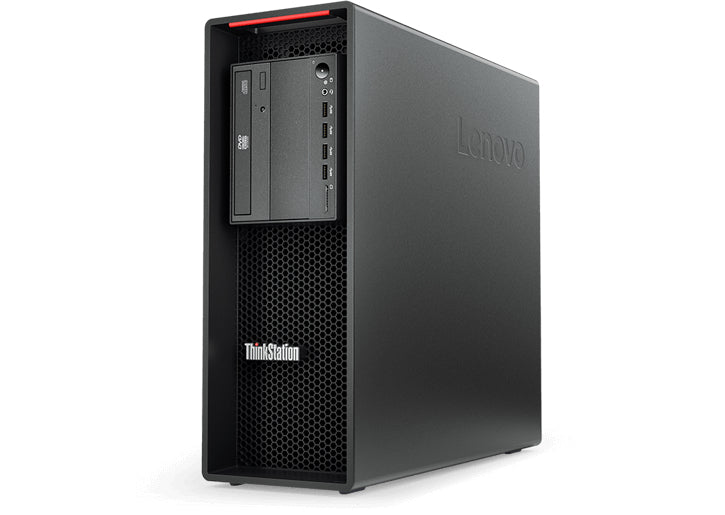

30BE0040US - Lenovo P520,W10P,W-2125,8GB,1TB,3YR

Performance you can count on Fueled by the latest Intel® Xeon® processors and NVIDIA® Quadro® graphics, the ThinkStation P520 delivers jaw-dropping performance and stunning visuals. Whether it's computer-aided drafting or 3D animation software, this tower has the processing and visual muscle to boost your creativity and productivity to new levels. Configurable and reliable Your P520 can be configured to meet your specific needs. Choose up to 256 GB of memory, and a variety of I/O configurations and storage options. However configure your P520, ThinkStation workstations are well known for their reliability. Get more done, quickly and easily With our patented Tri-Channel Cooling technology, the P520 manages internal air flow and power supply better than most workstations. As a result, it runs more smoothly and efficiently—even when handling large workloads. The P520 also supports RAID technology and has two M.2 PCIe SSD slots embedded on the motherboard, enabling you to enjoy blistering-fast storage speeds. Hassle-free, tool-free Should you ever need to swap any components, there’s no need to worry about tools and screws. Simply slide off the side panel and away you go. Lenovo can also help automate many of the manual tasks associated with deploying new machines, from asset tagging to custom image loading. Durable and flexible Like every ThinkStation before it, the P520 has undergone rigorous testing under extreme conditions. ISV-certified, it boasts error-correcting code memory, ensuring even greater accuracy and reliability. What's more, the front FLEX module gives you a range of options, including a media card reader, optical drives, and a variety of additional front access I/O ports. VR Ready With virtual reality (VR), almost anything's possible—from revolutionary designs to stunning special effects to highly complex simulations. With the powerful P520 and top-of-the range, high-performance NVIDIA Quadro® graphics (optional), a truly immersive VR experience awaits. A helping hand when you need it You’ll be able to keep your P520 running at its peak thanks to Lenovo PC Diagnostics. Available for both desktop and smartphone, this intelligent app can help you diagnose and troubleshoot potential system issues. Should your machine ever fail to boot, an error code for additional assistance will be sent wirelessly to your smartphone. In addition, there's Lenovo Performance Tuner. Free to download and easy to use, this software can help you fine tune your workstation to your specific software. Better for the planet—and your bottom line The P520 meets some of the world's most comprehensive environmental standards. A GREENGUARD®-certified workstation, it has also been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. And as a result of its energy efficiency, the P520 can even help lower your utility bills.



Specification:



Processor
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	QPI
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133,2400,2666 MHz
Thermal Design Power (TDP)	140 W
Tcase	65 °C
PCI Express configurations	1x16,1x4,1x8
Maximum number of PCI Express lanes	48
Memory bandwidth supported by processor (max)	85.3 GB/s
ECC supported by processor	Yes
Conflict-Free processor	Yes
Processor cache	8.25 MB
Processor frequency	3.6 GHz
Processor model	W-2133
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	3.9 GHz
Processor socket	LGA 2066 (Socket R4)
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel® Xeon®
Memory
ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	256 GB
Memory slots	8x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Quad-channel
Storage
Storage media	SSD
Optical drive type	DVD±RW
SSD interface	M.2
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Total storage capacity	512 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	8 GB
Discrete graphics adapter model	NVIDIA® Quadro® P4000
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	8
USB 2.0 ports quantity	2
PS/2 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Motherboard chipset	Intel® C422
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	33 L
Product colour	Black
Chassis type	Tower
Performance
Embedded options available	No
Password protection	Yes
Product type	Workstation
Motherboard chipset	Intel® C422
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Flex Memory Access	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Supported instruction sets	AVX,AVX 2.0,AVX-512,SSE4.2
Scalability	1S
Processor package size	45 x 52.5 mm
Processor code	SR3LL
Physical Address Extension (PAE)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	125040
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Physical Address Extension (PAE)	46 bit
Power
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	690 W
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Weight & dimensions
Volume	33 L
Width	6.5" (165 mm)
Depth	18.1" (460 mm)
Height	17.3" (440 mm)
Weight	52.9 lbs (24 kg)
Packaging content
Manual	Yes
Display included	No
Other features
Optical drives quantity	1
Processor manufacturer	Intel
