Description

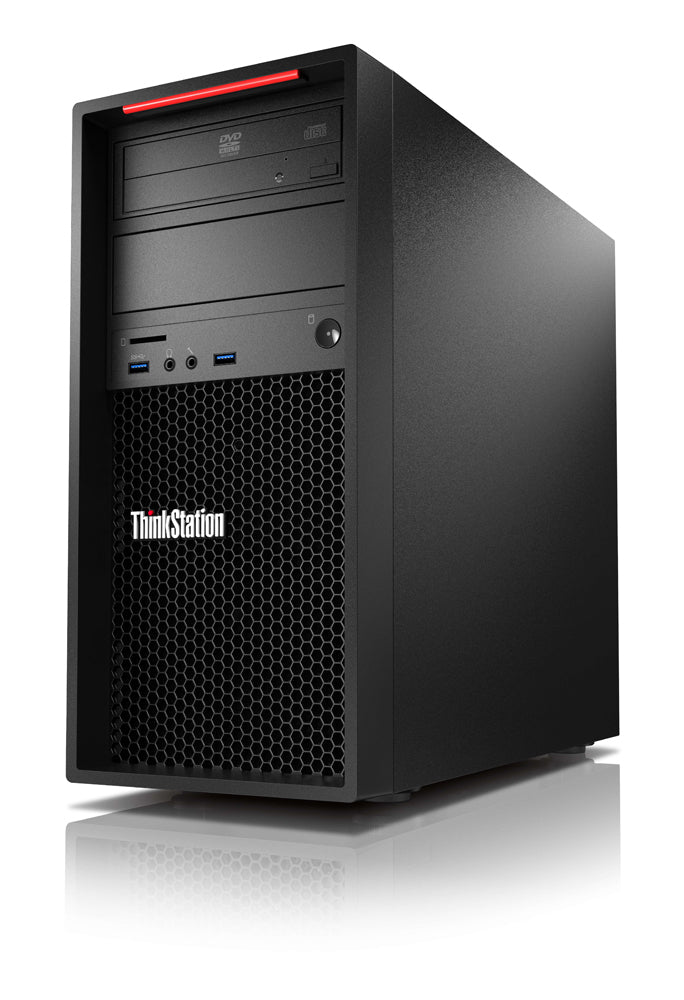

WORKSTATION PERFORMANCE. DESKTOP PRICE. Next-gen processing. Professional-grade graphics. Blazing-fast memory. Cutting-edge hard drive. The ThinkStation P320 tower workstation boasts all the key productivity features you need, and then some. As well as being reliable and stable, it's also energy efficient, VR-ready, and ISV-certified. What's more, it's totally configurable, scalable, and affordable. Designed to Perform When it comes to mission-critical systems and performance, you can count on the ThinkStation P320 small form factor. Featuring next-gen Intel® Core™ i and Xeon® processors, plus state-of-the-art NVIDIA® Quadro® graphics, this powerful workstation boasts the fastest storage technology on the market. As well as being VR-ready and scalable, the P320 can be configured to meet your business needs now—and in the future. Designed to be Uncomplicated From integrated handles to tool-less access, the P320 is designed to simplify life for everyone. Moving it around is easy, while upgrading hardware is a breeze. This 25L tower also has a range of customizable optional ports, including ultraslim optical drive, 29-in-1 media card reader, and Intel® Thunderbolt™ 3 ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts optional error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it's been awarded GREENGUARD® certification and it's so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.
Specification:
| Processor | |
|---|---|
| Processor generation | 6th gen Intel® Core™ i5 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,1333,1600,1866 MHz |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| Processor series | Intel Core i5-6500 Desktop series |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Processor cache type | Smart Cache |
| Conflict-Free processor | Yes |
| Processor cache | 6 MB |
| Processor frequency | 3.2 GHz |
| Processor model | i5-6500 |
| Processor manufacturer | Intel |
| Processor boost frequency | 3.6 GHz |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Processor cores | 4 |
| PCI Express slots version | 3.0 |
| Processor family | Intel Core i5 |
| Memory | |
| Non-ECC | Yes |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Storage | |
| Storage media | SSD |
| Optical drive type | DVD±RW |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | Yes |
| Total storage capacity | 256 GB |
| Graphics | |
| On-board graphics adapter dynamic frequency (max) | 1050 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter ID | 1912 |
| On-board graphics adapter | Yes |
| On-board graphics adapter model | Intel® HD Graphics 530 |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| PCI Express slots version | 3.0 |
| Technical details | |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Cable lock slot | Yes |
| Design | |
| Product colour | Black |
| Chassis type | SFF |
| Cable lock slot | Yes |
| Performance | |
| Embedded options available | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 7 Professional |
| Processor special features | |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Secure Key | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Cache | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Thermal solution specification | PCG 2015C |
| Supported instruction sets | SSE4.2,AVX 2.0,SSE4.1 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2BX |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Graphics & IMC lithography | 14 nm |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Processor ARK ID | 88184 |
| Intel 64 | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Power | |
| Power supply | 210 W |
| Weight & dimensions | |
| Width | 4.02" (102 mm) |
| Depth | 15.5" (394.5 mm) |
| Height | 13.3" (338 mm) |
| Weight | 17.4 lbs (7.9 kg) |
| Packaging content | |
| Display included | No |
| Other features | |
| On-board graphics adapter | Yes |
| Optical drives quantity | 1 |
| Processor manufacturer | Intel |
