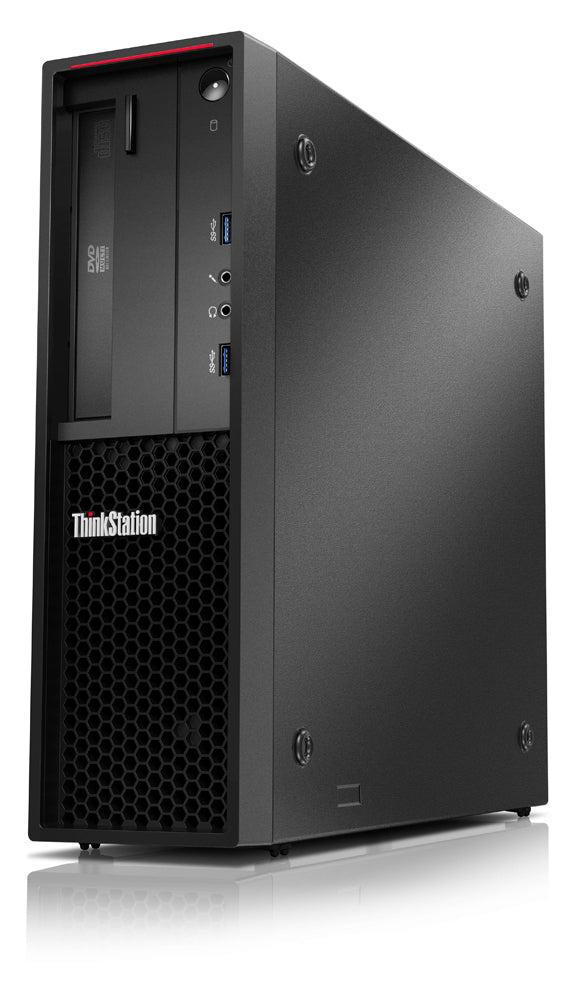

30BK002GUS - Lenovo THINKSTATION P320, INTEL E3-1240 V5 (3.50GHZ, 8MB), WINDOWS 7 PROFESSIONAL 64 PR

WORKSTATION POWER. DESKTOP PRICE. Next-gen processing. Professional-grade graphics. Blazing-fast memory. Cutting-edge hard drive. The compact ThinkStation P320 workstation boasts all the key productivity features you need, and then some. As well as being very reliable and stable, it's also energy efficient and ISV-certified. What's more, it's totally configurable, scalable, and affordable. Designed to Perform When it comes to mission-critical systems and performance, you can count on the ThinkStation P320 small form factor. Featuring powerful, next-gen Intel® Core™ i and Xeon® processors, plus state-of-the-art NVIDIA® Quadro® graphics, this compact, scalable workstation boasts the fastest storage technology on the market. What's more, the P320 can be configured to meet your business needs now—and in the future. Designed to be Uncomplicated From integrated handles to tool-less access, the ThinkStation P320 is designed to simplify life for everyone. Installing and moving it around is easy, while upgrading hardware is a breeze. This 12L space-saving form-factor also has a range of customizable ports, including ultraslim optical drive, 29-in-1 media card reader, and Intel® Thunderbolt™ 3 ports. With Built-in Peace of Mind Like every ThinkStation before it, the P320 has undergone rigorous, extreme testing. It has also been ISV-certified and boasts optional error-correcting code (ECC) memory, ensuring even greater accuracy and reliability. It's So Green, It Saves You Green With indoor air quality so closely tied to our health, you'll be pleased to know that the P320 meets some of the world's most comprehensive standards for chemical emissions. As a result, it has been awarded GREENGUARD® certification and is so energy efficient, it has been rated EPEAT Gold, ENERGY STAR 6.1, and up to 80 PLUS® Platinum PSU. So by helping the planet, the P320 can help to lower your bottom line too.



Specification:



Processor
Processor generation	7th gen Intel® Core™ i7
Stepping	B0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Kaby Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
ECC supported by processor	No
Memory voltage supported by processor	1.35 V
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	8 MB
Processor frequency	3.6 GHz
Processor model	i7-7700
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.2 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	8
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	64 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD
Number of HDDs installed	1
Optical drive type	DVD±RW
HDD capacity	1000 GB
HDD speed	7200 RPM
HDD interface	SATA III
HDD size	3.5"
Card reader integrated	Yes
Total storage capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	2 GB
On-board graphics adapter dynamic frequency (max)	1150 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x5912
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® Quadro® P600
On-board graphics adapter model	Intel® HD Graphics 630
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	2
Microphone in	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
Expansion slots
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel® C236
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	12.9 L
Product colour	Black
Chassis type	SFF
Placement supported	Horizontal/Vertical
Performance
Embedded options available	Yes
Audio chip	Realtek ALC662
Product type	Workstation
Motherboard chipset	Intel® C236
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR338
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	97128
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	210 W
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	12.9 L
Width	4.02" (102 mm)
Depth	15.5" (394.5 mm)
Height	13.3" (338 mm)
Weight	17.4 lbs (7.9 kg)
Packaging content
Manual	Yes
Display included	No
Other features
On-board graphics adapter	Yes
Optical drives quantity	1
Processor manufacturer	Intel
