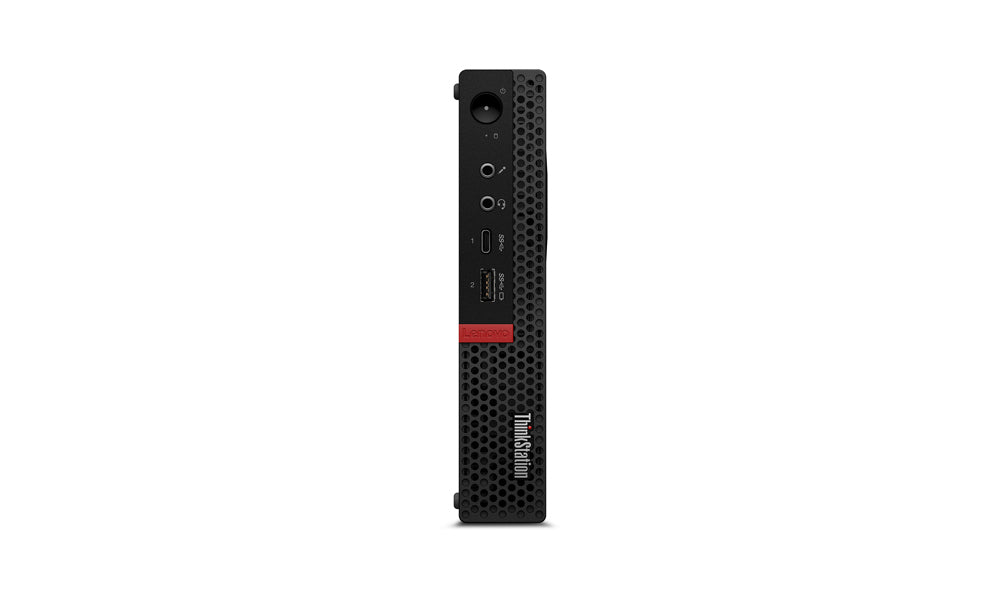

30CF000DUS - Lenovo WORKSTATION TS P330 E2176G W10WS

IT departments can expect more The ThinkStation P330 Tiny workstation delivers the performance and speed to power through tasks—with up to 6 cores per CPU, 8th Gen Intel® Core™ processing combines with blazing-fast memory and dual M.2 storage support. Plus, the ThinkStation P330 Tiny is primed for security with data encryption through TPM and a door to internal components that physically locks. Adaptable by design The ThinkStation P330 Tiny workstation fits just about anywhere and can be positioned horizontally or vertically. Mount it on a wall, behind a monitor, or under a desk. You can even keep this tiny workstation on a bookshelf, as this 1-liter device goes wherever you want it to. Let your eyes run wild With NVIDIA® Quadro® P620 graphics, this workstation supports up to six independent displays. You can use these professional graphics and rest assured that with Independent Software Vendor (ISV) certifications, your biggest challenge may just be which monitor to watch. The ThinkStation P330 Tiny includes ISV certification from all the major vendors like Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®. Performance efficiency made simple With the Lenovo Performance Tuner, it’s a cinch to get the most out of your Think-Station P330 Tiny. Simply download the free software, and choose a focus area: Processor Affinity, which lets you designate an app to run on specific cores, Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. There’s a tutorial to help get you started and the interface is highly intuitive. What are you waiting for? The ThinkStation P330 Tiny includes optional Intel® Optane™ memory for a faster, smoother, and amazingly more responsive PC experience. Working in tandem with your hard drive, it can recognize the way you work and create. As a result, everything’s accelerated from everyday computing and opening media-rich files to loading high-performance datasets and professional ISV applications.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i7
Stepping	U0
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	35 W
PCI Express configurations	1x16,1x8+2x4,2x8
Maximum number of PCI Express lanes	16
Configurable TDP-down	25 W
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.9 GHz
Conflict-Free processor	Yes
Processor cache	12 MB
Processor frequency	2.4 GHz
Processor model	i7-8700T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel Core i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Optical drive type	No
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	4 GB
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x3E92
On-board graphics adapter family	Intel® UHD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® Quadro® P1000
On-board graphics adapter model	Intel® UHD Graphics 630
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.0
Wi-Fi standards	802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	1
On/off button	Yes
Expansion slots
PCI Express slots version	3.0
Technical details
Water cooling system	No
Intel 64	Yes
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Motherboard chipset	Intel Q370
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	1 L
Water cooling system	No
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Performance
Embedded options available	Yes
Audio chip	Realtek ALC233
Market positioning	Business
Password protection	Yes
Password protection type	Power on
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel Q370
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015A
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR3WX
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	129948
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	135 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Certificates
Certification	GREENGUARD.
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	1 L
Width	1.44" (36.5 mm)
Depth	7.2" (182.9 mm)
Height	7.05" (179 mm)
Weight	3.09 lbs (1.4 kg)
Packaging content
Manual	Yes
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics adapter	Yes
Processor manufacturer	Intel
