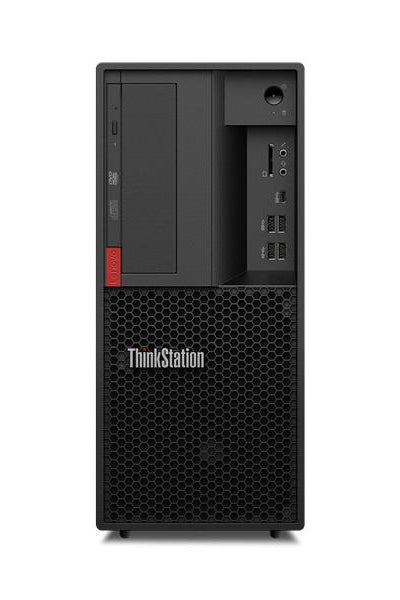

30CY007GUS - Lenovo P330,W10P,I3,16GB,512GB,3YR

The P330 Tower workstation delivers performance and speed to power through tasks. The latest-gen Intel® Core™ vPro or Xeon® CPUs and Optane™ memory combines with direct M.2 storage support on the motherboard for blazing speed and responsiveness. Plus, this workstation is primed for security with data encryption through TPM and a door to internal components that physically locks. The cheetah of workstations Designed for acceleration, the ThinkStation P330 Tower delivers mind-blowing speeds of up to 5 GHz, with the latest generation of Intel® Xeon® or Intel Core™ vPro processors boasting up to 8 cores per CPU. Combined with Intel Optane™ memory and ISV certifications, this workstation is speedy. Certified VR-ready Supporting up to NVIDIA® Quadro RTX™ 4000 graphics, the P330 Tower is certified VR-ready by NVIDIA. This entry-level system lets you create virtual reality content at a low cost. Additionally, this workstation includes ISV certification from all the major vendors including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®. Performance efficiency made simple With the Lenovo Performance Tuner, it’s a cinch to get the most out of your ThinkStation P330 Tower. Simply download the free software, and choose a focus area: Processor Affinity (which lets you designate an app to run on specific cores), Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. There’s a tutorial to help get you started and the interface is highly intuitive. What are you waiting for? The ThinkStation P330 Tower includes Intel® Optane™ memory, for a faster, smoother, and more responsive PC experience. Working in tandem with your hard drive, it can recognize the way you work and create. As a result, everything’s accelerated from everyday computing and opening media-rich files to loading high-performance datasets and professional ISV applications. We'll come to you Should your ThinkStation P330 Tower ever require maintenance, you can rest assured with the standard 3-year warranty with on-site support.



Specification:



Processor
Processor generation	8th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	65 W
Processor series	Intel Core i7-8700 Desktop Series
PCI Express configurations	1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	41.6 GB/s
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	12 MB
Processor frequency	3.2 GHz
Processor model	i7-8700
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.6 GHz
System bus rate	8 GT/s
Processor socket	LGA 1151 (Socket H4)
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory upgrade note	Additional memory sold separately
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Storage
Storage media	SSD
RAID support	Yes
Optical drive type	DVD±RW
SSD interface	NVMe, PCI Express
SSD capacity	512 GB
RAID levels	0, 1, 5, 10
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
Number of execution units	24
On-board graphics card ID	0x3E92
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® UHD Graphics 630
Optical drive
Optical drive type	DVD±RW
Optical drives quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
Serial ports quantity	1
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	3
On/off button	Yes
M.2 card slot (storage)	3
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI Express slots version	3.0
Technical details
Number of 2.5" bays	1
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Product colour	Black
Chassis type	Tower
Audio system	High Definition Audio
Placement supported	Vertical
Number of 5.25" bays	1
Number of 3.5" bays	2
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Xeon®
Cable lock slot	Yes
Motherboard chipset	Intel C246
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Design
Volume	18 L
Number of 2.5" bays	1
Cable lock slot type	Kensington
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Number of 5.25" bays	1
Number of 3.5" bays	2
Cable lock slot	Yes
Performance
Embedded options available	Yes
Audio chip	Realtek ALC233
Market positioning	Business
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Xeon®
Motherboard chipset	Intel C246
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Processor special features
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal solution specification	PCG 2015C
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR3QS
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	126686
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Power
80 PLUS certification	80 PLUS Platinum
Power supply input frequency	50 - 60 Hz
Power supply input voltage	100 - 240 V
Power supply	250 W
Operational conditions
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	30 - 90%
Storage relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Volume	18 L
Width	6.5" (165 mm)
Depth	12.9" (328 mm)
Height	14.8" (376 mm)
Weight	28.2 lbs (12.8 kg)
Packaging content
Manual	Yes
Mouse included	Yes
Display included	No
Keyboard included	Yes
Power cord included	Yes
Mouse included on selected markets only	Yes
Keyboard included on selected markets only	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Optical drives quantity	1
Processor manufacturer	Intel
