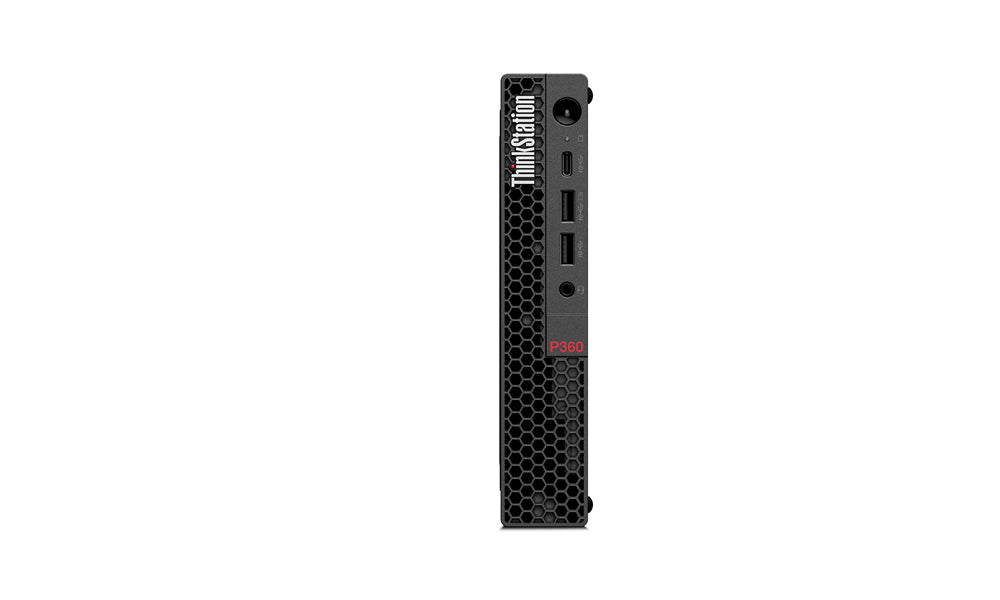

30FA001AUS - Lenovo P360 TINY,W11P,I7,32GB,1TB,INTEL UHD GRAPHICS 770,3YR

Maximized visuals & maximum performance The ThinkStation P360 Tiny workstation supports up to 6 independent displays, especially ideal for architecture, engineering, and finance—industries that benefit from expanded screen real estate. Powered by 12th Gen Intel Core processors and a choice of several NVIDIA professional graphics, including the T1000 with 8GB of onboard VRAM, this workstation takes performance to new levels. Powerful configurations With support for up to 4TB of M.2 PCIe Gen 4 NVMe storage and configurations with up to 64GB of speedy 4800MHz DDR5 memory, the P360 Tiny ensures that your work can be completed quickly, efficiently stored, and immediately accessed without interruption or lag. What’s more, with 7 USB ports and support for numerous accessories, this workstation packs an amazingly powerful punch. Compact enough to tuck away—or take with you Designed for flexibility, the ThinkStation P360 Tiny workstation easily fits on a bookshelf, on a desk, or even tucked away behind your monitor. This compact system boasts support for a wide range of enclosures and mounts to maximize your location options. And with its small size, you can even take it with you for a powerful on-the-go desktop between work and home. Backed by ISV certifications Like all of our ThinkStation workstations, the P360 Tiny includes ISV-certifications—which means you can trust that your applications are tuned to run seamlessly on your most complex tasks. Reliable & secure—even in the toughest of environments The ThinkStation P360 Tiny workstation is engineered for durability. It passes more than 200 quality checks and 18 MIL-SPEC STD-810G tests to ensure it runs in the harshest conditions—allowing you to deploy anywhere. It’s also protected by our ThinkShield security suite—a combination of hardware and software that work together to safeguard both your device and your data. Flexible lifecycle management solutions Designed to free up time and capital, it combines devices, service support, and software into fixed monthly payments. And by taking care of lifecycle management, it enables your IT resources to focus on what they do best.



Specification:



Processor
Processor generation	12th gen Intel® Core™ i7
Bus type	DMI4
Processor cache	25 MB
Processor model	i7-12700T
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.7 GHz
Processor cores	12
Processor family	Intel® Core™ i7
Memory
Non-ECC	Yes
Internal memory	32 GB
Maximum internal memory	64 GB
Memory slots	2x SO-DIMM
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	No
SSD interface	NVMe, PCI Express 4.0
SSD capacity	1000 GB
Number of SSDs installed	1
Card reader integrated	No
Total storage capacity	1000 GB
SSD form factor	M.2
Total SSDs capacity	1000 GB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	8 GB
Graphics card Mini DisplayPort ports quantity	4
On-board graphics card	Yes
Discrete graphics card model	NVIDIA Quadro T1000
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel UHD Graphics 770
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	1000,100 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
DisplayPort version	1.4
Technical details
Intel 64	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	mini PC
Audio system	High Definition Audio
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Motherboard chipset	Intel Q670
Design
Volume	1 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	mini PC
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Performance
Embedded options available	No
Audio chip	Realtek ALC256-VB
Password protection	Yes
Password protection type	BIOS, Power on, Supervisor, HDD
Product type	Mini PC
Trusted Platform Module (TPM)	Yes
Audio system	High Definition Audio
Motherboard chipset	Intel Q670
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel 64	Yes
Power
Power supply input voltage	100 - 240 V
Power supply	230 W
Operational conditions
Operating altitude	0 - 120000" (0 - 3048 m)
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	0 - 480000" (0 - 12192 m)
Certificates
Certification	EPEAT™ Gold ENERGY STAR® 8.0 ErP Lot 3 TCO Certified 9.0 RoHS MIL-STD-810H ISV
Weight & dimensions
Volume	1 L
Width	7.05" (179 mm)
Depth	7.2" (182.9 mm)
Height	1.46" (37 mm)
Weight	3.09 lbs (1.4 kg)
Packaging content
Mouse included	Yes
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
