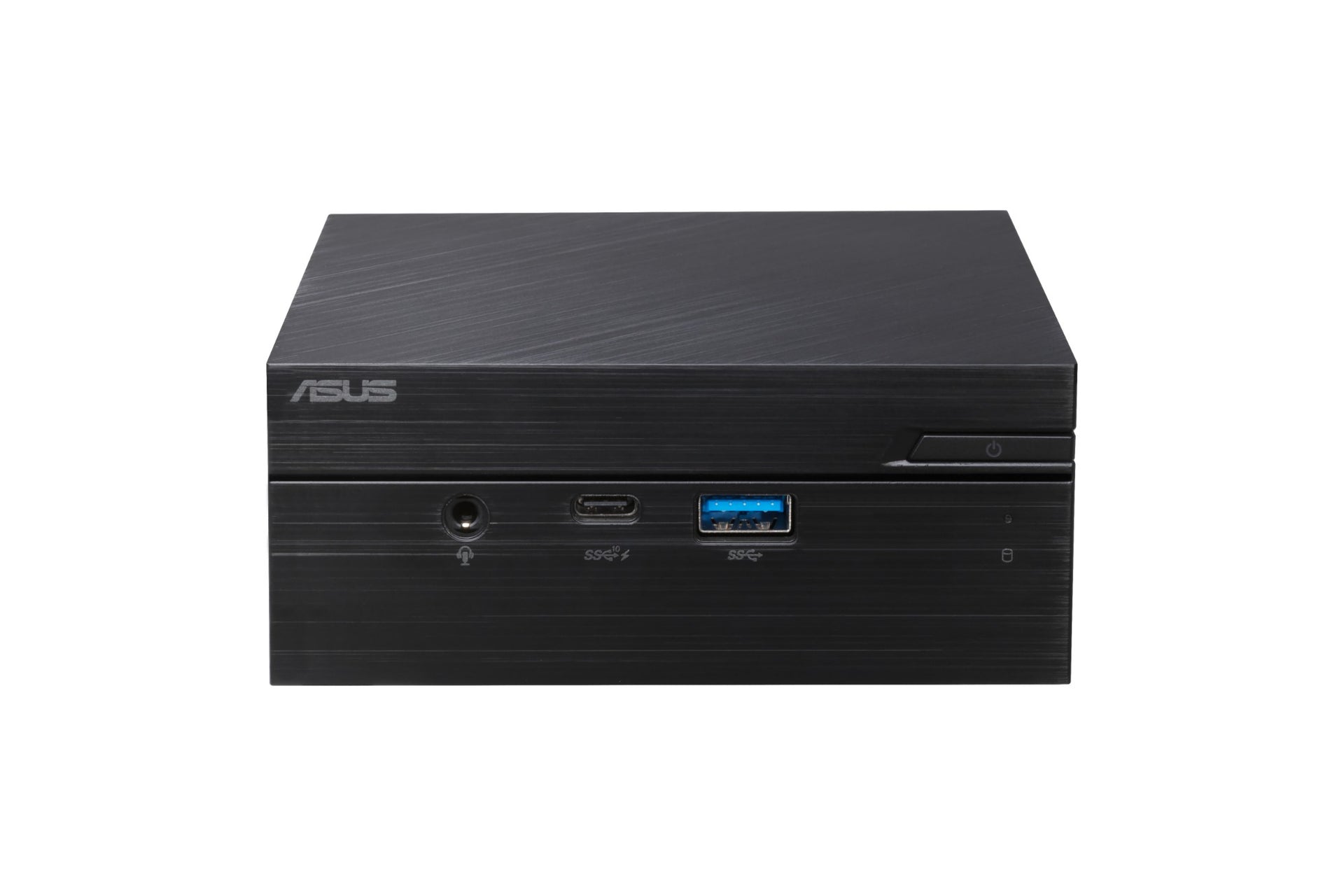

PN41-BBF5000ATD - ASUS PN41 MINI PC BAREBONE

Easy modification, maximum possibilities ASUS Mini PC PN41 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Gen Intel® Pentium® Silver or Celeron® mobile processor with Intel UHD Graphics, plus support for high-speed 2933 MHz DDR4 memory, Mini PC PN41 is ready for everyday multitask computing, yet its diminutive size makes it well-suited for applications where traditional PCs won’t fit – from digital signage to small home-office setups. Performance ASUS Mini PC PN41 is powered by the latest 11 Gen Intel® Pentium® Silver or Celeron® mobile processor. Compared with traditional same-tier mobile processors, these Intel mobile processors deliver performance improvements of up to 36.45% for single-thread computing, up to 31.8% for multi-thread computing, and up to a 32% lift for the entire system – ensuring smooth operations for everything you do. Powerful graphics ASUS Mini PC PN41 delivers class-leading graphics performance with Integrated Intel UHD Graphics. In fact, compared to previous-generation mobile processors, PN41’s graphics performance in 3DMark11 v1.0.132 has increased by over 90% — and by an impressive 120% in 3D Mark Fire Strike. Hyper-fast 2.5 Gbps networking ASUS Mini PC PN41 is engineered with onboard networking that runs at up to 2.5 Gbps – or 2.5X faster than even gigabit Ethernet. This hyper-fast LAN support provides seriously speedy networking that makes everyday tasks smoother and more efficient. Power Delivery input With support for USB Power Delivery input, PN41 can receive power from a supported display or other device via a cable, eliminating the need for separate power adapters to keep your workspace uncluttered. * Power Delivery input support requires a power supply with an output capability of at least 65 watts. Triple-display support ASUS Mini PC PN41 supports up to three displays with 4K UHD resolution through HDMI, DisplayPort over USB-C and a user-configurable port*, extending your workspace across multiple monitors for more efficient and comfortable productivity experiences. * Configurable ports must be specified during the order process. * Configurable VGA port does not support 4K or higher resolutions. Diverse applications With support for up to three displays and a fanless design, ASUS Mini PC PN41 is versatile enough for all sorts of commercial applications – from digital signage in shops, exhibition halls and retail stores, to interactive kiosks, home working and online learning. PN41 is also compact and powerful, making it the perfect choice for conference rooms and offices, including home working, or even for remote learning. With built-in Power Delivery input and onboard 2.5 Gbps Ethernet, PN41 makes setup and communication swift, smooth and efficient. Modern, space-saving chassis With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN41 easily blends into home, office and retail environments. Compact and lightweight at 115 x 115 x 49 mm, and with a mere 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution. Fanless chassis and a dedicated SSD heatsink ASUS Mini PC PN41 has a fanless design to support a 6-watt CPU, so it’s ideal for industrial applications where reliability, durability and low noise levels are paramount. It also has a dedicated heatsink to cool the SSD, keeping the average temperature of the drive at a mere 50° C. *Testing configuration: Intel® Pentium® Silver N6000 processor, DDR4 2933 MHz 32 GB RAM and 512 GB M.2 SSD. High-speed connectivity and legacy support ASUS Mini PC PN41 provides comprehensive connectivity with multiple ports, including a USB 3.2 Gen 2 Type-C port with DisplayPort 1.4 support and a configurable port* to support legacy devices, additional displays or multiple network connections. PN41 also provides Power Delivery input for setup simplicity and easier cable management. The configurable port offers the option of VGA, DisplayPort, COM or LAN connectivity, making it ideal for a variety of monitor types or legacy devices* – from barcode scanners to receipt printers. With such port versatility, PN41 is perfect for a wide range of business scenarios, including signage, point-of-sale (POS) systems and intelligent vending machines. * Configurable port options may vary by model or region. Seamless media experience ASUS Mini PC PN41 supports HDMI® CEC and has a built-in IR sensor, allowing you to manage almost all your media devices, from audio and video playback to menu navigation, via a single remote control. PN41 also sets the standard for the best Windows 10 experience, with a dual-microphone array that supports Microsoft Cortana – the personal digital assistant that helps you get things done easily. The array mic ensures accurate voice control, even in noisy conditions. Reactive cooling To ensure stable performance, ASUS Mini PN41** has dedicated thermal monitoring for the SSD. It also has numerous preset cooling policies to cater to a diverse variety of scenarios. *Testing performed on ASUS Mini PC PN62, without SSD Heatsink. **Only supported on with fan SKU. Reduce environmental impact while lowering operating costs ASUS Mini PC PN41 has an energy-efficient design that reduces environmental impact while helping to lower operating costs. Eco-friendly ASUS Mini PCs are recipients of some of the industry's highest environmental certifications, including ENERGY STAR®. Specifically, PN41 consumes as little as 3.69 watts at idle. It is also whisper-quiet, with the fan-cooled model generating just 34.1 dB(A) at full load. Its fanless sibling generates a mere 23.5 dB(A) at full load. ASUS Business Manager The ASUS Business Manager software suite provides exclusive features for Mini PC PN41. Designed for businesses that lack adequate IT support, it simplifies the processes of management and maintenance. USB port management and administration security ASUS Mini PC PN41 offers UEFI-level management of USB ports, so they’re easy to selectively enable or disable. An admin password can also be applied to ensure that only authorized users are able to access the system’s security settings. Corporate Stable Model (CSM) The ASUS Corporate Stable Model (CSM) program is an initiative designed to provide businesses with stable product supply and enhanced aftersales support. Each CSM mini PC purchase entitles the customer to the ASUS Control Center IT-management software suite (CSM Edition, a $60 value)* that provides comprehensive control and monitoring. ASUS CSM products also include a stable roadmap and assured 36-month supply availability to ensure customers need not worry about material-supply gaps or extended supply. * Program offerings may vary by region. Please consult your local sales representative for more information. Thoroughly tested ASUS Mini PCs undergo rigorous noise, vibration, drop and thermal-shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. You can rest assured that your ASUS Mini PC can cope with extreme conditions for extended periods, ranging from dry -40° C temperatures to humid and hot environments exceeding 60° C.



Specification:



Processor
Built-in processor	Yes
Processor model	N5100
Processor boost frequency	2.8 GHz
Processor threads	4
Processor frequency	1.1 GHz
Processor cores	4
Processor family	Intel® Celeron®
Processor manufacturer	Intel
CPU configuration (max)	1
Processor cache	4 MB
Memory
Memory slots type	SO-DIMM
Number of memory slots	1
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	3200 MHz
Video
On-board graphics card	No
Graphics card family	Intel
Storage
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5,M.2
Storage drive interface	M.2, Serial ATA
Number of storage drives supported	1
Card reader integrated	Yes
SSD form factor	M.2
Graphics
Maximum resolution	4096 x 2160 pixels
Number of displays supported	3
On-board graphics card	No
Graphics card family	Intel
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	No
Audio chip	Realtek ALC3236-VB2
Network
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth version	5.0
Bluetooth	Yes
Ethernet LAN	Yes
Wi-Fi	Yes
LAN controller	Realtek RTL8125B-CG
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ports & interfaces
Consumer infrared headers	Yes
Combo headphone/mic port	Yes
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Design
Product type	Mini PC barebone
Cable lock slot type	Kensington
Cable lock slot	Yes
On/off switch	Yes
Cooling type	Active
Product colour	Black
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Performance
Maximum resolution	4096 x 2160 pixels
Windows operating systems supported	Windows 10
Number of displays supported	3
Audio chip	Realtek ALC3236-VB2
Consumer infrared Rx sensor	Yes
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Trusted Execution Technology	No
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Colour
Product colour	Black
Technical details
Cable lock slot type	Kensington
Cable lock slot	Yes
Processor cores	4
Cooling type	Active
Management features
On/off switch	Yes
Features
Number of displays supported	3
Power
AC adapter output voltage	19 V
AC adapter output current	3.42 A
Power supply type	External AC adapter
Power supply	65 W
Certificates
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Weight & dimensions
Width	4.53" (115 mm)
Depth	4.53" (115 mm)
Height	1.93" (49 mm)
Weight	24.7 oz (700 g)
Packaging content
Display included	No
